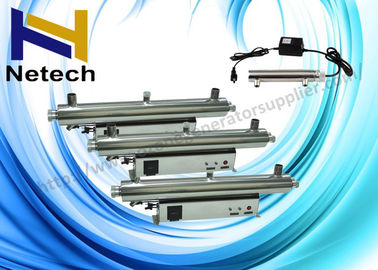

Drinking Water 304 Stainless Steel 40W UV Lamp Water cleanr For O3 Generator

Drinking Water 304 Stainless Steel 40W UV Lamp Water cleanr For O3 Generator

  • High Light

    ozone generator swimming pool

    ,

    ozone generator water treatment swimming pools

  • Lamp Cover Material
    304 Or 316l Stainless Steel
  • Sterilizing Rate
    99.99%
  • Water Flow Rate
    0.1-500 Ton/hr
  • Standard
    America NSF55 Standard And CJ/T204-2000
  • Lamp Tube
    America Hanovia Lamp Tube
  • Max Pressure
    0.8MPA
  • Place of Origin
    China(guangzhou)
  • Brand Name
    Netech
  • Model Number
    NT-UV
  • Minimum Order Quantity
    1 set
  • Price
    For further discussion
  • Packaging Details
    Carton
  • Delivery Time
    3-5 working days after received your payment
  • Payment Terms
    D/P, L/C, D/A, T/T, Western Union
  • Supply Ability
    1000 sets/month

Drinking Water 304 Stainless Steel 40W UV Lamp Water cleanr For O3 Generator

Drinking Water 304 Stainless Steel 40W UV Lamp Water cleanr For O3 Generator





Features:

*Water flow rate: 0.1-500 ton/hr which can meet with different water capacities.

*Warranty: 10 years warranty for stainless steel housing, other components are 1 year.

*Material: Use SS304 or SS316L material for reaction chamber, combined with full-automatic welding. All connections are smoothly without any corner;

*Chamber: Internal & external polishing mirror chamber with high brightness for greatly improved UV intensity and clean effect.

*Thickness: The thickening design of chamber which is strictly tested air & water pressure before shipping. It can withstand 0.8 Mpa, and fully prevents from water leakage.

*Lamp: Use imported low-pressure but high-strength mercury lamp, which has 9000-13000 hrs service life(Max); assorted with high-efficiency electron ballast, it improves product service life and effect, so that the sterilizing rate up to 99.99%.



Specifications:



Model

Water flow

(T/Hr)

Power

(W)

Size

(mm)

Water Input & Ouput Size

Max Pressure

(Mpa)

NT-UV005G

0.1

8

250×48×65

1/4″

0.8

NT-UV01G

0.2

10

295×60×80

1/4″

NT-UV02G

0.5

14

370×60×80

1/2″

NT-UV04G

1

17

450×73×110

1/2″

NT-UV06G

1.3

23

520×73×110

3/4″

NT-UV08G

1.8

28

650×73×110

3/4″

NT-UV12G

2.7

40

950×73×110

1″



                                                                          NT-UV3~30T



Model

Water flow

(T/Hr)

Power

(W)

Size

(mm)

Water Input & Ouput Size

Max Pressure

(Mpa)

NT-UV3T

3

40×1

950×125×250

1″

0.8

NT-UV5T

5

40×2

950×138×280

1.2″

NT-UV8T

8

40×3

950×170×310

1.5″

NT-UV12T

12

40×4

950×195×335

2″

NT-UV15T

15

40×5

950×195×335

2″

NT-UV20T

20

80×3

950×205×405

2.5″

NT-UV25T

25

80×4

950×275×465

2.5″

NT-UV30T

30

120×3

1250×275×545

3″



What is an UV water cleanr?



The UV water cleanr is a water filtration device that uses an ultraviolet light bulb to kill microscopic organisms that are free floating in the water. Parasites, viruses, algae and bacteria (good and bad) are the type of things that are "killed" after passing through the ultraviolet sterilizing unit. UV cleanr devices can be used on swimming pools, in liquid factories (think beer) and in the home aquarium using an aquarium UV cleanr. Some large water purification centers employ some sort of UV clean on the outgoing water. These cleanr units are also sometimes used in outdoor ponds to help control algae growth and they seem to do a decent job.

When using a UV cleanr in a home aquarium, the UV unit should be placed last in the filtration line. You want to first filter the aquarium water through your mechanical filter and then run the water through the UV device before returning the water to your fish tank. By first removing the solids in the aquarium water with your mechanical filter (canister filter, etc), you are helping your UV unit to attain maximum operational efficiency.



Drinking Water 304 Stainless Steel 40W UV Lamp Water cleanr For O3 Generator 0

Why choosing us?



1.Having 10 years production experienced .We are trusty business partner.

2.Quality Controlled:Quality Control personnel check the quality at every

stage of production, from the incoming raw materials to the finished product.

3.NT-UV Production Capacity: 1000 pcs per month.

4.We have serial products: ozone tube ,UV water cleanrs, ozone generators,

oxygen concentrators, protein skimmers, and filters, mixing pumps and other water

or air treatment spare parts.

5.We supply OEM service according to customers' requests and give out

professional suggestions.



Distributors Offer : Welcome to be our distributor .

Drinking Water 304 Stainless Steel 40W UV Lamp Water cleanr For O3 Generator 1
