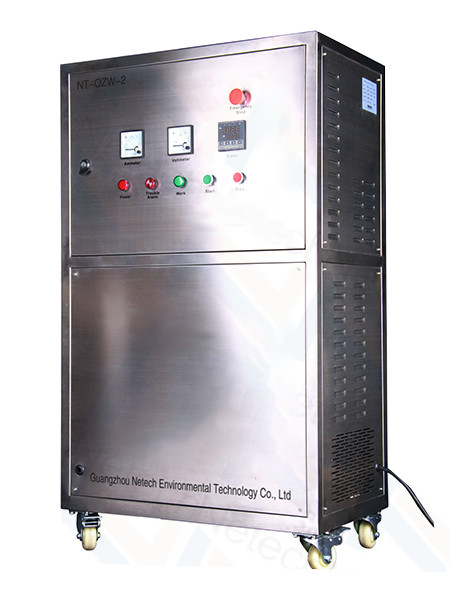

110V 1800liter 2400liter/hr Ozone Water Generator For Water Bottling Treatment
Like many industrial plants, water bottling companies prefer to use Ozone Treatment in their cleanion process to meet strict hygiene standards. Its applications range from sterlizing water, machineries, and bottles to the air above the water and bottle sealing caps, thus preventing any possible contamination during the bottling process.
Applications:
1.Slaughtering It can be used to remove smell of slaughtering and kill bacteria and clean production water supply.
2.Poultry factory It can be used for removing smell of poultry factory and kill bacteria, cleaning water for poultry feeding.
3.Swimming pool and SPA It can be used for pool or spa water clean and cleanion.
4.Sewerage water treatment It can be used for effectively destroy bacteria and in the processing of water laden with concentrations of industrial byproducts.
5.Aquaculture and aquarium water clean it can be used to achieve water quality improvements by micro flocculating fine particulate matter (making particles that are easier to settle or filter) and oxidizing non biodegradable organic molecules (creating smaller and more biodegradable molecules), nitrite, and refractory organic molecules (reducing water color) in Fresh water & Seafood cultivating factory;
6.Fresh water & Seawater hatcheries; Ocean polis, aquarium, aquaculture, fishing farm.
7.Ozone laundry system for Washing machine it can be used to reduce all bacteria and viruses that may be on any linens, wiping cloths, or clothing; reduce the cross contamination of illness in nursing home and hospital facilities
Benefits:
Effectively cleans bottled water from all bacteria because of its high oxidation level
Reduces overall operating and production costs
Cuts down sulfur odors
Eliminates the need for hazardous storage and handling because it is generated on-site
Works faster than any other oxidant in the market
It’s not harmful to the environment
Treats the bottled water precipitating heavy metals such as iron and manganese
Clean In Place (CIP) for bottling equipment
Residual ozone decomposes to oxygen
Features:
| High pure ceramic ozone tube: | Long use life, high ozone concentration, low temperature, continuous working |
| High frequency and high pressure ozone power board: | Adjustable frequency, adjustable width and audible alarm. It will not damage the power board if circuit break or short circuit. |
| Oil free air compressor: | Offer clean air source |
| Air dryer: | Offer clean and dry air source |
| PSA high pure oxygen sieve: | Offer oxygen purity:93% |
| Stainless steel high efficiency gas liquid mixing pump: | The pump sucks the liquid and air, then mix them. The micro air bubble of gas-liquid dissolving effect is good |
| Stainless steel high efficiency static mixer: | Improve dissolved effect is more than three times |
| Stainless steel anti water return equipment: | It can prevent water return back to machine |
| Water level sensor: | Prevent the equipment running without water or lack of water |
| Alarm device: | Humanized remind users equipment anomalies |
Specification:
| Item | Unit | Model |
| CH-WCZ-2 | ||
| Working Voltage | V/HZ | 220V/50/60HZ |
| Operating Power | W | 1800W |
| Dissolved ozone concentration in water | PPM | 4-15 |
| Rated Water flow | L/hr | 1800~2400Lilter per hour |
| Ambient temperature | ℃ | 3-40℃ |
| Ambient Humidity | % | ≤70% |
| Mixing pressure | Mpa | 0.25-0.4Mpa |
| Water Output Pressure | Mpa | 0.05-0.2Mpa |
| Diameter of input water pipe | inch | 1" |
| Diameter of output water pipe | inch | 34" |
| Weight | KG | 113 |
| Dimension | mm | 750×450×1300mm |
Noted: Net weight will be 10% different for different plup.
