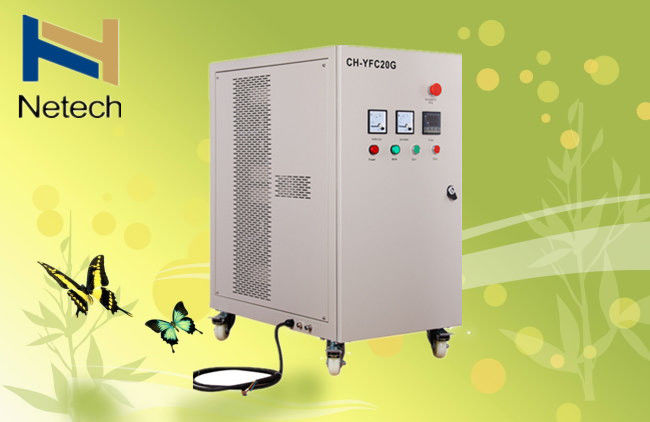

Ozone Wastewater Treatment Ozone Generator
1. With built-in oxygen system
2. With built-in enamel tube
3. Water cooling
4. Adjustable plug
Features:
1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator
2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
3. Adjustable ozone range: 20%--100%, it can working automatic
4. Compact assembly,Movable with Wheels
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Control panel:
Ozone output adjuster, Voltmeter, Ammeter, Timer, Cooling water temperature indicator, Ozone Ammeter, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm
|
Item |
Unit |
NT-Y40G |
NT-Y50G |
NT-Y100G |
|
Oxygen flow rate |
LPM |
5~15 |
8~18 |
16-32 |
|
Ozone concentration |
Mg/L |
90~56 |
90~60 |
90~58 |
|
Ozone output |
G/Hr |
27~50 |
43~64 |
86~111 |
|
Power |
Kw |
≤1.62 |
≤1.85 |
3.5 |
|
Fuse |
A |
15 |
20 |
20 |
|
Cooling water flow |
LPM |
48 |
||
|
Size |
mm |
650×1030×1230 |
650×1030×1230 |
|
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug
