oxygen concentration oil-free air compressor
Small Air Compressor
Item | Unit | Model | |||
CH-P-1 | CH -P-4 | CH -P-10 | CH -P-15 | ||
Air flow rate | LPM | 1 | 3.8 | 10 | 15 |
Air pressure | kpa | 11 | 14.2 | 15 | 17.8 |
Power Supply | V/HZ | 220v/ 50HZ | |||
Power | W | 1.2 | 2.50 | 3.70 | 5.00 |
Dimension | mm | 55×40×25 | 70×35×35 | 85×55×35 | 105×65×50 |
Net weight | G | 36 | 90 | 160 | 280 |
Air Compressor
Features:
1. Silent operation
2. Stable air output
Item | Unit | Model | ||||
ACO-208 | ACO-308 | ACO-318 | ACO-328 | ACO-388D | ||
Air flow rate | LPM | 45 | 55 | 70 | 82 | 90 |
Input Power | W | 25 | 30 | 45 | 60 | 70 |
Voltage | V | 110/220 | ||||
Frequency | Hz | 50 | ||||
Pressure | Mpa | >0.015 | >0.025 | >0.025 | >0.035 | >0.035 |
Noise | Db | <60 | ||||
Net weight | Kg | 0.84 | 1.09 | 1.43 | 1.90 | 2.70 |
Size | mm | 150×75×75 | 160×75×75 | 175×90×90 | 195×100×100 | 200×115×150 |

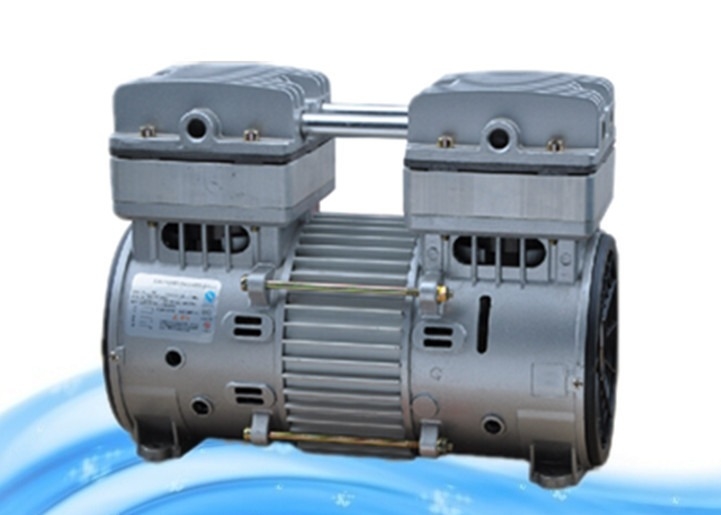

Item | Unit | Model | ||||
CH ZW280 | CH ZW400 | CH ZW500 | CH ZW700 | CH ZW1100 | ||
Air flow rate | LPM | 53.3@206.8KPa | 90@206.8Kpa | 40@700KPa | 60@700KPa | 103@800KPa |
Input Power | W | 300 | 480 | 545 | 840 | ≤1250 |
Working pressure | Kpa | 206.8 | 206.8 | 400 | 700 | 800 |
Max pressure | Kpa | 300 | 300 | 800 | 800 | 900 |
Operating ambient temperature | ℃ | 5-40 | 10-40 | 5-40 | 5-40 | 5-40 |
Cold insulation resistance | MΩ | ≥100 | ||||
Thermal protectors | / | automatic reset 135±5 | automatic reset 145±5 | automatic reset 135±5 | automatic reset 145±5 | automatic reset 160±5 |
Voltage strength resistance | V/Hz | 1500/50 1min No breakdown | ||||
Installation size | mm | 83×147 | 203.2×88.9 | 223.2×88.9 | 223.2×88.9 | 246×127 |
Install foot thread 4-M6 | ||||||
Noise | Db | ≤59 | ≤66 | ≤66 | ≤68 | ≤66 |
Net weight | Kg | 5.75 | 7.94 | 7.2 | 8.3 | 15 |
Size | mm | 235×120×160 | 250×130×200 | 270×130×200 | 270×125×215 | 319×195×290 |
