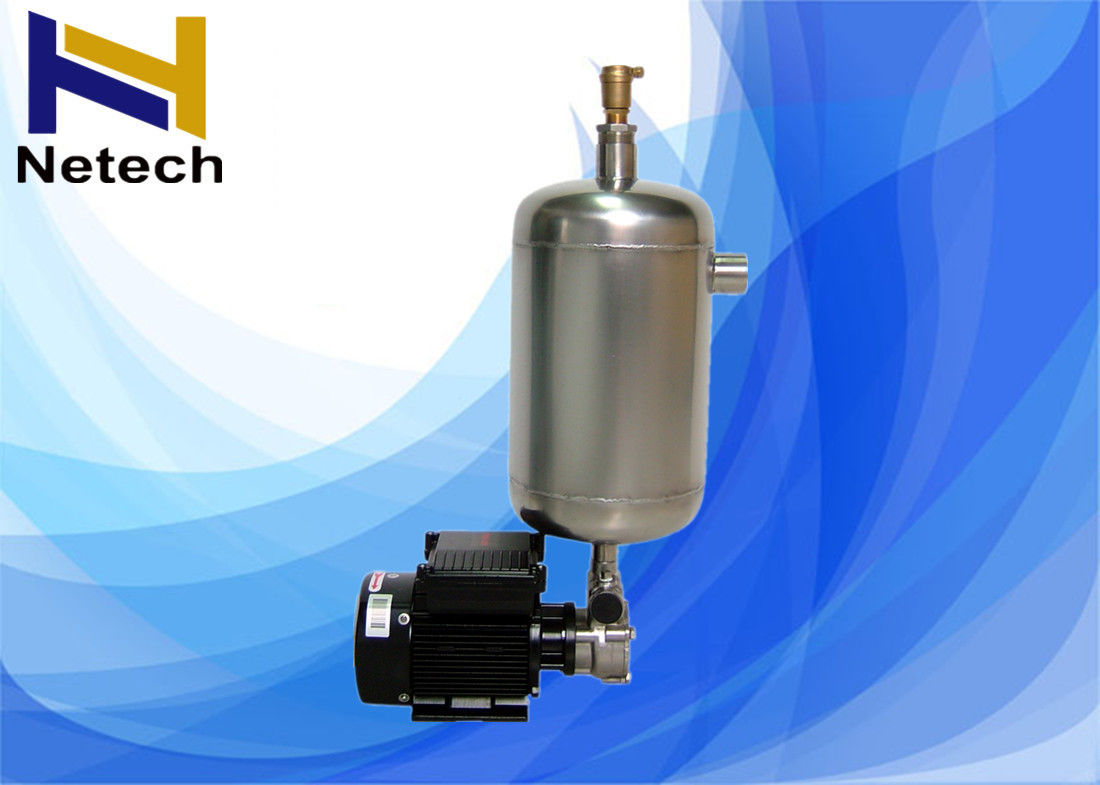

90% Mixing Efficiency1-50t/h Micro Bubble Generator Gas-liquid Mixing Pump For Water Treatment
Micro bubble is a new kind of mixing technology. It can mix gas and water. The gas can be any gas, such as oxygen, ozone. The mixing efficiency is more than 90%.
Specification:
| Model | Flow rate | Specification | The maximum head of delivery (m) | flow rate (L/Min;M3/h) | The flow rate of head delivery at 40M (L/min；m³/h) | Maximum temperature resistance of material (℃) |
| 20WSS04 | 1T | 220V/60HZ; 0.37KW | 45M |
12L/min 0.72m³/h |
14L/min 0.84m³/h |
120℃ |
| 25WSS07 | 2T | 220V/60HZ; 0.75KW | 50M |
17L/min 1.02m³/h |
25L/min 1.5m³/h |
|
| 32WSS15 | 3-4T |
380/50HZ 1.5KW |
60m |
35L/min 2.1m³/h |
52L/min 3.12m³/h |
|
| 40WSS22 | 5-6T |
380/50HZ 2.2KW |
50m |
82L/min 4.92m³/h |
102L/min 6.12m³/h |
|
| 50WSS75 | 10-15T |
380/50HZ 7.5KW |
80m |
50L/min 3.0m³/h |
150L/min 9m³/h |
180℃ |
| 65WSS110 | 25-30T |
380/50HZ 11KW |
60m |
300L/min 18m³/h |
500L/min 30m³/h |
|
| 80WSS220 | 45-50T |
380/50HZ 22KW |
60m |
650L/min 39m³/h |
850L/min 51m³/h |
Micro-bubble Pump Test:
Temperture:23.9℃
Humidity: 52%
Total water capacity: 250L
Oxygen flow: 100L/H
| No | Time | Oxygen concentration (PPM) |
| 1 | 9:22 | 4.62 |
| 2 | 9:41 | 6.99 |
| 3 | 9:56 | 19.85 |
| 4 | 9:57 | 20.01 |
| 5 | 10:00 | 21.60 |
| 6 | 10:04 | 21.86 |
| 7 | 10:06 | 22.67 |
| 8 | 10:10 | 23.08 |
| 9 | 10:14 | 23.46 |
From the result, we can know the mixing efficiency increased by 5 times in 1 hour.
