O2 Concentrator PSA Oxygen Generator Spare Parts / Fish Farm Oxygen Tank Parts

O2 Concentrator PSA Oxygen Generator Spare Parts / Fish Farm Oxygen Tank Parts

Products - Oxygen Concentrator Parts
  • High Light

    oxygen concentrator repair

    ,

    molecular sieve unit

  • Guarantee
    One Year
  • Oxygen Output
    3LPM,5LPM,7LPM,10LPM,15LPM
  • Oxygen Concentration
    90%±3%
  • Pressure(inlet)
    0.14-0.35
  • Pressure(outlet)
    0.06-0.08
  • Output Type
    Stable And Continuously
  • Place of Origin
    Guangdong China
  • Brand Name
    OZOCENTER
  • Model Number
    CH-OX
  • Minimum Order Quantity
    1 set
  • Price
    USD 1118 / set
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    3-5 working days after payment confirmed
  • Payment Terms
    T/T, Western Union， Paypal
  • Supply Ability
    100 sets per month

O2 Concentrator PSA Oxygen Generator Spare Parts / Fish Farm Oxygen Tank Parts

  • O2 Concentrator PSA Oxygen Generator Spare Parts / Fish Farm Oxygen Tank Parts
  • O2 Concentrator PSA Oxygen Generator Spare Parts / Fish Farm Oxygen Tank Parts
  • O2 Concentrator PSA Oxygen Generator Spare Parts / Fish Farm Oxygen Tank Parts
  • O2 Concentrator PSA Oxygen Generator Spare Parts / Fish Farm Oxygen Tank Parts
  • O2 Concentrator PSA Oxygen Generator Spare Parts / Fish Farm Oxygen Tank Parts
  • O2 Concentrator PSA Oxygen Generator Spare Parts / Fish Farm Oxygen Tank Parts
  • O2 Concentrator PSA Oxygen Generator Spare Parts / Fish Farm Oxygen Tank Parts
  • O2 Concentrator PSA Oxygen Generator Spare Parts / Fish Farm Oxygen Tank Parts
  • O2 Concentrator PSA Oxygen Generator Spare Parts / Fish Farm Oxygen Tank Parts
  • O2 Concentrator PSA Oxygen Generator Spare Parts / Fish Farm Oxygen Tank Parts
Get Price Contact Now

Industry 15LPM PSA Oxygen Generator Spare Parts Fish Farm Oxygen Tank Parts Oxygen Machine



Quick Detail



Oxygen concentration 90%±3%
Output 3L 5L 7L 10L 15L
Noise ≤ 60Db
Technology Pressure swing absorbtion (PSA)
Usage Increase oxygen in the air or fish farm water,etc.
Warranty 1 year

1. ed products

NT-OX series molecular sieve is an air separation plant which has already obtained domestic .

2. Rational construction


Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.

3.Easy to control

Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.

4.Low-pressure

oxygen production working pressure 1.5-2 Bar.

5. Working Voltage

110V/220V is available


Sepcifications:

Item Unit NTOX3AL NTOX5AL NTOX7AL NTOX10AL NTOX15AL
Oxygen output LPM 3 5 7.5 10 15
Oxygen concentration % 90%±3% 90%±3% 90%±3% 90%±3% 90%±3%
Air flow rate LPM 36-45 60-75 90-115 90-115 180-200
Pressure(inlet) Mpa 0.14-0.18 0.14-0.2 0.15-0.21 0.18-0.25 0.35
Pressure(outlet) Mpa 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08
Temperature ℃ indoor temperature
Relative humidity % ≤ 70%±10%
Noise Db ≤60 ≤60 ≤60 ≤60 ≤60
Dimension mm Ф200×310 Ф200×430 Ф200×500 Ф200×560 Ф200×880
Net weight kg 5.5 7 8 11 12.5


Remark:

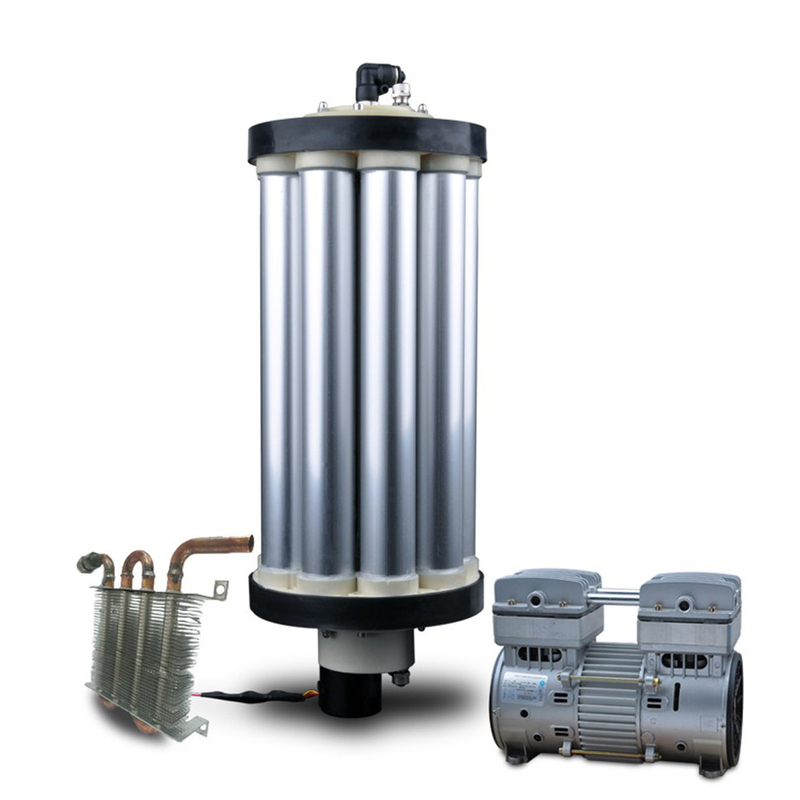

1. One set including oxygen generating unit, air compressor, and chiller. (It also can be sold separately)
2. NTOX15AL-2 comes with 2 units air compressors,2 chiller.


Other Types of oxygen concentrator:

* Two Towers Oxygen Concentrator

Item Unit NT03L NT05L NT08L NT10L
Oxygen output LPM 3 5 8 10
Oxygen concentration %

90%±3%
Power W 280 450 / 650
Pressure(inlet) Mpa 0.18-0.2 0.2 0.2 0.2
Pressure(outlet) Mpa 0.06-0.08
Temperature ℃ indoor temperature
Relative humidity % ≤85%
Noise Db ≤ 55 ≤60 ≤70 ≤70
Dimension mm 550×160×80 550×180×80 610×290×120 610×310×120
Weight kg 9.25 16.70 18.50 19.10



Appliance of oxygen machine:

• Welding / Brazing Furnace Enrichment
• Fermentation Glass Industry
• Fish Farming Ozone Generator
• Sewage Treatment Pulp & Paper
• Mini-Steel Mills Cement & Lime Kilns
• Metal Spraying Copper Smelting

Our Service :

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your question in fluent English.
3.Customized design is avaliable.OEM&ODM are welcomed.
4.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to our distributor.
