High purity Oxygen machine parts molecular sieve o2 concentrator
High purity Oxygen machine parts molecular sieve o2 concentrator
Introduction:

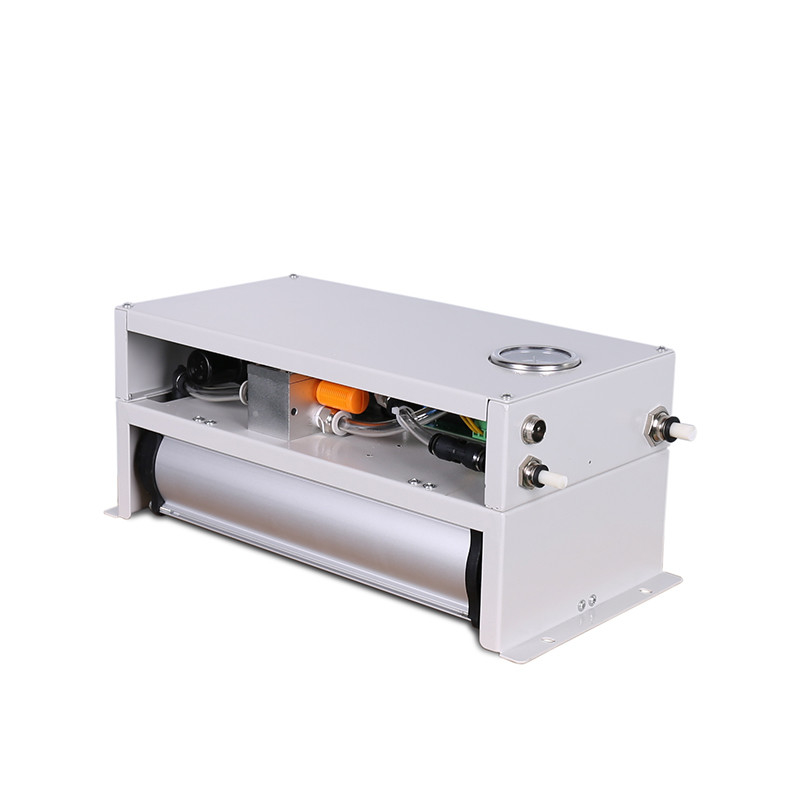

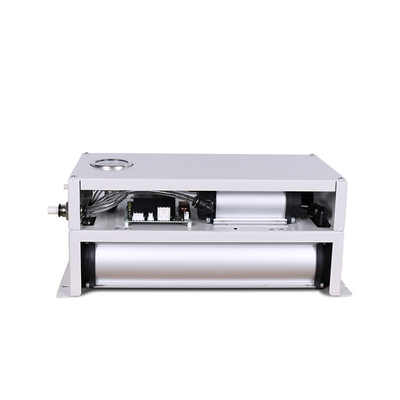

* The model of HY-10L-G (Two Tower oxygen molecular sieve cylinder) is specially used for equipment to supply oxygen source.
* It uses air as raw material, molecular sieve as adsorbent, and uses the principle of pressure swing adsorption to separate oxygen and nitrogen in the air.
* Stable and reliable work, low working noise
* It can be used independently or built into the ozone equipment system.
The main function:
• Used for oxygen supply and oxygen inhalation in homes, hospitals, clinics, and nursing centers.
• As the oxygen source of the ozone generator.
Specification
Product name | Two towers oxygen molecular sieve cylinder |
Model No. | HY-10L-G |
Oxygen concentration | 90%±3% |
Oxygen flow rate | ≥10L/min |
Gas Input | ≥140L/min@0.22MPa |
Gas dew point requirements | ≤-50℃ |
Input voltage | AC100-240V/50-60Hz |
Power consumption | ≤20W |
Oxygen pressure | 40KPa |
Ambient temperature | 5-45℃ |
Environment humidity | ≤80%RH |
Dimension | 616x185x180mm |
Net weight | 11kg |
Notice:
* Do not turn the pressure regulating valve; the pressure regulating valve requires professionals to connect the pressure gauge according to the design standard, and adjust it by reading the value of the instrument online. The pressure valve needs to be locked after the adjustment.
* If multiple two tower oxygen molecular sieve cylinder are required to synthesize an oxygen generator to use, it needs to be customized in advance.
