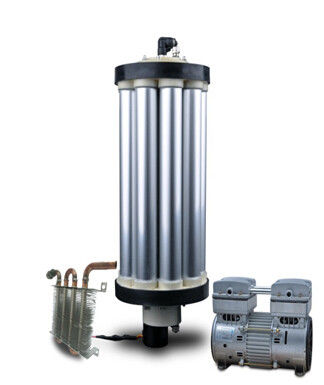

3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor

3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor

Products - Other Ozone Generator Subsidiary Facilities
  • High Light

    aquarium protein skimmer

    ,

    refrigerated air dryer

  • Working Voltage
    110V/220V
  • MOQ
    1 Set
  • Material
    Zeolite Or Lithium
  • Outlet Outlet Pressure
    0.06-0.08 Mpa
  • Warranty
    1 Year
  • Oxygen Purity
    90+-3%
  • Dimension
    610*310*120mm
  • Technology
    PSA
  • Place of Origin
    Guangdong China
  • Brand Name
    Netech
  • Model Number
    CH-OX
  • Minimum Order Quantity
    1 set
  • Price
    $ 580 - $ 1120
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    5-10 days after payment confirmed
  • Payment Terms
    L/C D/A D/P T/T Western Union Credit Card/ Paypal
  • Supply Ability
    1000 sets per month

3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor

  • 3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor
  • 3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor
  • 3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor
  • 3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor
Get Price Contact Now

3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor

3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 0
3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 1
12 Towers Oxygen Concentrator
Features:
Twelve towers oxygen concentrator is unique design, advanced technology, excellent service
support
1.Rational construction
Modular construction is the main points of our molecular sieve. Through the different combination
of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
2.Easy to control
Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
3.The oxygen output is stable and continuously
4.Low-pressure oxygen production working pressure 1.5-2 Bar.
5.Working Voltage 110V/220V is available.
Item
Unit
3L
5L
7L
10L
15L
Oxygen output
LPM
3
5
7.5
10
15
Oxygen concentration
%
90%±3%
90%±3%
90%±3%
90%±3%
90%±3%
Air flow rate
LPM
36-45
60-75
90-115
90-115
180-200
Pressure(inlet)
Mpa
0.14-0.18
0.14-0.2
0.15-0.21
0.18-0.25
0.35
Pressure(outlet)
Mpa
0.06-0.08
0.06-0.08
0.06-0.08
0.06-0.08
0.06-0.08
Temperature
℃
indoor temperature
Relative humidity
%
≤ 70%±10%
Noise
Db
≤60
≤60
≤60
≤60
≤60
Dimension
mm
Ф200×310
Ф200×430
Ф200×500
Ф200×560
Ф200×880
Net weight
kg
5.5
7
8
11
12.5
3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 2
3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 3
3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 4
3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 5
3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 6
3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 7
3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 8
3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 9
3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 10



Ozone machine
with 12 tower oxygen concentrator

3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 11



Ozone machine
with 12 tower oxygen concentrator

3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 12



Oxygen machine
with 12 tower oxygen concentrator

3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 13
Guangzhou OSUNSHINE Environmental Technology Co., Ltd., based on the parent company of Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on ozone equipment, accessories production, development and application of products.With the development for several years, the company has been in 16 aspects of the ozone generator. Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe, North and South America, Southeast Asia, Middle East, Africa and dozens of countries.
3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 14
3L - 15L PSA High Efficiency Oxygen Concentrator With Chiller And Air Compressor 15
