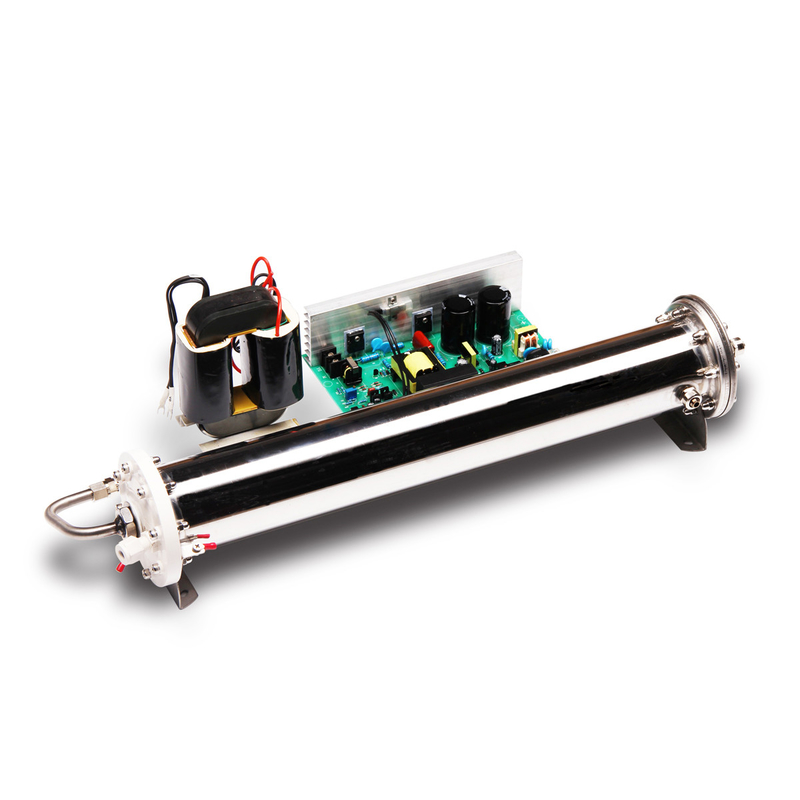

Water Cooling Corona Discharge Enamel Ozone Cell For Ozone Generator
-
High Light
ozone accessories
,ozone generator tube
-
UseOzone Assembly
-
Cooling WayInternal & External Water Cooling
-
Voltage220V/ 50Hz Or 110V/60Hz
-
Adjustable Range20%-100%
-
UseAssemble
-
Ozone Concentration56-90mg/L
-
Power200-750w
-
Fuse3A 5A 10A
-
High Voltage Output2800v
-
TypeWater Cooling Ozone Tube
-
Place of OriginChina
-
Brand NameOsunshine
-
Model NumberCH-PC
-
Minimum Order Quantity1
-
Packaging DetailsSafe double carton package with foam inside for protection
-
Delivery Time3 to 5 days
-
Payment Termspaypal,western union,T/T,credit card
-
Supply Ability1000 per weeks
Water Cooling Corona Discharge Enamel Ozone Cell For Ozone Generator
Water Cooling Corona Discharge Enamel Ozone Cell For Ozone Generator
Quick Detail
ozone generator parts
1. concentration up to 90%
2. 20%-100% adjustable range
3. water cooling
4. high efficiency
Description
MOQ 1 sets
ozone produced medium enamel
ozone tube weight 4.90kg
ozone produced method corona discharge
voltage 220V/ 50Hz or 110V/60Hz
cooling way internal & external water cooling
warranty repair or change new parts during 12 month

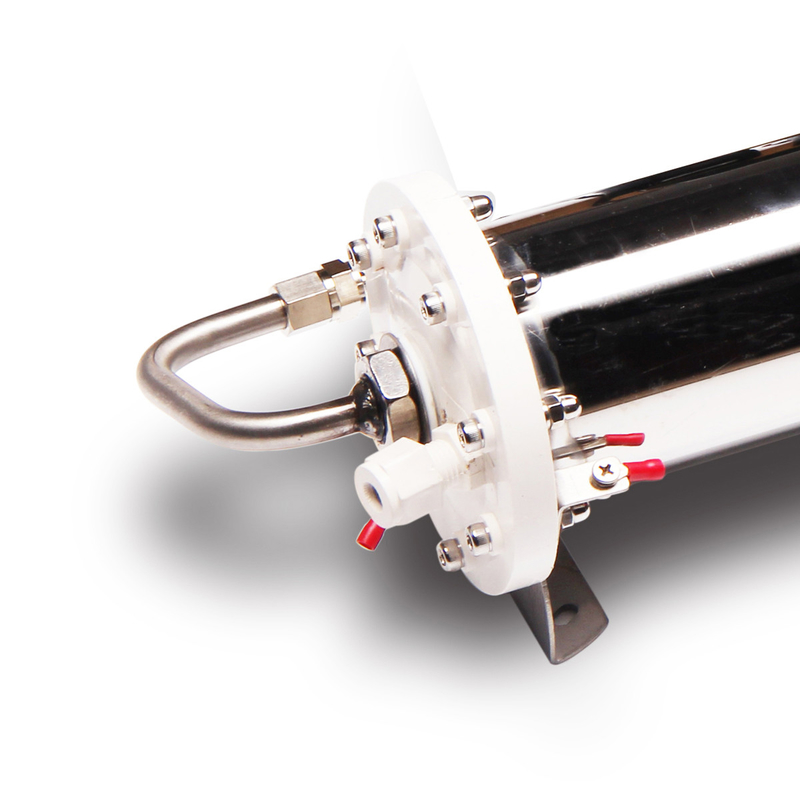

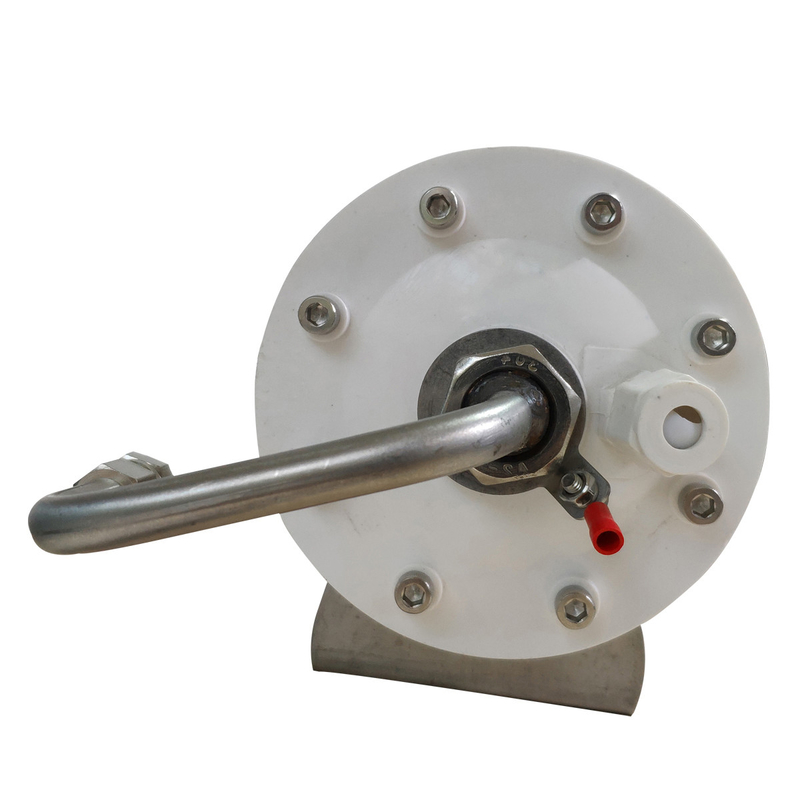

Electrodes:
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.
Cooling way
Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.
Adjustable ozone output: 20-100%.

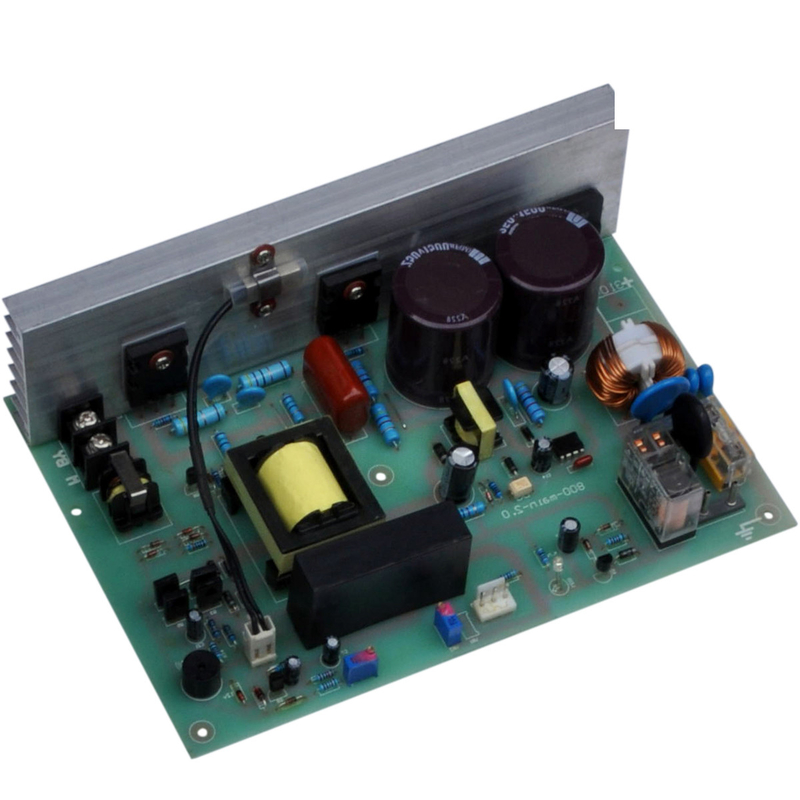

Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
| Item | Unit | CH-PC10G | CH-PC20G | CH-PC30G | CH-PC50G | CH-PC60G |
| Oxygen flow rate | LPM | 1-3 | 2-6 | 3-10 | 5-15 | 8-18 |
| Ozone concentration | Mg/L | 88-58 | 88.6-57 | 87.5-56.8 | 90-56 | 90-60 |
| Ozone output | G/Hr | 5.28-10.44 | 10.63-20.52 | 15.75-34.08 | 27-50.40 | 43.2-64.80 |
| Power | Kw | 0.2 | 0.28 | 0.38 | 0.55 | 0.75 |
| Output frequency | KHz | 2.4 | ||||
| High voltage output | V | 2800 | ||||
| Cooling method | Water cooling for internal & external electrodes | |||||
| Cooling water flow rate | LPM | 30 | 48 | |||
| Cooling water temperature | °C | 35 | ||||
| Fitting size | mm | 1.Air inlet & ozone outlet: EDφ8mm 2.Cooling water: EDφ10mm | ||||
| Adjustable range | % | 20-100 | ||||
| Power supply | V/Hz | 110/220V 50/60HZ | ||||
| Fuse | A | 3 | 5 | 10 | ||
| Ozone tube dimension | mm | 250×105×125 | 310×105×125 | 430×105×125 | 575×105×125 | 778×105×125 |
| Mounting hole foot print of ozone tube | mm | 127×44(φ5) | 195×44(φ5) | 320×44(φ5) | 450×44(φ5) | 555×44(φ5) |
| Power supply dimension | mm | 200×100×85 | 190×150×85 | 210×150×80 | ||
| Mounting hole foot print of power supply | mm | 155×127 | 155×127 | 192×177 | 192×177 | 243×208 |
| Ozone tube weight | Kg | 2.50 | 3.00 | 3.60 | 4.90 | 5.45 |
| Power supply weight | Kg | 1 | 2.40 | |||
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Our products are sold all over the world, you can rest assured.
