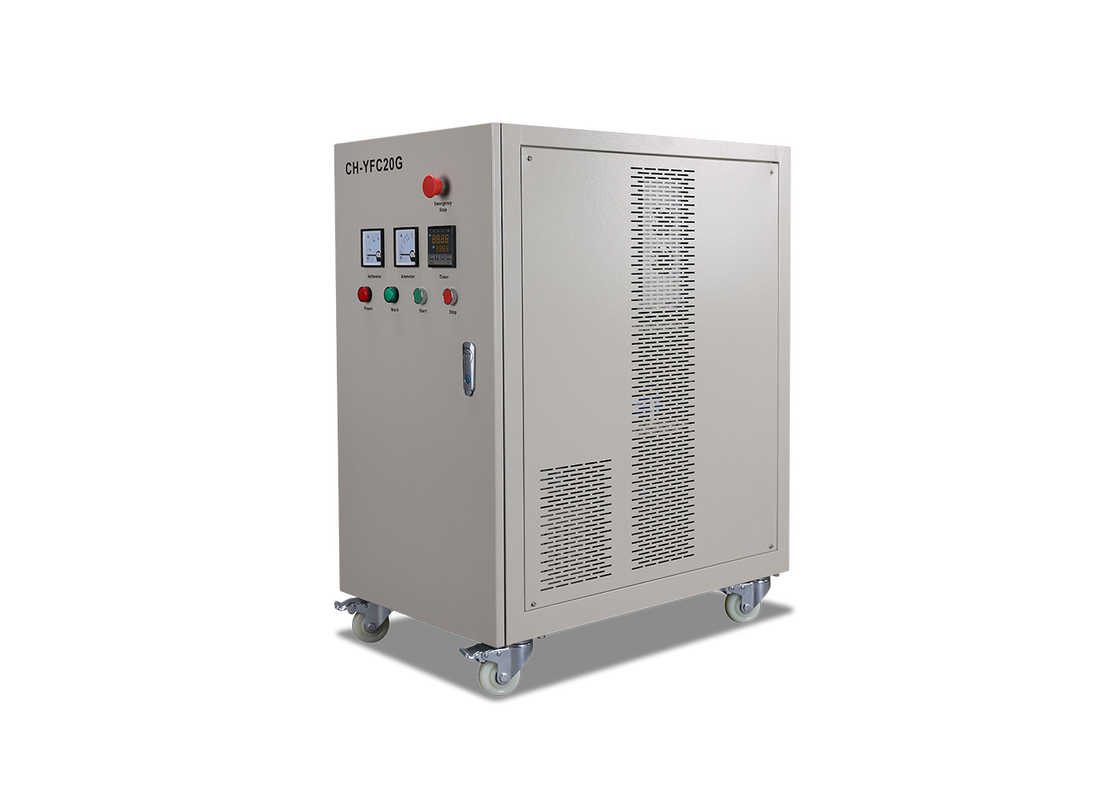

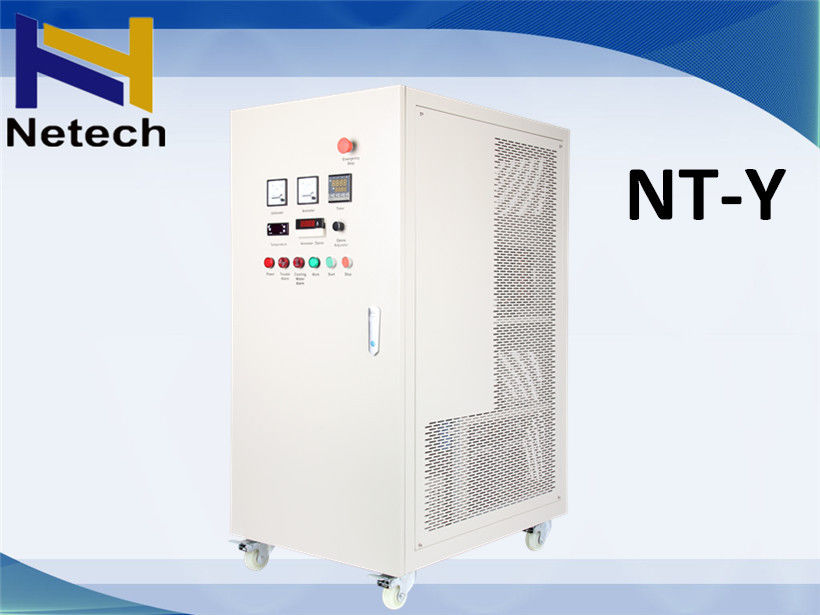

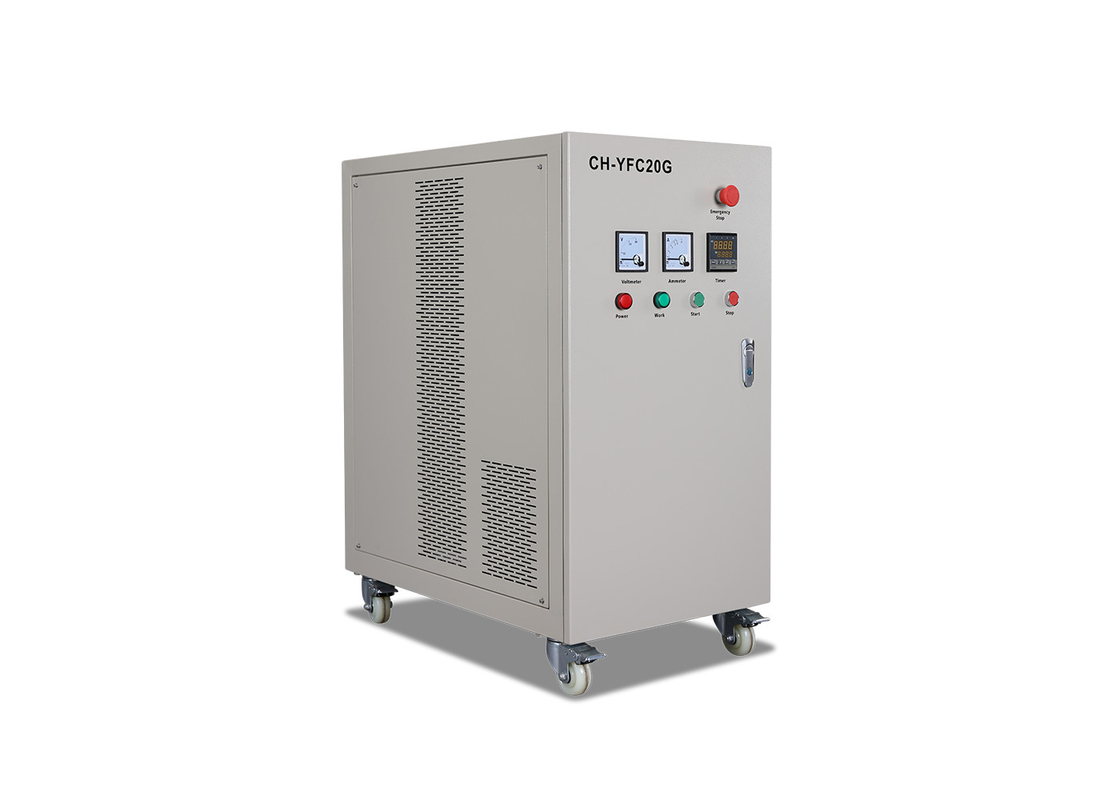

Corona Discharge Water Ozone Generator For Well Water Treatment

Corona Discharge Water Ozone Generator For Well Water Treatment

  • High Light

    corona discharge ozone generator drinking water

    ,

    water ozone machine

  • Output
    40g/hr 50g/hr 60g/hr 100g/hr
  • Tube Material
    Enamel
  • Application
    Water Treatment
  • Adjustable Rang
    20%-100%
  • Cooling Way
    Water Cooling
  • Gas Feed
    Oxygen Feed Inside
  • Place of Origin
    Guangdong China
  • Brand Name
    Netech
  • Model Number
    NT-Y
  • Minimum Order Quantity
    1 set
  • Price
    for futher discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    5-10 days after payment confirmed
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    1000 sets per month

Corona Discharge Water Ozone Generator For Well Water Treatment

Corona Discharge Water Ozone Generator For Well Water Treatment





Quick details



Brand Name: Netech

Model Number: NT-Y

Certification: domestic
Ozone output way: corona discharge

Warranty: one year warranty
Adjustable rate: 20%-100% adjustable ozone

Cooling way: water cooling





Description



Gas source Oxygen
Oxygen flow rate 1-18LPM
Material Enamel tube
Cooling Water cooling
Power supply 220V , 50HZ
Commodity Ozone water system
Ozone output

40g 50g 100g





Features:



1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator

2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time

3. Adjustable ozone range: 20%--100%, it can working automatic

4. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety



Control panel:

Ozone output adjuster, Voltmeter,  Ampere, Timer, Cooling water temperature indicator, Ozone  Ampere, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm





Specifications



Item Unit NT-Y40G NT-Y50G NT-Y100G
Oxygen flow rate LPM 5~15 8~18 16-32
Ozone concentration Mg/L 90~56 90~60 90~58
Ozone output G/Hr 27~50 43~64 86~111
Power Kw ≤1.62 ≤1.85 3.5
Fuse A 15 20 20
Cooling water flow LPM 48
Size mm 650×1030×1230 650×1030×1230
Noted:

1. Above ozone capacity were tested under oxygen source

2. Net weight will be 10% different for different plug





What we do?


We Provide high-quality ozone generator for : Ozone generator wholesalers

Retailers and online shops


OEM-The custom-made ozone generator are available. Upon customer's idea,

drawings, photos etc.


ODM-The modification of the ozone generator after customer's selection is

accepted.



Excellent after-sales service:


1 year warranty again the manufacture defect, offer life time consultation on

problems occurred.

Report on the making process. Marketing feedbacks tracing.
