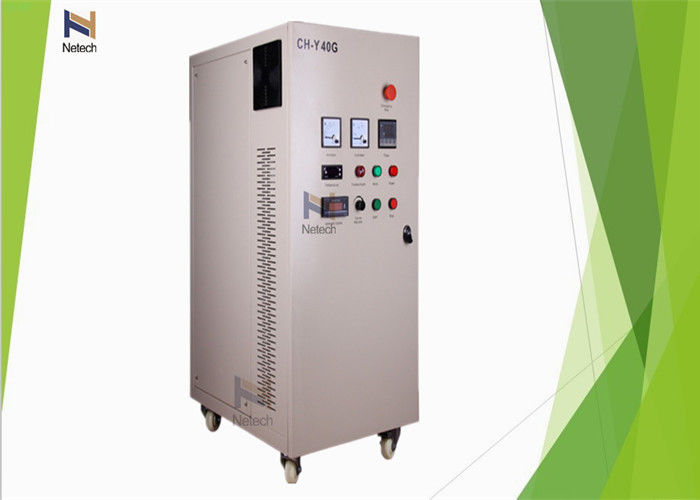

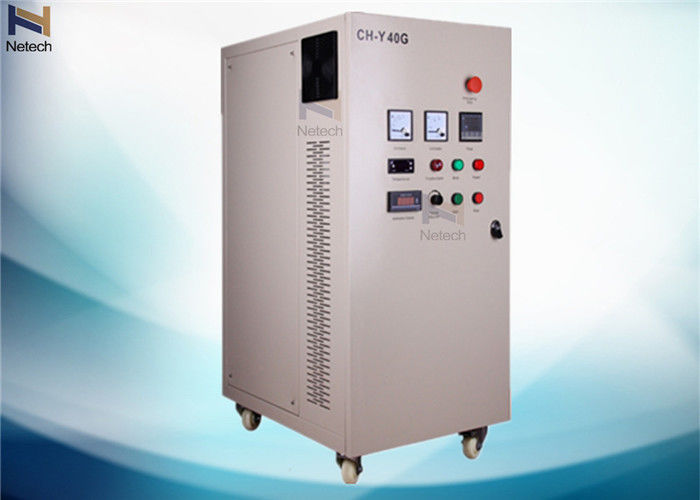

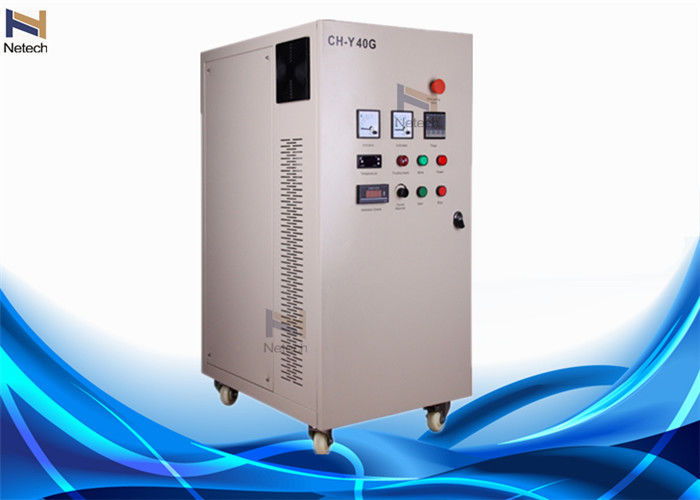

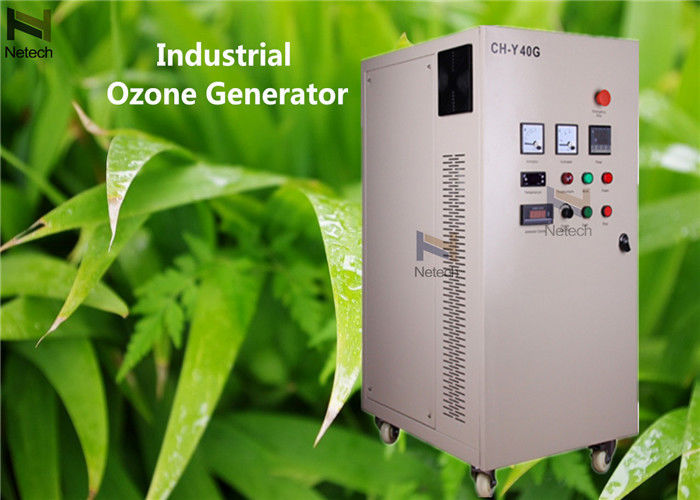

40g - 100g / hr Industrial Ozone Generator Ozonizer For Aquaculture Waste Water
The main function:
Ozone clean, no residues toxic substances
In public places, hospitals and factories and purification room cleanion, clean and the elimination of all kinds of bad smell.
Using live bacteria clean to flavor, flowing for high efficiency, broad spectrum, fast, no dead Angle of fungicide.
Used for aquaculture water treatment, swimming pool water treatment, waste/sewage water treatment, drinking water treatment, washing fruit/ vegetable and home water treatment.
Features:
With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator
With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
Adjustable ozone range: 20%--100%, it can working automatic
Compact assembly,Movable with Wheels
Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Control panel:
Ozone output adjuster, Voltmeter, Ampmeter, Timer, Cooling water temperature indicator, Ozone Ampmeter, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm
Specifications:
Item | Unit | CH-Y40G | CH-Y50G | CH-Y60G | CH-Y100G |
Oxygen flow rate | LPM | 5~15 | 8~18 | 20 | 16-32 |
Ozone concentration | Mg/L | 90~56 | 90~60 | 55-59 | 90~58 |
Ozone output | G/Hr | 27~50 | 43~64 | 66-70.8 | 86~111 |
Power | Kw | ≤1.62 | ≤1.85 | ≤2.80 | 3.5 |
Fuse | A | 15 | 20 | 20 | 20 |
Cooling water flow | LPM | 48 | |||
Size | cm | 65*103*124 | 60*85*131 | 67*110*136 |
Net weight will be 10% different for different plug
