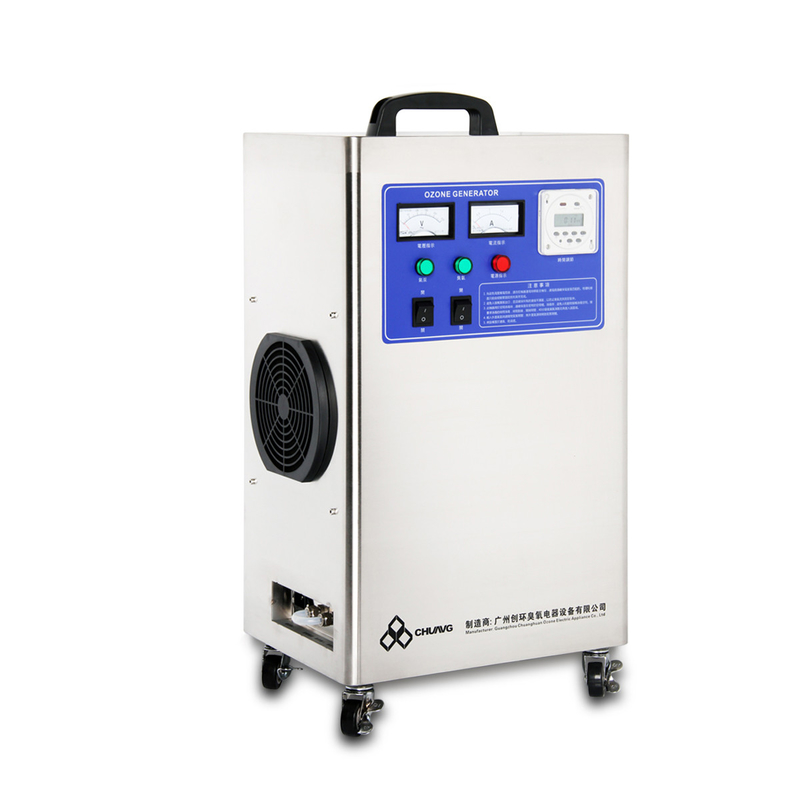

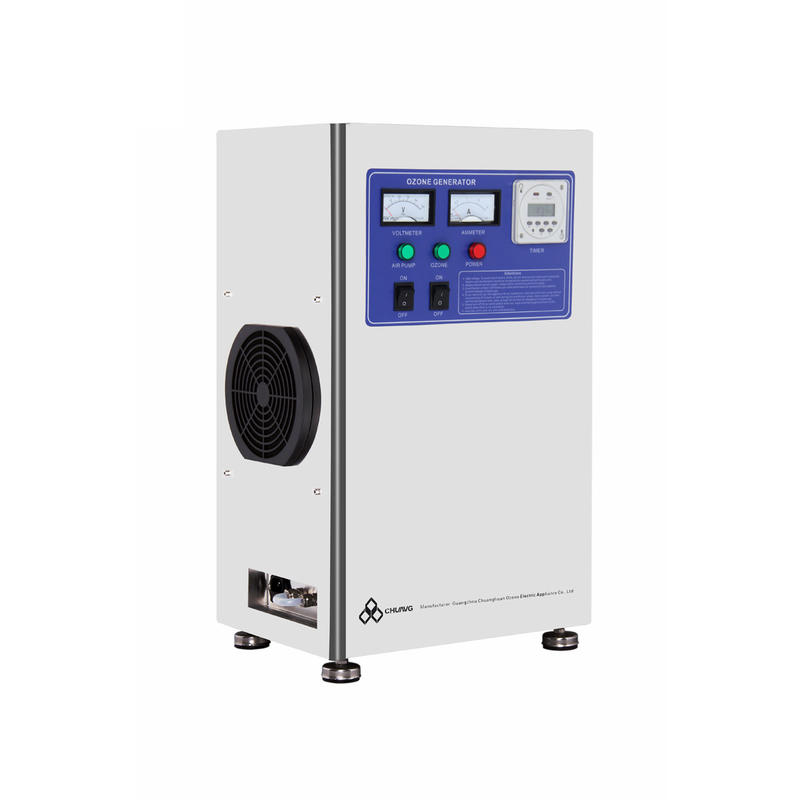

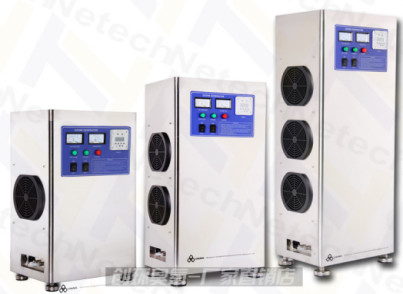

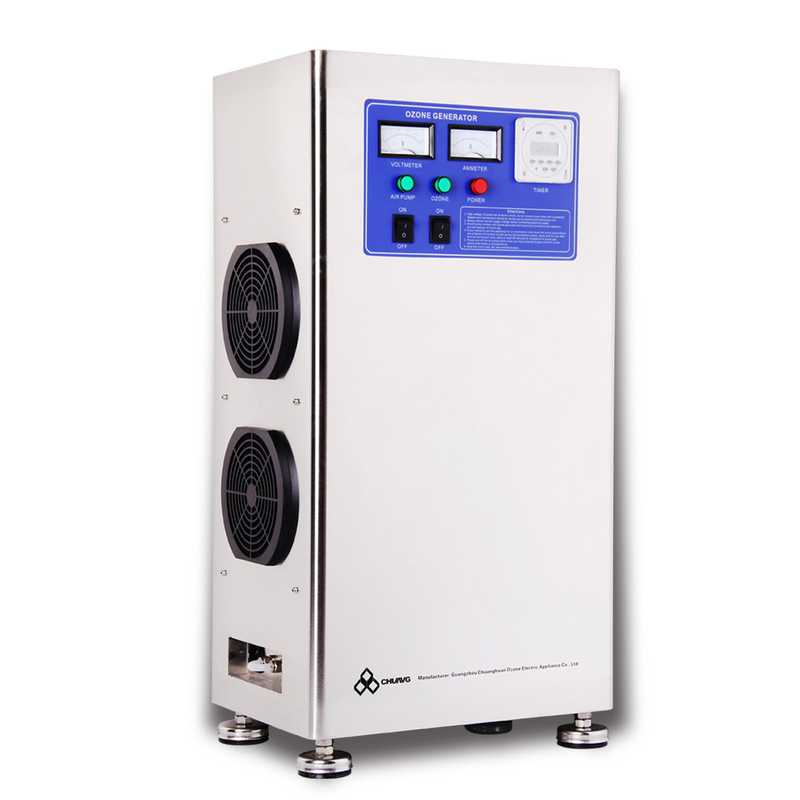

2 - 20 G Ceramic Tube Water Ozone Generator For Commercial Kitchen Ozone Water Treatment 220V / 50Hz

2 - 20 G Ceramic Tube Water Ozone Generator For Commercial Kitchen Ozone Water Treatment 220V / 50Hz

  • High Light

    automotive ozone generator

    ,

    mini ozone generator

  • Size
    36×26×61cm
  • Ozone Concentration
    28~70Mg/L
  • Ozone Output
    2-20G/Hr
  • Power
    115-1100W
  • Compressed Air Pressure
    0.025-0.14Mpa
  • Fuse Of Power Supply
    3-10A
  • Material
    Carbon Steel
  • Keywords
    Ozone Generator For Water Treatment
  • Place of Origin
    Guangdong China
  • Brand Name
    Osunshine
  • Model Number
    CH-T-N
  • Minimum Order Quantity
    1 set
  • Price
    300-800USD
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    3-5 working days after received your payment
  • Payment Terms
    T/T Western Union Credit Card/ Paypal
  • Supply Ability
    100 sets per month

2 - 20 G Ceramic Tube Water Ozone Generator For Commercial Kitchen Ozone Water Treatment 220V / 50Hz

2-20G Ceramic Tube Commercial Kitchen Ozonizer 220V / 50Hz Water Ozone Generator



2 - 20 G Ceramic Tube Water Ozone Generator For Commercial Kitchen Ozone Water Treatment 220V / 50Hz 0

Quick details
Brand Name: Osunshine

Model Number: CH-T-N

Certification: domestic
Ozone output way: air cooling

Warranty: one year warranty
Adjustable rate: 20-100% adjustable ozone
MOQ: 1 set


Applications:
1. treatment industry: clean ward operating room, treatment equipment, aseptic room, etc
2. Fruits and vegetables: keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacterias , clean production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacteria, clean production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacteria ,clean water for poultry feeding.
6. Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.
Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Virus to fresh air.
Water purifier: clean production Water supply.
7. Bottle Water, Domestic Water, Well Water, Pool Water cleanion & clean


how to use ?

1. Before use this machine, put it in a stable flat place which can hold its weight.

2. Use the power equipped with the machine;

3. The machine use for air purification, firstly attach the silicone tube into the

ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5. When use for room air purification, it requires nobody is present, after 30

minutes people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone

tube and put into the water.

7. Attention,the machine should be placed higher than the water, incase that the water reflux occur.


Control panel:

Voltmeter, Ampere meter, Switch, Timer,

Working light, Power light etc.

Timer: One or Two recycle working time

Features:
1. Built in Domestic ed Product -Air cooling ceramic ozone generator
2. Built in Automatic air dryer, Feed dry air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. No breakdown with easy operation and maintenance.

Specifications:

Item Unit CH-T-N
2G 3G 5G 6G 10G 15G 20G
Oxygen flow rate LPM 0.5~2 1~3 1.2~3 1.5~3.5 2.4~6 3.6~9 3~10
Ozone concentration Mg/L 28~50 28~65 32~60 28~56 32~60 32~60 38.9~42
Ozone output G/Hr 1.5~3.0 4~5.0 4.3~5.7 5.0~5.8 8.6~14.5 13~17 18.6~20
Power W 115 135 160 185 260 330 400
Air flow rate (Suggested) LPM 40~60 50~75 50~90
Compressed air pressure Mpa 0.025
Fuse of power supply A 3 5 5 5
Size cm 36×26×61 40×30×77
Net Weight kg 11.25 11.30 11.50 18 20 35


2 - 20 G Ceramic Tube Water Ozone Generator For Commercial Kitchen Ozone Water Treatment 220V / 50Hz 1

2 - 20 G Ceramic Tube Water Ozone Generator For Commercial Kitchen Ozone Water Treatment 220V / 50Hz 2
Question and answer

♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dead reported caused by ozone poisoning.


♦ Does the ozone generator work efficiently ?

Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short time



Quality control

Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.


After sales service

We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.

Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteri efficently and resolve the harmful material in a short time.
