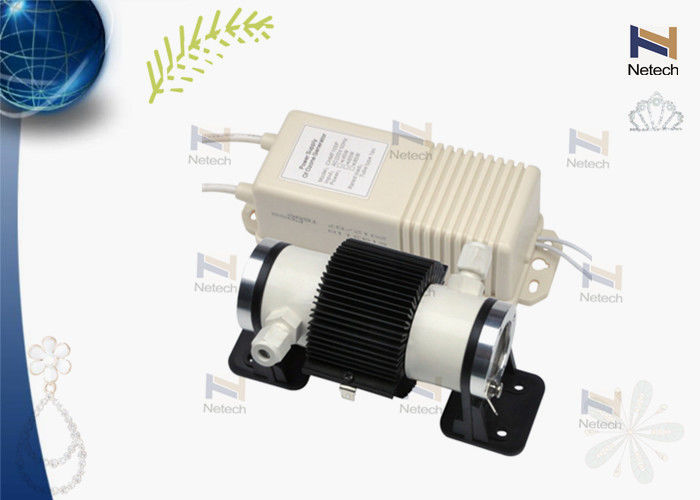

Ceramic Ozone Generator Parts 1000 mg 3000 mg 5000 mg 7000 mg High Concentration

Ceramic Ozone Generator Parts 1000mg 3000mg 5000mg 7000mg High concentration


Listed below are other benefits that directly impact the success of agriculture and hydroponics.

Benefits; Washes away small insects to the ground without killing them

Improves plants’ resistance against certain microbiological pests

Require a spraying frequency comparable to pesticide treatment

Effectively fumigates the soil surface to remove contaminants without chemical residue

Features:

1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around 30~86 Mg/L, which is much higher than conventional products.

2. Domestic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.

3. Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

4. Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.

5. Easy to maintain and install
Imported material of high pure ceramic, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.

Specification:

Item	Unit	CH-PTF
		1G                 (12V)	1G              (220V)	1G                (110V)	3GM	3GA
Ambient temperature	℃	21.6	25	23.6	21
Ambient humidity	%	40	50	21.6	40
Power	W	≤14.4	≤15	≤15	≤50	≤80
Oxygen feed flow rate	LPM	0.3~0.5	0.3~1	0.3~1	0.5-1
Ozone concentration	Mg/L	49~40	49~30	49~30	81.6-49.2
Ozone output	G/Hr	0.88~1.2	0.88~1.8		2.4-2.95
Ozone output adjustable range	%	/			/	20~100
Line power supply	V/Hz	110/60    220/50
Cooling way	/	Air cooling
Diameter of cooling fan	mm	50*50	50*50	50*50	120
Diameter of gas inlet/outlet	mm	EDФ6
Power supply dimensions	mm	105*57*50	96*47*32	96*47*32	153×60×53	201×86×83
ozone tube dimensions	mm	125*50*50			165×90*90
Ozone tube weight	Kg	0.2			0.5
Power supply weight	Kg	0.15			0.59	0.76
