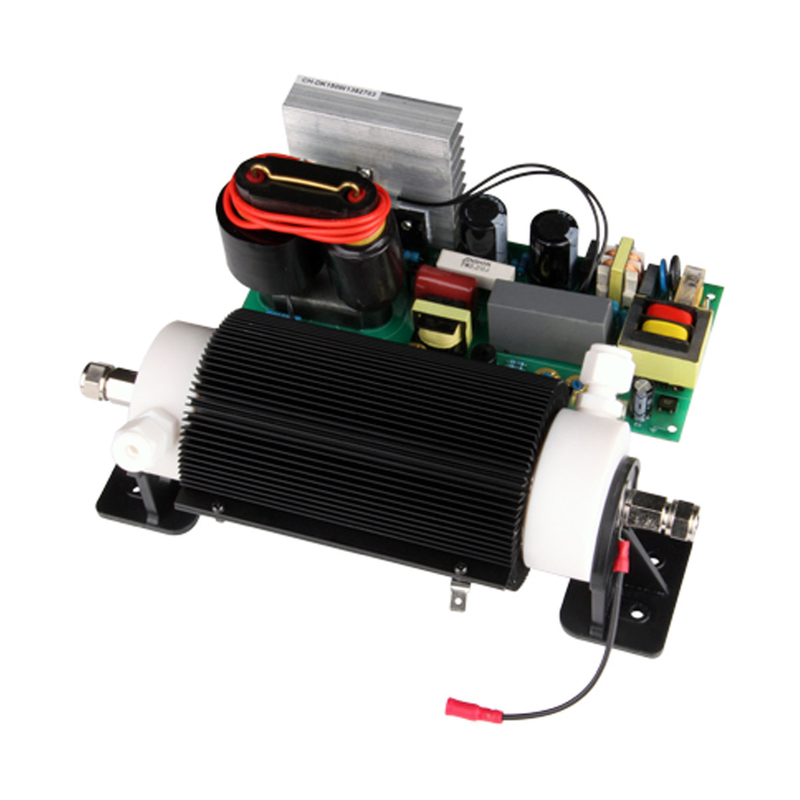

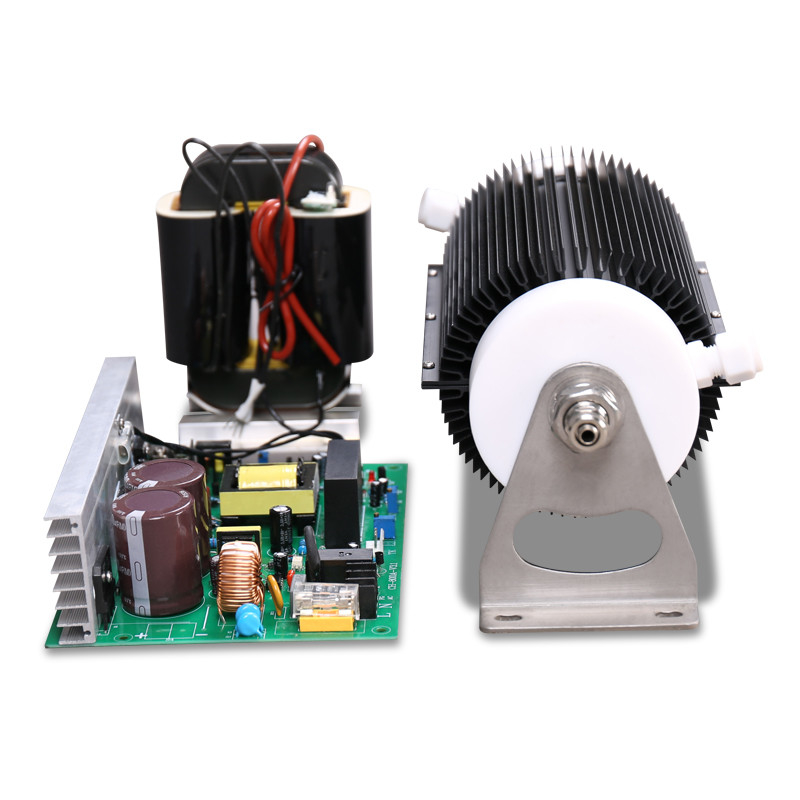

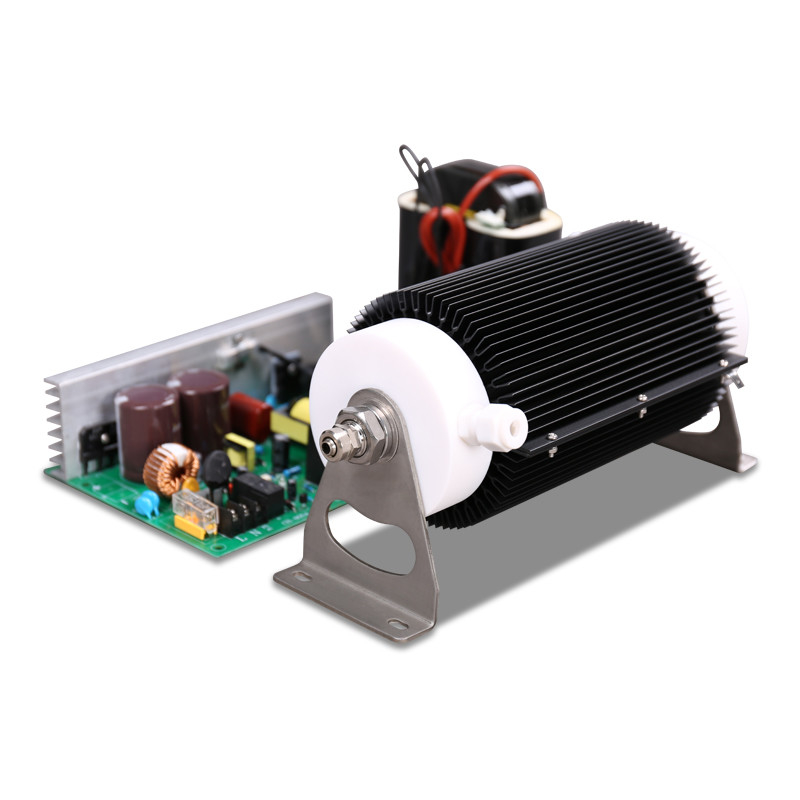

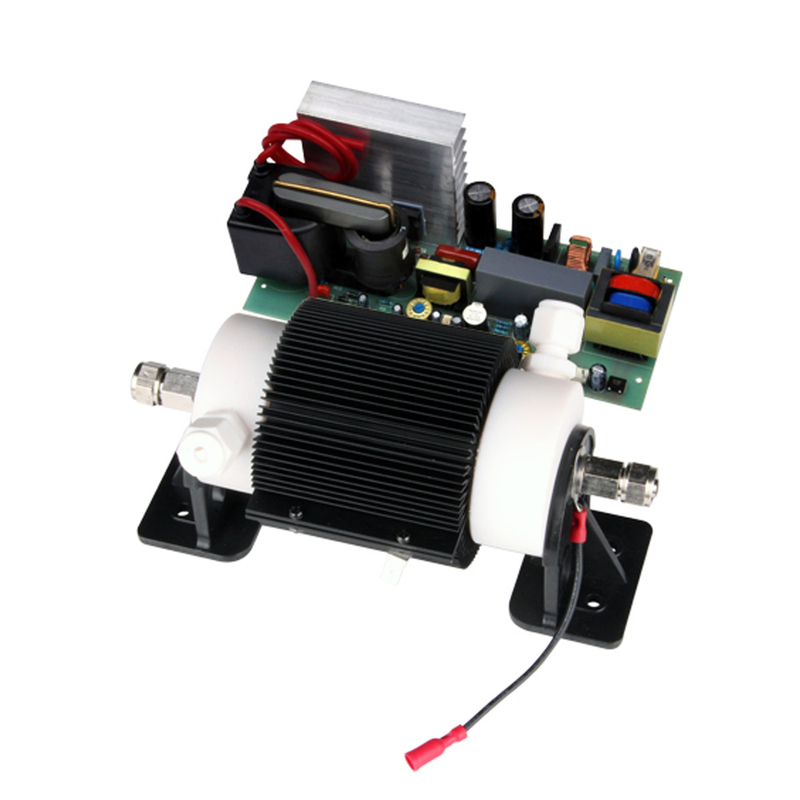

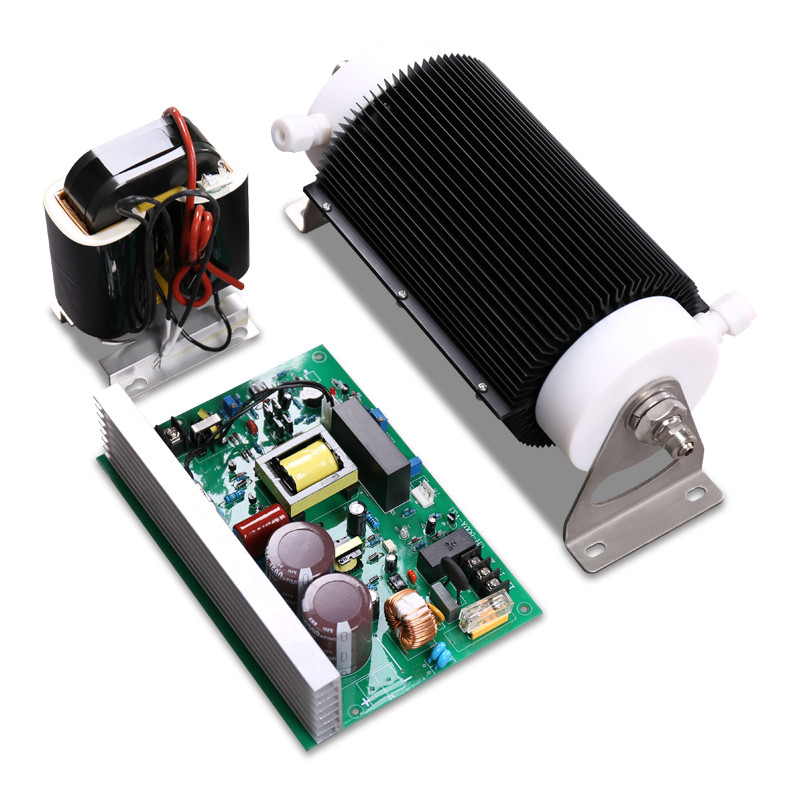

Water Cooling Ceramic Tube Ozone Generator Spare Parts 7G 50G for water
Water Cooling Ceramic Tube Ozone Generator Spare Parts 7G 50G for water
Features:
*Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.
*Domestic patent product -- got domestic patent in 2008.
A The internal electrode cooled by water, external electrode cooled by air (fan).
B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.
C High technology—the thickness of ceramic tube is only 1.70 mm.
*Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
*Small in size.
It is 1/4 smaller than similar products with same capacity.
*Easy to maintain and install
Water Cooling Ceramic Tube Ozone Generator Spare Parts 7G 50G for water
Item | Unit | CH-PT7-50G | ||||
/ | / | 7GM | 7GA | 15GA-1 | 30GA | 50GA |
Ambient temperature | ℃ | 28 | 21.9 | 22 | 26 | |
Ambient humidity | % | 37 | 39 | 38 | 44 | |
Oxygen feed flow rate | LPM | 1~3 | 3~5 | 7~9 | 15~18 | |
Ozone concentration | Mg/L | 70-40 | 66.4~53 | 62~53 | 52~49 | |
Ozone output | G/Hr | 4.2~7.2 | 11.9~15.9 | 26~28.6 | 46.8~52.9 | |
Power (220V) | W | ≤100 | ≤100 | ≤190 | ≤500 | ≤500 |
Current +_10% | A | 0.45 | 0.86 | 1.4 | 1.9 | |
Cooling way | Air cooling for external electrode,water cooling for internal electrode | |||||
Cooling water flow rate | LPM | >2 | ||||
Diameter of cooling water pipe | mm | EDФ10 | ||||
Temperature of cooling water | ℃ | Ambient temperature ±8℃ |
