High Light
High pure Ozone ceramic tube
,Air Cooling Ceramic Ozone Generator Tube
,1000mg Output Ceramic Ozone Tube
-
NameOzone Tube
-
Ozone Output Adjustable Range20~100%
-
Ozone Concentration49~30 Mg/L
-
MaterialHigh Pure Ceramic Tube
-
Size1/4 Smaller Than Similar Products
-
FeatureEasy To Maintain And Install
-
Ozone Output1g/h
-
VoltageDC12V Or 220V Or 110V
-
Place of OriginChina(guangzhou)
-
Brand NameCHUANG
-
CertificationISO9001
-
Model NumberCH-PTF1GA
-
Minimum Order Quantity1 set
-
PriceUSD 26/set
-
Packaging DetailsCarton
-
Delivery Time8-15 days
-
Payment TermsL/C, T/T, Western Union, MoneyGram, Paypal,
-
Supply Ability1500 sets/month

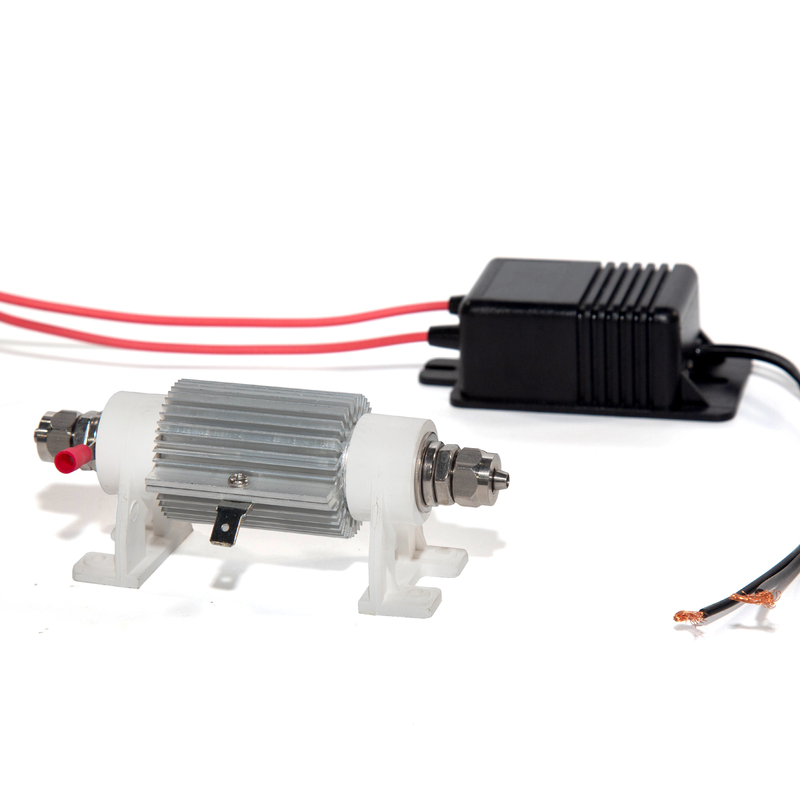

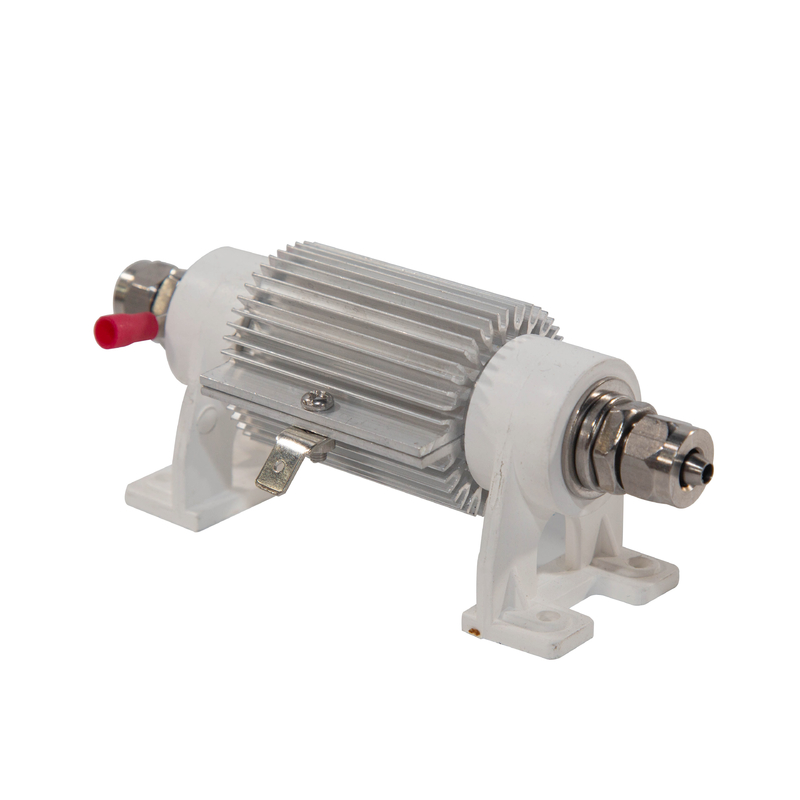

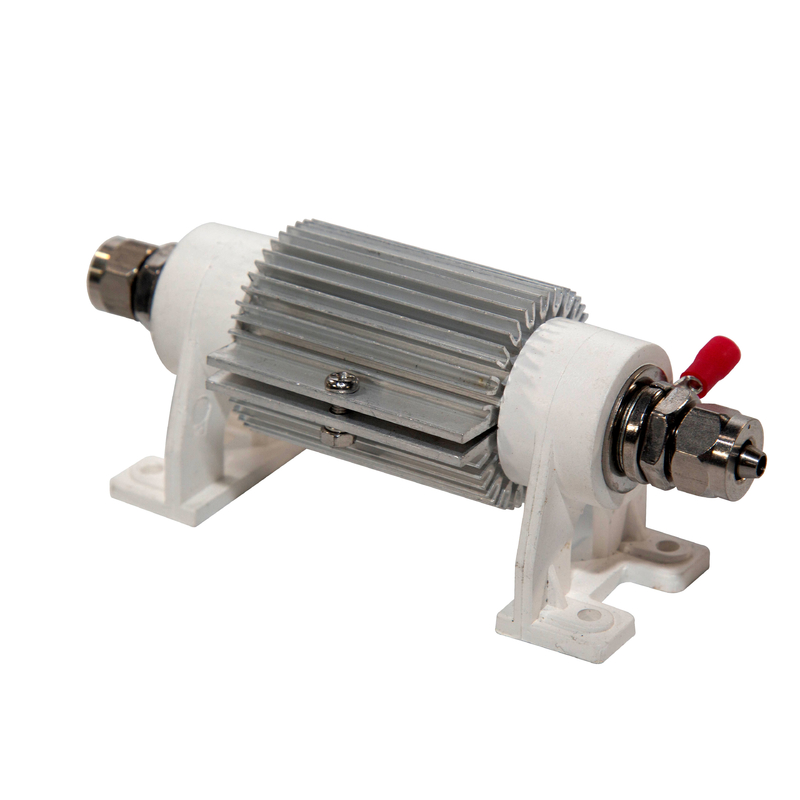

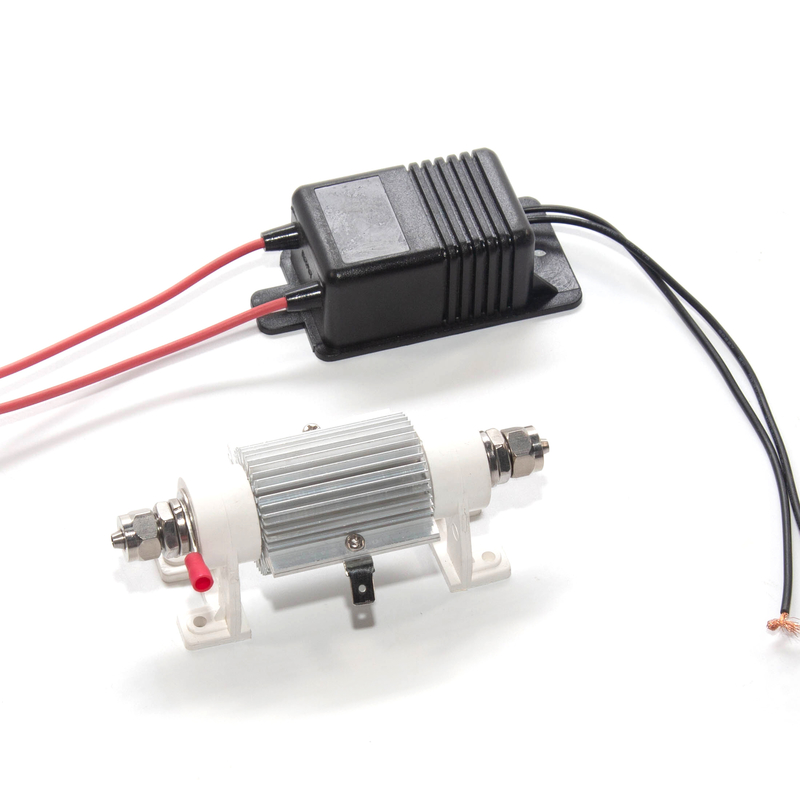

1000mg Output Ozone Generator Accessories Air Cooling Ceramic Tube
Ozone generator accessories 1000mg Output Air Cooling Ceramic Ozone Tube
Ozone generator accessories 1000mg Output Air Cooling Ceramic Ozone Tube
Features:
- Stable ozone output.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
- Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
- Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
- Easy to maintain and install
Ozone output: 3g/h, 5g/h, 6g/h, 7g/h
| Item | Unit | 500MG | CH-PTF1G | ||
| / | / | 500 mg/h | 1G(12V) | 1G (220V) | 1G(110V) |
| Ozone tube type | / | Quartz tube | Ceramic tube | ||
| Ambient temperature | ℃ | 0-30 | 21.6 | 25 | 23.6 |
| Ambient humidity | % | ≤80%Rh | 40 | 50 | 21.6 |
| Power | W | ≤8 | ≤14.4 | ≤15 | ≤15 |
| Ozone output | G/Hr | 500 | 0.88~1.2 | 0.88~1.8 | |
| Line power supply | V/Hz | DC12/220V | DC12 | AC110/60 220/50 | |
| Cooling way | / | Air cooling | |||
| Power supply dimensions | mm | 79*29.5*24.5 | 105*57*50 | 96*47*32 | 96*47*32 |
| ozone tube dimensions | mm | 66.6*28*15 | 125*50*50 | ||
| Ozone tube weight | Kg | 0.03 | 0.2 | ||
| Power supply weight | Kg | 0.09 | 0.15 | ||
Ozone generator accessories 1000mg Output Air Cooling Ceramic Ozone Tube
Ozone generator accessories 1000mg Output Air Cooling Ceramic Ozone Tube
Our products are sold all over the world, you can rest assured.
