Air Cool Fish / Prawn Farming Water cleanion Complete Ozone Generator

Air Cool Fish / Prawn Farming Water cleanion Complete Ozone Generator

  • Air Cool Fish / Prawn Farming Water cleanion Complete Ozone Generator
  • Air Cool Fish / Prawn Farming Water cleanion Complete Ozone Generator
Air Cool Fish / Prawn Farming Water cleanion Complete Ozone Generator
Product Details:
Place of Origin: China
Brand Name: Netech
Model Number: NT-YFC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: For further discussion
Packaging Details: with foam inside, cartons or wooden case
Delivery Time: 3 to 5 days after payment received
Payment Terms: western union, T/T, credit card, D/P, L/C
Supply Ability: 1500 per months
Contact Now
Detailed Product Description
Material: Stainless Steel And Ceramic Tube Power: 0.48 - 1.23 KW
Voltage: 220V/50HZ Ozone Output: 5g 10g 15g 20g 30g
NW: 64 - 97 Kg Oxygen Flow Rate: 3 , 3.5 , 5 , 8 , 10 LPM
High Light:

spa necessities ozone generator

,

ozone generator for fish farm

Air Cool Fish / Prawn Farming Water cleanion Complete Ozone Generator


1. Quick details
   Brand Name:                    Netech

Model Number:                NT-YFC

Certification:                    domestic

Ozone output way:          air cooling

Warranty:                        one year warranty
Adjustable rate:               20-100% adjustable ozone


how to use ?


1. Before use this machine, put it in a stable flat place which can hold its weight.

2. Use the power equipped with the machine;

3. The machine use for air purification, firstly attach the silicone tube into the

ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5. When use for room air purification, it requires nobody is present, after 30

minutes people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone

tube and put into the water.

7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.

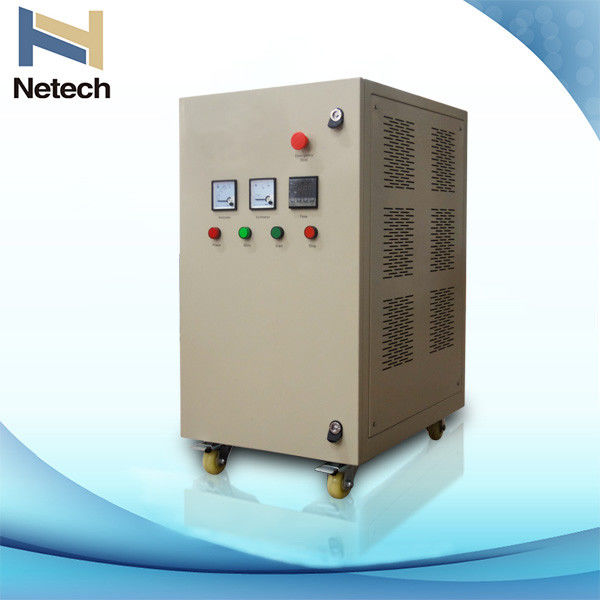

Control panel:



Voltmeter, Ammeter, Switch, Timer,

Working light, Power light etc.
Timer: One or Two recycle working time



Applications:


1. treatment industry: clean sick room, operating room, treatment equipment, aseptic room, etc
2. Fruits and vegetables: keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacteria, clean production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacteria, clean production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacterias, clean water for poultry feeding.
6. Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.


Features:

1. Carbon steel sprayed with plastic housing;
2. Built-in PSA high purity twelve tower oxygen sieve;
3. Built-in  of product - Air cooling Ceramic ozone tube with high frequency electric board, high ozone concentration and stable ozone capacity, long life time;
4. Built-in Oil-free air compressor;
5. Built-in Air dryer and filters. To supply cool, dry, clean air source for air compressor and PSA oxygen concentrator;
6. Manual control, easy operation and maintenance.




Features:
1. Built in Domestic ed Product -Air cooling ceramic ozone generator
2. Built in Automatic air dryer, Feed dry air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. No breakdown with easy operation and maintenance.



Specifications



Item

Unit

NT-YFC5G

NT-YFC10G

NT-YFC15G

NT-YFC20G

NT-YFC30G

Oxygen flow rate

LPM

3

3.5

5

8

10

Ozone concentration

Mg/L

48.5~52.3

48.5~52.3

49.5~51.2

38.9~41.7

53.2~56.1

Ozone output

G/Hr

5

10~11

14.8~15.4

18.6~20

32~34

Power

KW

≤0.48

≤0.81

≤0.924

≤1.00

≤1.23

Current

A

2.2

3.6

4.2

4.5~4.7

5.6±5%

Voltage

V

220V/50HZ

NW

KG

64

86

89

92

97

Size

cm

45x50x84

50×66×95

45*93*118




Question and answer

♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dead reported caused by ozone poisoning.

♦ Does the ozone generator work efficiently ?

Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short


Quality control

Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.


After sales service

We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.

Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
