Home ProductsLarge Ozone Generator

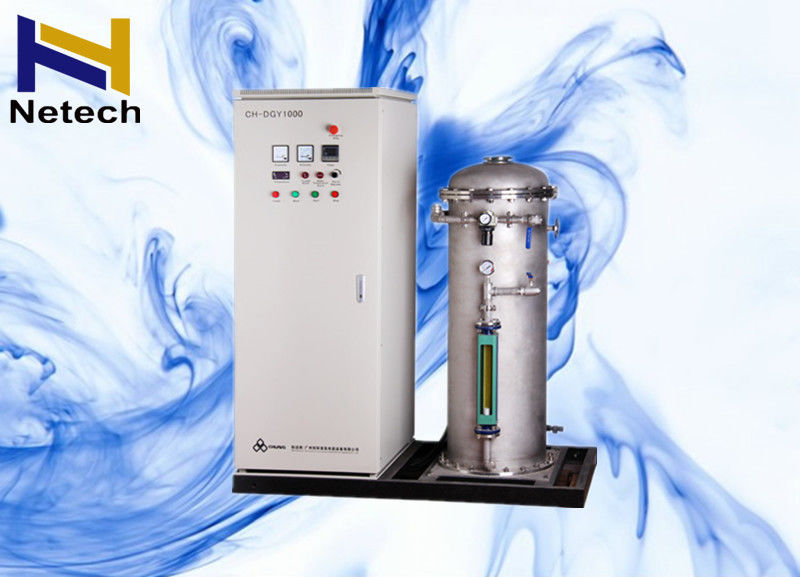

Large Ozone generator KG Water Ozonator

Large Ozone generator KG Water Ozonator

    • Large Ozone generator KG Water Ozonator
  • Large Ozone generator KG Water Ozonator

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: Netech
    Model Number: NT-DGY1.0

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: For futher discussion
    Packaging Details: Safe double carton package with foam inside for protection
    Delivery Time: 40 working days after payment confirmed
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Ozone Output: 1,078 G/Hr Gas Feed: Oxygen Source
    MOQ: 1 Set Ozone Concentration: 80-100MG/L
    Power Supply Voltage: 380 3PH 50HZ Cooling Water Flow: 1.2-1.5 M3/HKGO3
    High Light:

    longevity ozone generators

    ,

    high concentration ozone generator

    Large Ozone generator KG Water Ozonator







    1Applications

    Ozone be used in chemical, petroleum, papermaking, textile, pharmaceutical, fine chemical and flavors and fragrances industry as the oxidant, catalyst. Its super-oxidation capacity and easy to cut off the associative key of Alkenes, Alkynes, and Benzene organics, increase the process oxidation, synthesis of new compounds. Because the high-speed, high efficiency, low energy consumption, ozone being more and more popular for industrial and scientific research.

    Recently years, ozone is widely used in drinking water treatment, industrial sewage water treatment as it has the ability of high kill rate of bacteria, viruses and other microorganisms with high speed, and complete removing the organic compounds and other pollutants without creating secondary pollution, also can reduce the biological oxygen demand (BOD) and chemical oxygen demand (COD), remove nitrite, suspended solids and decolorization in water.



    2Technical Description

    1. Use enamel tubes for the core parts of ozone generator. The anti-force capability of resistant electricity is much better than glass and ceramic tubes.

    2. In order to ensure the safety and continuously operating of ozone discharge, each discharge cell is equipped with separated safety appliance. Single discharge unit failure does not affect the normal operation of other units.



    3. Discharge chamber

    1. Use stainless steel for the case, resistant to rust & corrosion, and can effectively prevent the cooling water fouling.



    4. High frequency of power supply

    1. Precise setting the Voltage and Working frequency. Output frequency resolution can be up to ± 0.1Ht. Voltage Precision ±1V.

    2. Has a perfect overload, automatic current-limiting, overpressure, short circuit, lack of phase and power-off protection.

    3. SPWM modulation technology. Power factor COSθ can be 0.9.



    5. High voltage transformer

    1. Using Mn-Zn ferrites for magnetic core. Small wastage of iron core / low Resistivity / low temperature coefficient / high rate of dynamic permeability under high frequency working condition.

    2. Using special cables of high frequency & stranded conductor to reduce the skin effect of high-frequency current.





    NT-DGY 1.0 1KG Ozone System Technical Parameters:



    Item NT-DGY1.0 Ozone Generator
    Ozone Output 1,078 G/Hr
    Ozone Concentration 80-100MG/L
    Power Supply Voltage 380 3PH 50HZ
    Power 8-10KW/HKGO3
    Operating Voltage 3800V-4200V
    Working Frequency 800 Hz
    Oxygen Feed Flow Rate 8-10NM3/HKGO3
    Air Source Dew Point ≤-45℃
    Working Pressure of Discharge chamber 0.05-0.1Mpa
    Outlet Air Temperature ≤30℃
    Inlet Cooling Water Temperature ≤20℃
    Cooling Water Temperature Rise 4-6℃
    Cooling Water Flow 1.2-1.5 M3/HKGO3


    Remark:Different working condition there will be10%-20% different of ozone capacity.



    Why choosing us?



    1.Having 10 years production experienced .We are trusty business partner.

    2.Quality Controlled:Quality Control personnel check the quality at every

    stage of production, from the incoming raw materials to the finished product.

    3.We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.

    5.We supply OEM service according to customers' requests and give out professional suggestions.



    Distributors Offer : Welcome to be our distributor .

    We are the trusty partner! Buy base on the trust !
