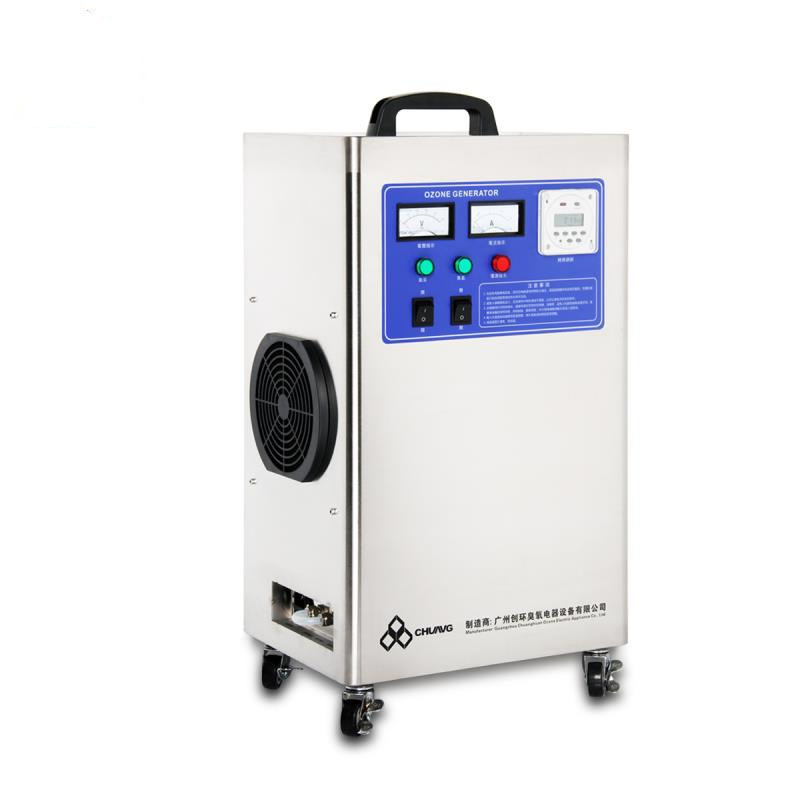

Waste Water Swimming Pool Ozone Generator

Waste Water Swimming Pool Ozone Generator

  • High Light

    ozone generator swimming pool

    ,

    ozone generator water treatment swimming pools

    ,

    air cooling swimming pool ozone generator

  • Gas Source
    Oxygen
  • Oxygen Flow Rate
    1-18LPM
  • Material
    Stainless Steel
  • Cooling
    Air Cooling
  • Power Supply
    220V,50/60HZ
  • Commodity
    Ozone Water System
  • Ozone Output
    2g/3g/5g/6g/10g/15g/20g
  • Size
    360 * 260 * 610 / 400 * 300 * 770 Mm
  • Function
    Air Purify, Water Treatment
  • Warranty
    1 Year
  • Place of Origin
    China
  • Brand Name
    Osunshine
  • Model Number
    CH-T
  • Minimum Order Quantity
    1
  • Price
    For further discussion
  • Packaging Details
    with foam in cartons or wooden case
  • Delivery Time
    3 to 5 working days
  • Payment Terms
    D/A D/P T/T L/C Credit Card Western Union Paypal
  • Supply Ability
    2000 sets per month

Waste Water Swimming Pool Ozone Generator

Waste Water Swimming Pool Ozone Generator
Waste Water Swimming Pool Ozone Generator 0


Model Number:                CH-T

Certification:                    domestic
Ozone output way:          air cooling

Warranty:                        one year warranty
Adjustable rate:               20-100% adjustable ozone

How to use ?

1. Before use this machine, put it in a stable flat place which can hold its weight.

2. Use the power equipped with the machine;

3. The machine use for air purification, firstly attach the silicone tube into the

ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5. When use for room air purification, it requires nobody is present, after 30

minutes people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone

tube and put into the water.

  7. Attention,the machine should be placed higher than the water, incase that the water reflux occur.




Control panel:



Voltmeter, Ampmeter, Switch, Timer,

Working light, Power light etc.

 Timer: One or Two recycle working time



Applications:


1. treatment industry: clean sickroom, operating room, treatment equipment, aseptic room, etc
2. Fruits and vegetables: keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacterias , clean production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacterias, clean production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacterias ,clean water for poultry feeding.
6. Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.
Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Virus to fresh air.
Water purifier: clean production Water supply.
7. Bottle Water, Domestic Water, Well Water, Pool Water cleanion & clean



Features:
1. Builted in Domestic ed Product -Air cooling ceramic ozone generator
2. Builted in Automatic air dryer, Feed dryed air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. No breakdown with easy operation and maintenance.



Specifications



ItemUnitNT-T
2G3G5G6G10G15G20G
Oxygen flow rateLPM0.5~21~31.2~31.5~3.52.4~63.6~93~10
Ozone concentrationMg/L28~5028~6532~6028~5632~6032~6038.9~42
Ozone outputG/Hr1.5~3.04~5.04.3~5.75.0~5.88.6~14.513~1718.6~20
PowerW115135160185260330400
Air flow rate (Suggested)LPM40~6050~7550~90
Compressed air pressureMpa0.025
Fuse of power supplyA3555
Sizecm36×26×6140×30×77
Net Weightkg11.2511.3011.50182035



Question and answer

♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dead reported caused by ozone poisoning.

♦ Does the ozone generator work efficiently ?

Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
bacimethrin efficiently and resolve the harmful material in a short


Quality control

Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.


After sales service

We provide 12month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.

Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dealth reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacimethrin efficently and resolve the harmful material in a short time.
