Ozone Parts Static Mixer Connected Behind Venturi Injector For Water Treatment

Place of Origin China
Brand Name Netech
Model Number UPVC
Minimum Order Quantity 1 piece
Price For further discussion
Packaging Details with froth in carton or wooden case
Delivery Time 1 to 2 working days after payment confirmed
Payment Terms Paypal,T/T,Western union,credit card, L/C
Supply Ability 3000 pcs per months
Product Details
Usage Extend Mixing Time And Distance For Ozone Mix In Water Material U-PVC +316/304
Size 1",1/2",3/4",2" MOQ 1 Piece
Length 200mm-500mm Application For Water Treatment
High Light

ozone accessories

,

ozone generator tube

Leave a Message
Product Description

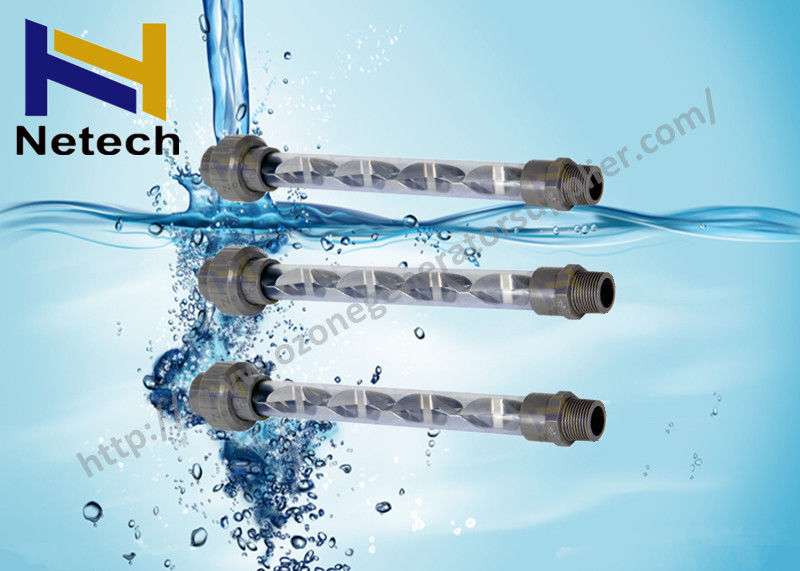

Ozone Parts Static Mixer Connected Behind Venturi Injector For Water Treatment​


Description:

The static mixer is a non-power efficient mixing equipment with very wide range of availability. With only few energy of the fluid to be converted to a mixed energy and by means of the precisely designed blades, the fluid will enter into the mixer tube, and result in the functions of split, reversed, mixed and rectifier so to achieve a perfect dispersion and mixture purpose. Compared with the traditional mixer, Static Mixer is with compact structure, low energy consumption, less investment, flexible operation and no maintenance requirement.

Operation Principle:
The Static Mixer does not require any external energy. Instead, the fluid mixture is just by means of the kinetic energy & potential energy of the fluid itself. Also, the blades inside the tube can make the fluid right & left rotation, constantly change the flow direction and thus make the fluid mixed fully and effectively.

Fetures:

Material:U-PVC or Stainless Steel
MOQ :1 piece
Usage:Extend mixing time and distance for ozone mix in water, to improve the mixing efficiency.
Application:water treatment,such as swimming pool,wastewater treatment,and so on.

1.U-PVC+316/304 Specification:


Material specificationLength (mm)
UPVC+316LDN15(1/2")-316L200
DN20(3/4")-316L250
DN25(1")-316L280
DN32(1-1/4")-316L320
DN40(1-1/2")-316L400
DN50(2")-316L500
UPVC+304LDN15(1/2")-304L200
DN20(3/4")-304L250
DN25(1")-304L280
DN32(1-1/4")-304L320
DN40(1-1/2")-304L400
DN50(2")-304L500


2. Stainless Steel Ozone Mixer(1-3tons):


Ozone Parts Static Mixer Connected Behind Venturi Injector For Water Treatment 0

Function:
Extend mixing time and distance for ozone mix in water, to improve More than 30% ozone dissolved in water.

ModelMaterialWater In/OutletLength
mm
Net weight
KG
NT- GH350SS304dia.25mm3500.98
NT- GH500SS304dia.25mm5001.29
NT- GH650SS304dia.25mm6501.6

3.U-PVC Triassic mixer:


Ozone Parts Static Mixer Connected Behind Venturi Injector For Water Treatment 1

Function:
Extend mixing time and distance for ozone mix in water, to improve the mixing efficiency.

ItemUnitModel
NT-H3NT-H8NT-H13NT-H20
Material/U-PVC
Input /output connectorInch3/411.52
Diametermm637590110
Lengthmm900110011001200
Mixing rangem>3>5>3>3
Flow ratem3/h1-33-88-1313-20


Ozone Parts Static Mixer Connected Behind Venturi Injector For Water Treatment 2
Why choosing us?
1.Having 10 years production experienced .We are trusty business partner.

2.Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.

3.Static Mixer Production Capacity: 3000 pcs per month.

4.We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.

5.We supply OEM service according to customers' requests and give out professional suggestions.

Distributors Offer : Welcome to be our distributor.

Ozone Parts Static Mixer Connected Behind Venturi Injector For Water Treatment 3
