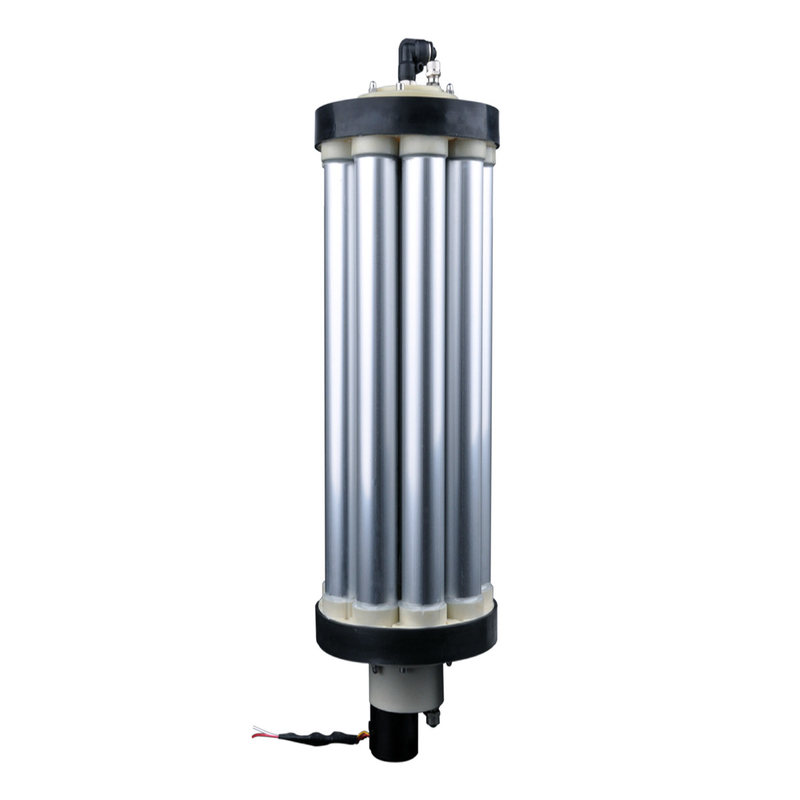

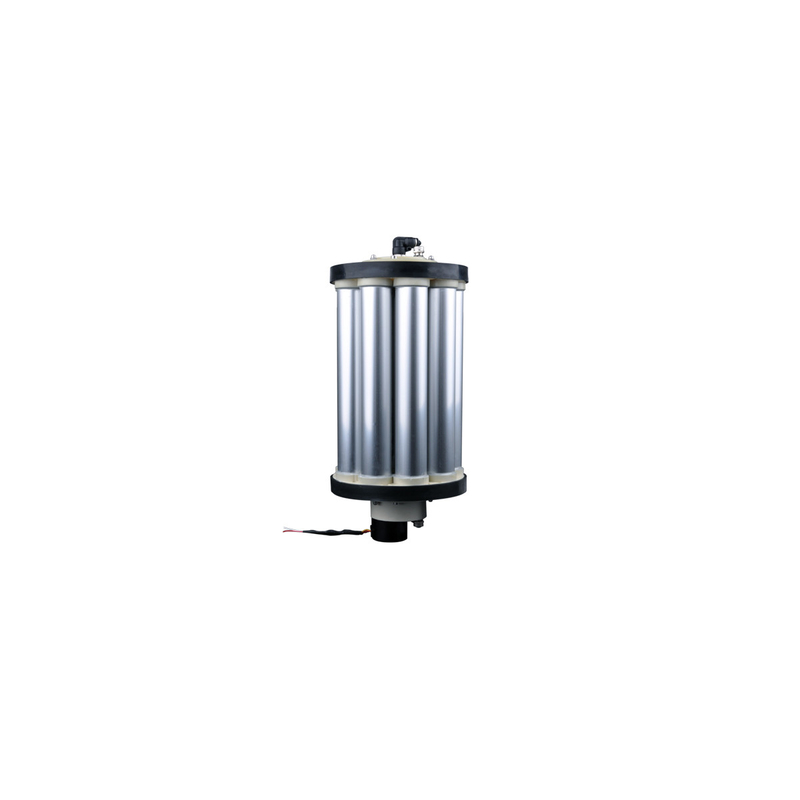

10L Industrial PSA Oxygen Machine Oxygen Concentrator Spare Parts Stable

10L Industrial PSA Oxygen Machine Oxygen Concentrator Spare Parts Stable

    • 10L Industrial PSA Oxygen Machine Oxygen Concentrator Spare Parts Stable
  • 10L Industrial PSA Oxygen Machine Oxygen Concentrator Spare Parts Stable

    Product Details:

    Place of Origin: China
    Brand Name: Netech
    Model Number: NTOX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 sets
    Price: 300USD-600USD
    Packaging Details: Cartons, Wooden cases
    Delivery Time: in 2 days
    Payment Terms: T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 89 sets one month
    Contact Now
    Detailed Product Description
    Gas Type: Oxygen Working Voltage: 110V/220V
    Guarantee: One Year Low-pressure: Oxygen Production Working Pressure Less Than 3 KG
    Output Type: Stable And Continuously Oxygen Output: 3LPM,5LPM,7LPM,10LPM,15LPM
    High Light:

    molecular sieve unit

    ,

    oxygen molecular sieve

                                10L industrial PSA oxygen machine oxygen concentrator spare parts



    Quick Detail



    oxygen generator concentrator
    1.About 90%±3% oxygen concentration
    2. Stable oxygen output,Durable
    3. Each tower working independently



    12 Towers Oxygen Concentrator



    1. ed products

    NT-OX series molecular sieve is an air separation plant which has already obtained domestic .



    2. Rational construction

    Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.



    3.Easy to control

    Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.



    4.The oxygen output is stable and continuously



    5.Low-pressure oxygen production working pressure 1.5-2 Bar.



    6. Working Voltage 110V/220V is available





    Sepcifications:



    Item Unit NTOX3AL NTOX5AL NTOX7AL NTOX10AL NTOX15AL
    Oxygen output LPM 3 5 7.5 10 15
    Oxygen concentration % 90%±3% 90%±3% 90%±3% 90%±3% 90%±3%
    Air flow rate LPM 36-45 60-75 90-115 90-115 180-200
    Pressure(inlet) Mpa 0.14-0.18 0.14-0.2 0.15-0.21 0.18-0.25 0.35
    Pressure(outlet) Mpa 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08
    Temperature indoor temperature
    Relative humidity % ≤ 70%±10%
    Noise Db ≤60 ≤60 ≤60 ≤60 ≤60
    Dimension mm Ф200×310 Ф200×430 Ф200×500 Ф200×560 Ф200×880
    Net weight kg 5.5 7 8 11 12.5


    Remark:

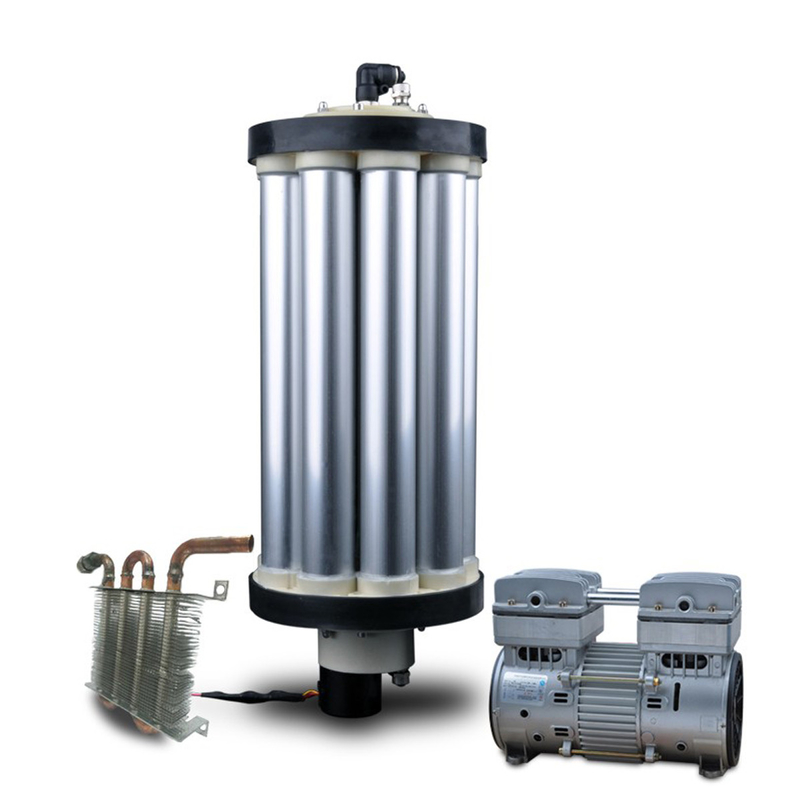

    1. One set including oxygen generating unit, air compressor, and chiller. (It also can be sold separately)

    2. NTOX15AL-2 comes with 2 units air compressors,2 chiller.
