3L 5L 7L 10L 15L Molecular Sieve Oxygen Concentrator Parts 110 Voltage For O3
-
High Light
oxygen concentrator repair
,oxygen molecular sieve
-
Gas TypeOxygen
-
Working Voltage110V/220V
-
GuaranteeOne Year
-
Low-pressureOxygen Production Working Pressure Less Than 3 KG
-
Output TypeStable And Continuously
-
Oxygen Output3LPM,5LPM,7LPM,10LPM,15LPM
-
Place of OriginGuangdong China
-
Brand NameNetech
-
Model NumberNT-OX
-
Minimum Order Quantity1 set
-
Price$ 600 - $ 1200 / set
-
Packaging DetailsSafe double carton package with foam inside for protection
-
Delivery Time3-5 working days after payment confirmed
-
Payment TermsL/C D/A D/P T/T Western Union Credit Card/ Paypal
-
Supply Ability1000 sets per month
3L 5L 7L 10L 15L Molecular Sieve Oxygen Concentrator Parts 110 Voltage For O3
3L 5L 7L 10L 15L Molecular Sieve Oxygen Concentrator Parts 110 Voltage For O3
Details:
| Products | oxygen generator concentrator |
| oxygen concentration | 90%±3% |
| Warranty | 1 year |
| Oxygen Output | 3L 5L 7L 10L 15L |
| technology | pressure swing absorbtion (PSA) |
| Types | twelve towers types |
12 Towers Oxygen Concentrator
1. NT-OX series molecular sieve is an air separation plant which has already obtained domestic .
2. Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
3.Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
4.The oxygen output is stable and continuously
5.Low-pressure oxygen production working pressure 1.5-2 Bar.
6. Working Voltage 110V/220V is available
Sepcifications:
|
Item |
Unit |
NTOX3AL |
NTOX5AL |
NTOX7AL |
NTOX10AL |
NTOX15AL |
|
Oxygen output |
LPM |
3 |
5 |
7.5 |
10 |
15 |
|
Oxygen concentration |
% |
90%±3% |
90%±3% |
90%±3% |
90%±3% |
90%±3% |
|
Air flow rate |
LPM |
36-45 |
60-75 |
90-115 |
90-115 |
180-200 |
|
Pressure(inlet) |
Mpa |
0.14-0.18 |
0.14-0.2 |
0.15-0.21 |
0.18-0.25 |
0.35 |
|
Pressure(outlet) |
Mpa |
0.06-0.08 |
0.06-0.08 |
0.06-0.08 |
0.06-0.08 |
0.06-0.08 |
|
Temperature |
℃ |
indoor temperature |
||||
|
Relative humidity |
% |
≤ 70%±10% |
||||
|
Noise |
Db |
≤60 |
≤60 |
≤60 |
≤60 |
≤60 |
|
Dimension |
mm |
Ф200×310 |
Ф200×430 |
Ф200×500 |
Ф200×560 |
Ф200×880 |
|
Net weight |
kg |
5.5 |
7 |
8 |
11 |
12.5 |
Remark:

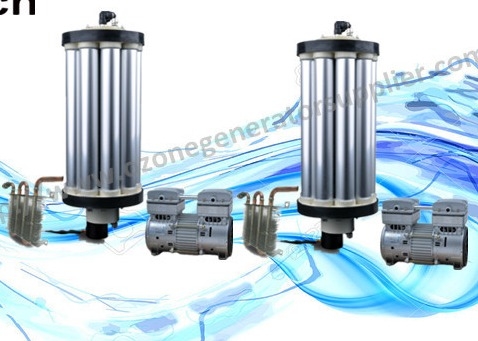

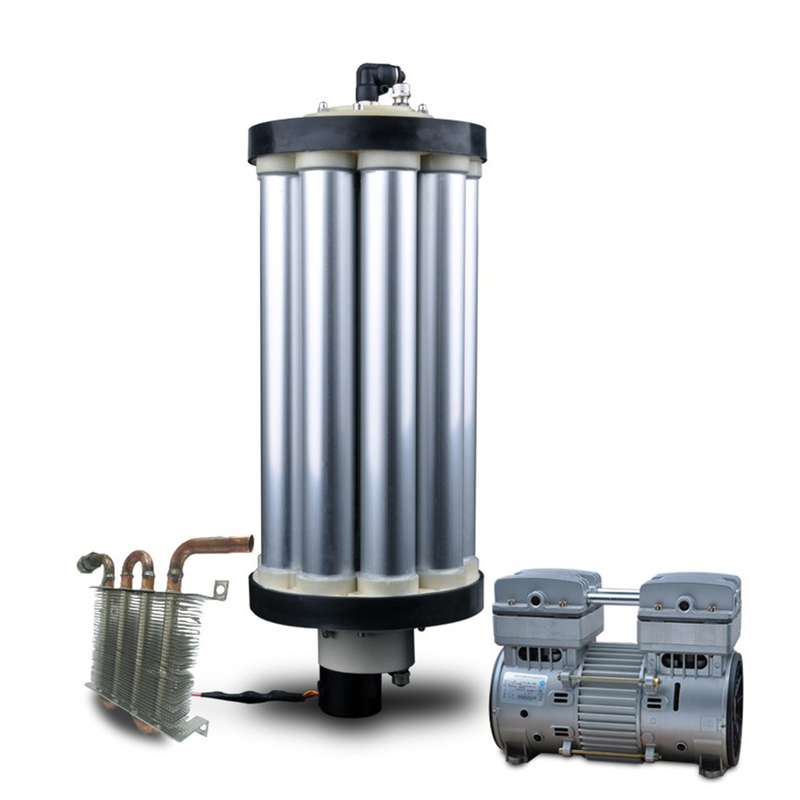

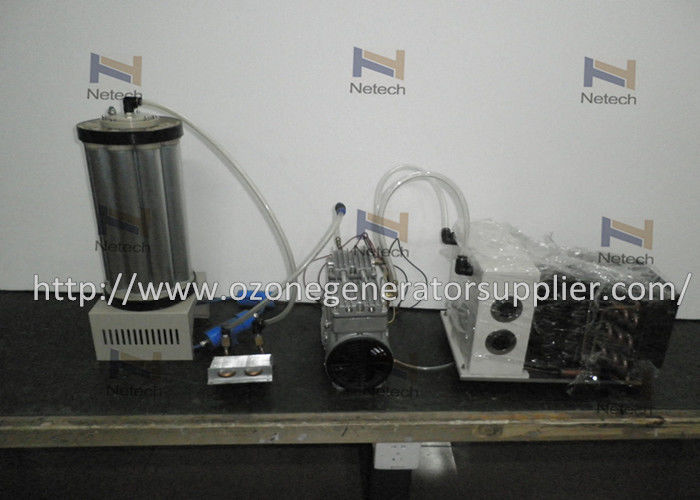

1. One set including oxygen generating unit, air compressor, and chiller. (It also can be sold separately)
2. NTOX15AL-2 comes with 2 units air compressors,2 chiller.
Appliance of oxygen machine:
• Welding / Brazing Furnace Enrichment
• Fermentation Glass Industry
• Fish Farming Ozone Generator
• Sewage Treatment Pulp & Paper
• Chemical Oxidation Rough Cutting
• Battery Manufacture Melting
• Mini-Steel Mills Cement & Lime Kilns
• Metal Spraying Copper Smelting
Our products are sold all over the world, you can rest assured.
