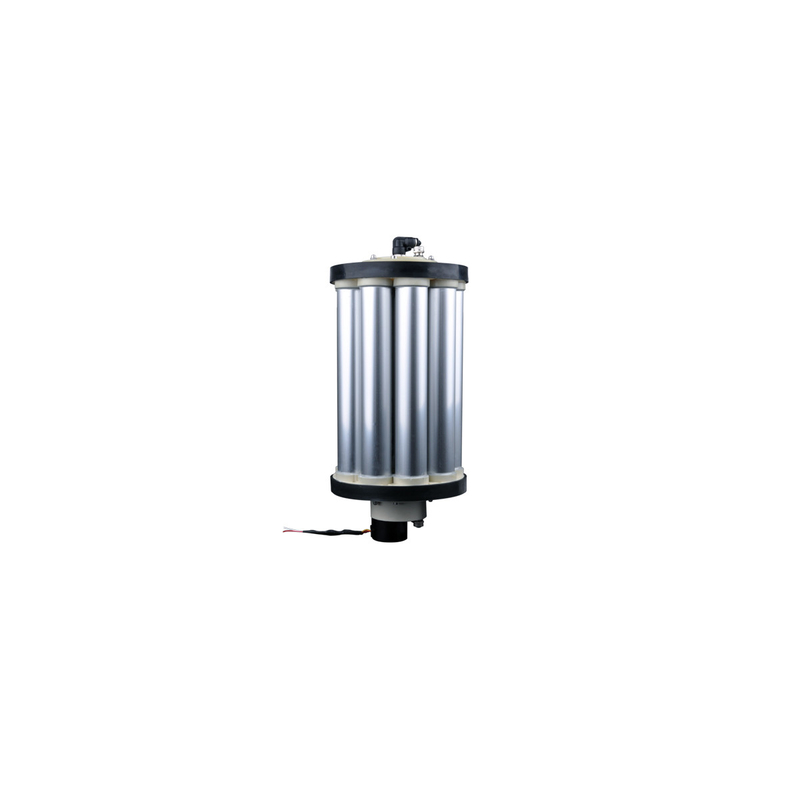

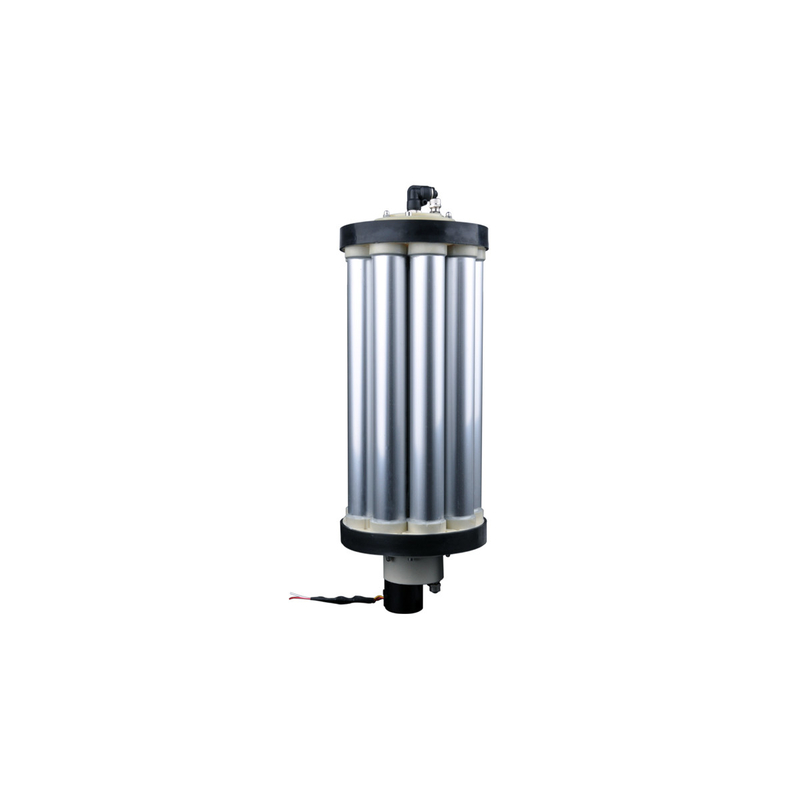

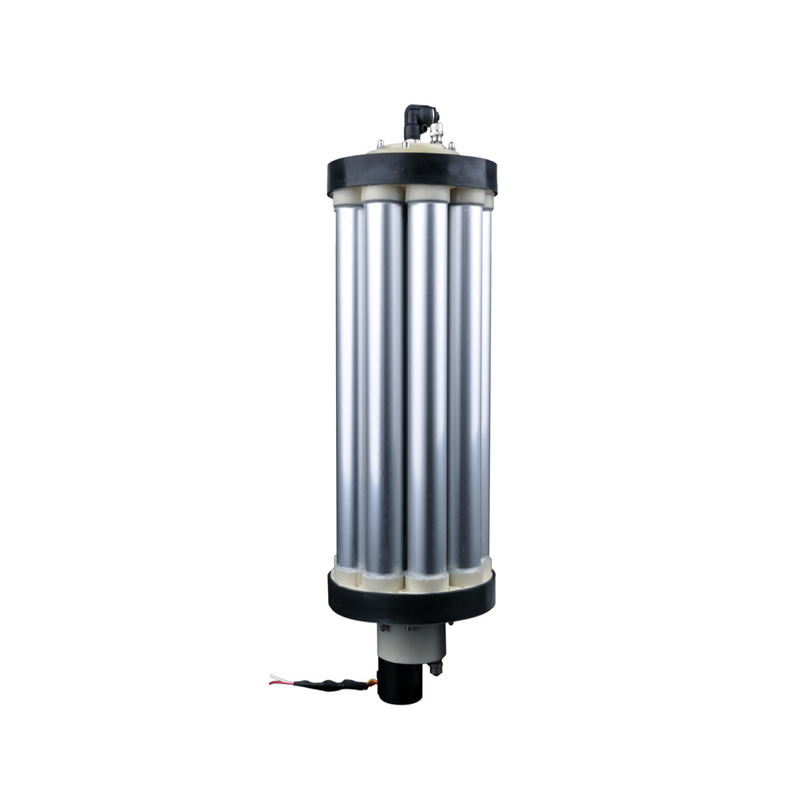

5L Industrial PSA Oxygen Machine Parts Oxygen Concentrator Spare Parts

5L Industrial PSA Oxygen Machine Parts Oxygen Concentrator Spare Parts

  • High Light

    molecular sieve unit

    ,

    oxygen molecular sieve

  • Gas Type
    Oxygen
  • Working Voltage
    110V/220V
  • Guarantee
    One Year
  • Low-pressure
    Oxygen Production Working Pressure Less Than 3 KG
  • Output Type
    Stable And Continuously
  • Oxygen Output
    3LPM,5LPM,7LPM,10LPM,15LPM
  • Place of Origin
    China
  • Brand Name
    Netech
  • Model Number
    NTOX
  • Minimum Order Quantity
    1 sets
  • Price
    300USD-600USD
  • Packaging Details
    Cartons, Wooden cases
  • Delivery Time
    in 2 days
  • Payment Terms
    T/T, Western Union, MoneyGram, Paypal
  • Supply Ability
    89 sets one month

5L Industrial PSA Oxygen Machine Parts Oxygen Concentrator Spare Parts

                            5L Industrial PSA Oxygen Machine Oxygen Concentrator Spare Parts



Quick Detail



oxygen generator concentrator
1.About 90%±3% oxygen concentration
2. Stable oxygen output,Durable
3. Each tower working independently



12 Towers Oxygen Concentrator



1. ed products

NT-OX series molecular sieve is an air separation plant which has already obtained domestic .



2. Rational construction

Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.



3.Easy to control

Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.



4.The oxygen output is stable and continuously



5.Low-pressure oxygen production working pressure 1.5-2 Bar.



6. Working Voltage 110V/220V is available





Sepcifications:



Item Unit NTOX3AL NTOX5AL NTOX7AL NTOX10AL NTOX15AL
Oxygen output LPM 3 5 7.5 10 15
Oxygen concentration % 90%±3% 90%±3% 90%±3% 90%±3% 90%±3%
Air flow rate LPM 36-45 60-75 90-115 90-115 180-200
Pressure(inlet) Mpa 0.14-0.18 0.14-0.2 0.15-0.21 0.18-0.25 0.35
Pressure(outlet) Mpa 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08
Temperature indoor temperature
Relative humidity % ≤ 70%±10%
Noise Db ≤60 ≤60 ≤60 ≤60 ≤60
Dimension mm Ф200×310 Ф200×430 Ф200×500 Ф200×560 Ф200×880
Net weight kg 5.5 7 8 11 12.5


Remark:

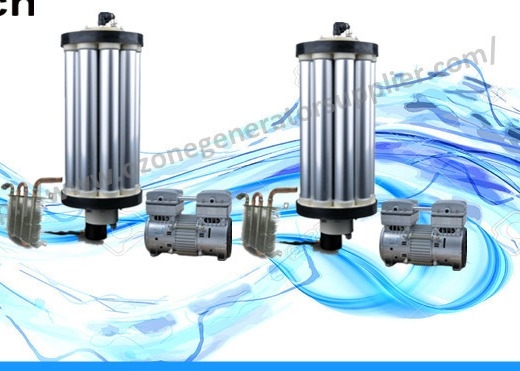

1. One set including oxygen generating unit, air compressor, and chiller. (It also can be sold separately)

2. NTOX15AL-2 comes with 2 units air compressors,2 chiller.
