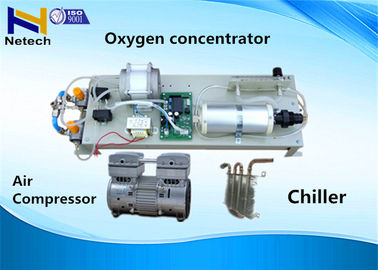

3l 5l 8l Oxygen Concentrator Parts With Air Compressor , Chiller For O3 Machine

3l 5l 8l Oxygen Concentrator Parts With Air Compressor , Chiller For O3 Machine

Products - Oxygen Concentrator Parts
  • High Light

    molecular sieve unit

    ,

    oxygen molecular sieve

  • Oxygen Output
    3LPM,5LPM,8LPM,10LPM
  • Oxygen Concentration
    90%±3%
  • MOQ
    1 Set
  • Warranty
    One Year
  • Oxygen Outlet Pressure
    0.06-0.08Mpa
  • Parts With Shipping
    Air Compressor, Chiller
  • Place of Origin
    Guangdong China
  • Brand Name
    Netech
  • Model Number
    NT-OX
  • Minimum Order Quantity
    1 set
  • Price
    for futher discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    2-3 working days after payment confirmed
  • Payment Terms
    L/C D/A D/P T/T Western Union Credit Card/ Paypal
  • Supply Ability
    3000 sets per month

3l 5l 8l Oxygen Concentrator Parts With Air Compressor , Chiller For O3 Machine

  • 3l 5l 8l Oxygen Concentrator Parts With Air Compressor , Chiller For O3 Machine
  • 3l 5l 8l Oxygen Concentrator Parts With Air Compressor , Chiller For O3 Machine
  • 3l 5l 8l Oxygen Concentrator Parts With Air Compressor , Chiller For O3 Machine
  • 3l 5l 8l Oxygen Concentrator Parts With Air Compressor , Chiller For O3 Machine
Get Price Contact Now

3l 5l 8l Oxygen Concentrator Parts With Air Compressor , Chiller For O3 Machine​





Descriptions:

1. Simple structure, easy to operate, and stable oxygen output.

2. Material: molecular sieve; each unit can work independently, and oxygen output can reach to 3-10 LPM or higher.

3. With chiller for cooling air, no need additional refrigerant dryer for reducing cost.

4. Oxygen purity can up to 90+5%. Two oxygen cylinders exchange working, auto drain water, nitrogen and other impurities output.

5. Parts with shipping: air compressor, chiller.

6. Oxygen outlet pressure: 0.06-0.08Mpa.



Specifications:



Item Unit NT03L NT05L NT08L NT10L
Oxygen output LPM 3 5 8 10
Oxygen concentration % 90%±3%
Power W 280 450 / 650
Pressure(inlet) Mpa 0.18-0.2 0.2 0.2 0.2
Pressure(outlet) Mpa 0.06-0.08
Temperature ℃ indoor temperature
Relative humidity % ≤85%
Noise Db ≤ 55 ≤60 ≤70 ≤70
Dimension mm 550×160×80 550×180×80 610×290×120 610×310×120
Weight kg 9.25 16.70 18.50 19.10


Noted:

Prices are including oxygen generating unit, air compressor, and chiller.

And it also can sold separately according to customers demand


Appliance of oxygen machine:


•  Fermentation Glass Industry
•  Fish Farming Ozone Generator
•  Sewage Treatment Pulp & Paper
•  Metal Spraying Copper Smelting

• Supply oxygen for ozone generator



Why choosing us?



1.Having 10 years production experienced .We are trusty business partner.

2.Quality Controlled:Quality Control personnel check the quality at every stage

of production, from the incoming raw materials to the finished product.

3.NT-OX Production Capacity: 3000 pcs per month.

4.We have serial products: ozone tube ,UV water cleanrs, ozonegenerators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.

5.We supply OEM service according to customers' requests and give out professional suggestions.



Distributors Offer : Welcome to be our distributor .


3l 5l 8l Oxygen Concentrator Parts With Air Compressor , Chiller For O3 Machine 03l 5l 8l Oxygen Concentrator Parts With Air Compressor , Chiller For O3 Machine 1

 3l 5l 8l Oxygen Concentrator Parts With Air Compressor , Chiller For O3 Machine 2
