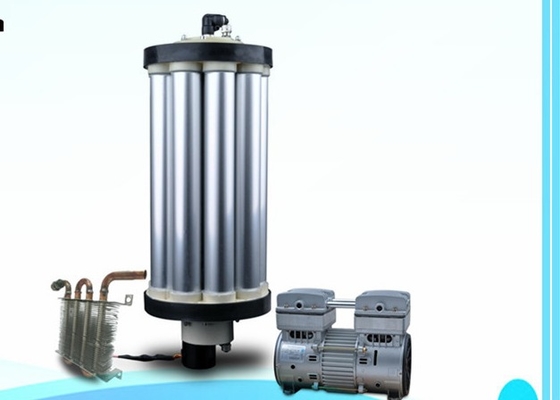

3LPM PSA Oxygen Concentrator Parts For Feeding Ozone Generator

3LPM PSA Oxygen Concentrator Parts For Feeding Ozone Generator

  • High Light

    oxygen concentrator repair

    ,

    oxygen molecular sieve

  • Material
    Molecular Sieve
  • Oxygen Output
    3LPM To 15LPM
  • Usage
    For Air And Water
  • Weight
    20kg
  • Noise
    Smaller Than 60db
  • Quality
    Very Good
  • Voltage
    220 110
  • Concentration
    95%
  • Place of Origin
    Guangdong China
  • Brand Name
    Netech
  • Model Number
    NT-OX
  • Minimum Order Quantity
    1 set
  • Price
    $380- $850
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    5-10 days after payment confirmed
  • Payment Terms
    L/C D/A D/P T/T Western Union Credit Card/ Paypal
  • Supply Ability
    1000 sets per month

3LPM PSA Oxygen Concentrator Parts For Feeding Ozone Generator

Very good quality 3LPM PSA oxygen concentrator parts for feeding ozone generator
Quick Detail



oxygen generator concentrator
1. About 95% concentration
2. Stable oxygen output
3. Each tower working independently
4. high efficiency

5.Match with air compressor and chiller


Description



Warranty 1 year

Noise   ≤ 60Db

Application   oxygen increasing

Output    3L 5L 7L 10L 15L

outlet pressure    0.06~0.08Mpa

oxygen purity    3% + - 3%

technology  pressure swing absorbtion (PSA)

                        oxygen to water with extra air compressor to increase the pressure

   usage          increase oxygen in the air or water

                       humidity environment no problem ,with refrigerating dryer







Item Unit NTOX3AL NTOX5AL NTOX7AL NTOX10AL NTOX15AL
Oxygen output LPM 3 5 7.5 10 15
Oxygen concentration % 90%±3% 90%±3% 90%±3% 90%±3% 90%±3%
Air flow rate LPM 36-45 60-75 90-115 90-115 180-200
Pressure(inlet) Mpa 0.14-0.18 0.14-0.2 0.15-0.21 0.18-0.25 0.35
Pressure(outlet) Mpa 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08
Temperature indoor temperature
Relative humidity % ≤ 70%±10%
Noise Db ≤ 60 ≤ 60 ≤ 60 ≤ 60 ≤ 60
Dimension mm Ф200 * 310 Ф200 * 430 Ф200 * 500 Ф200 * 560 Ф200 * 880
Net weight kg 15.70 18.30 19.30 30.60 32.5



Instruction

12 Towers Oxygen Concentrator
1. ed products NT-OT series molecular sieve is an air separation plant which has already obtained domestic .
2. Rational construction Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
3. Easy to control Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
4. The oxygen output is stable and continuously
5. Low-pressure oxygen production working pressure less than 3 KG.


Appliance of oxygen machine:


•   Welding / Brazing Furnace Enrichment
•  Fermentation Glass Industry
•  Fish Farming Ozone Generator
•  Sewage Treatment Pulp & Paper
•  Chemical Oxidation Rough Cutting
•  Battery Manufacture Melting
•  Mini-Steel Mills Cement & Lime Kilns
•  Metal Spraying Copper Smelting






Quality control



Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.



After sales service



We provide 12 month free maintenance.

The buyer should return the product in the original conditions to us and should

bear the shipping costs for return.
