3LPM - 15LPM PSA Oxygen Unit Oxygen Generator For Aquaculture
oxygen concentrator-Netech.pdf
Description
Warranty: 1 year
Noise: ≤ 60Db
Application: oxygen increasing
Output: 3L 5L 7L 10L 15L
technology: pressure swing absorbtion (PSA)
Usage: oxygen to water with extra air compressor to increase the pressure
increase oxygen in the air or water
humidity environment no problem ,with refrigerating dryer
Details:
1. ed products
NT-OX series molecular sieve is an air separation plant which has already obtained domestic .
2. Rational construction
Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
3.Easy to control
Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
4.The oxygen output is stable and continuously
5.Low-pressure oxygen production working pressure 1.5-2 Bar.
6. Working Voltage 110V/220V is available
Sepcifications:
Item | Unit | NTOX3AL | NTOX5AL | NTOX7AL | NTOX10AL | NTOX15AL |
Oxygen output | LPM | 3 | 5 | 7.5 | 10 | 15 |
Oxygen concentration | % | 90%±3% | 90%±3% | 90%±3% | 90%±3% | 90%±3% |
Air flow rate | LPM | 36-45 | 60-75 | 90-115 | 90-115 | 180-200 |
Pressure(inlet) | Mpa | 0.14-0.18 | 0.14-0.2 | 0.15-0.21 | 0.18-0.25 | 0.35 |
Pressure(outlet) | Mpa | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 |
Temperature | ℃ | indoor temperature | ||||
Relative humidity | % | ≤ 70%±10% | ||||
Noise | Db | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
Dimension | mm | Ф200×310 | Ф200×430 | Ф200×500 | Ф200×560 | Ф200×880 |
Net weight | kg | 5.5 | 7 | 8 | 11 | 12.5 |
Remark:

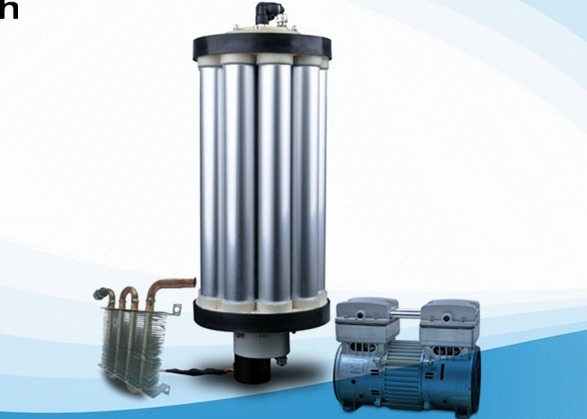

1. One set including oxygen generating unit, air compressor, and chiller. (It also can be sold separately)
2. NTOX15AL-2 comes with 2 units air compressors,2 chiller.

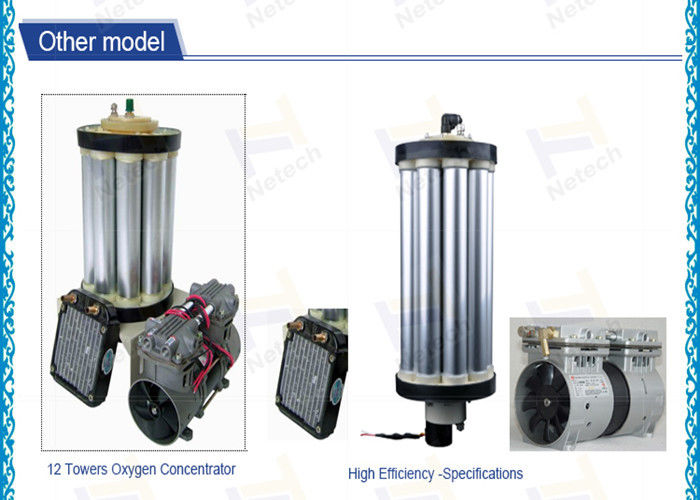

Other Products:
Two Towers Oxygen Concentrator
| Item | Unit | NT03L | NT05L | NT08L | NT10L |
| Oxygen output | LPM | 3 | 5 | 8 | 10 |
| Oxygen concentration | % | 90%±3% | |||
| Power | W | 280 | 450 | / | 650 |
| Pressure(inlet) | Mpa | 0.18-0.2 | 0.2 | 0.2 | 0.2 |
| Pressure(outlet) | Mpa | 0.06-0.08 | |||
| Temperature | ℃ | indoor temperature | |||
| Relative humidity | % | ≤85% | |||
| Noise | Db | ≤ 55 | ≤60 | ≤70 | ≤70 |
| Dimension | mm | 550×160×80 | 550×180×80 | 610×290×120 | 610×310×120 |
| Weight | kg | 9.25 | 16.70 | 18.50 | 19.10 |
Appliance of oxygen machine:
• Fermentation Glass Industry
• Fish Farming Ozone Generator
• Sewage Treatment Pulp & Paper
• Mini-Steel Mills Cement & Lime Kilns
• Metal Spraying Copper Smelting
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
Our products are sold all over the world, you can rest assured.
