50000 Liters Venturi Air Injector Ozone Generator Parts Components For Drinking Water

50000 Liters Venturi Air Injector Ozone Generator Parts Components For Drinking Water

  • High Light

    ceramic ozone tube

    ,

    ozone generator tube

  • Material
    PVDF
  • Water Flow Rate
    0.05-50 M3/hr
  • Pipe Size
    1/4-2 Inch
  • Warranty
    1 Year
  • Type
    Venturi Tube/ozone Venturi Injector
  • Application
    Drinking Water Treatment
  • Color
    Black
  • Place of Origin
    Guangdong China
  • Brand Name
    Netech
  • Model Number
    A12057 - A58295
  • Minimum Order Quantity
    1 piece
  • Price
    For futher discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    2-7 days after payment confirmed
  • Payment Terms
    D/A, L/C, D/P, T/T, T/T, Western Union, Western Union, MoneyGram,paypal
  • Supply Ability
    2000 pieces per month

50000 Liters Venturi Air Injector Ozone Generator Parts Components For Drinking Water



50l 50000 Liters Venturi Air Injector Ozone Generator Parts For Drinking Water



Both Ozone and UV are well recognized methods for municipal drinking water treatment and cleanion. Each can be used for the inactivation of viruses, giardia, cryptospordium, bacteria and other microbial contaminants. While UV is limited to cleanion, ozone is also an effective treatment for taste, odor and color removal, iron and manganese reduction, as well as being a flocculating agent. Ozone and/or UV require a relatively short residence times for cleanion unlike chemicals such as chlorine and chlorine derivatives.



Function:


Venturi is designed to be used with ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucks the ozone/oxygen gases into the water flow.



Descriptions:

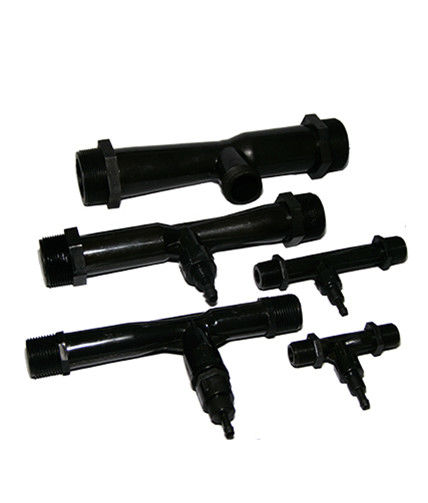

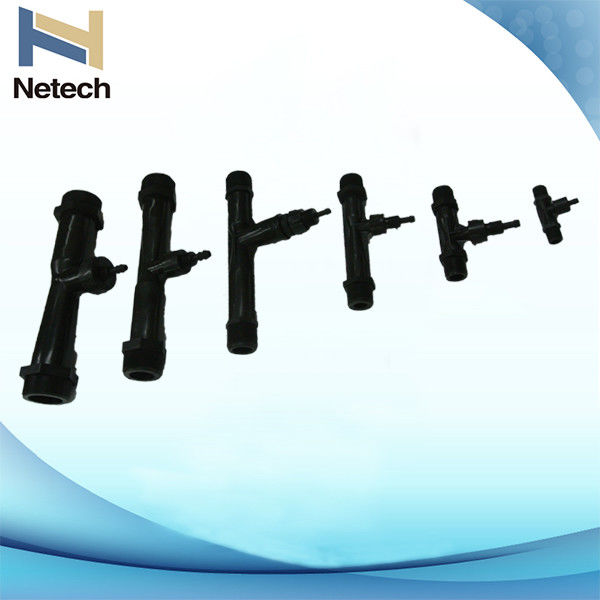

Ozone mixing water venturi injector nozzle/tube

PVDF(fluoroplastic)



Applications:


Usage: Gas and water mixing

Fertilizer and chemical injection through drip and sprinkler irrigation systems.
A venturi is a device which creates a vacuum when fluid flows through it. The fluid which creates the vacuum is known as the motive fluid. The motive fluid for irrigation injectors is the irrigation water itself. Vacuum created by the venturi sucks fertilizer or chemical into motive water.



Specifications:


Item Unit Model
A12057 A25100 A25152 A32235 A48275 A58295
Pipe Size Inch 1/4 1/2 3/4 1 1+1/2 2
Gas Inlet Inch 1/8 1/4 1/4 3/8 1/2 1/2
Water Flow m3/hr 0.05-0.25 0.10-1.0 1.0-3.0 3.0-10.0 10.0-25.0 25.0-50.0
Length mm 60 100 152 230 275 295
