Stainless Steel 2 - 20g Large Ozone Generator / Food Factory Water Treatment Equipment
Place of Origin | Guangdong China |
---|---|
Brand Name | Netech |
Model Number | NT-T-N |
Minimum Order Quantity | 1 set |
Price | For further discussion |
Packaging Details | Safe double carton package with foam inside for protection |
Delivery Time | 3-5 working days after received your payment |
Payment Terms | L/C D/A D/P T/T Western Union Credit Card/ Paypal |
Supply Ability | 100 sets per month |
Adjustable Range | 20%-100% | Ozone Output | 2g 3g 5g 6g 10g 15g 20g |
---|---|---|---|
Size | 360*260*610 / 400*300*770 Mm | Timer | 0-30mins Or Working Continuously |
Oxygen Flow Rate | 0.5-10LPM | Ozone Concentration | 28~50Mg/L |
Power | 115-400W | Air Flow Rate | 40-90LPM |
Compressed Air Pressure | 0.025Mpa | Material | Stainless Steel |
Cooling Way | Air Cooling | ||
High Light | high output ozone generator,high concentration ozone generator |

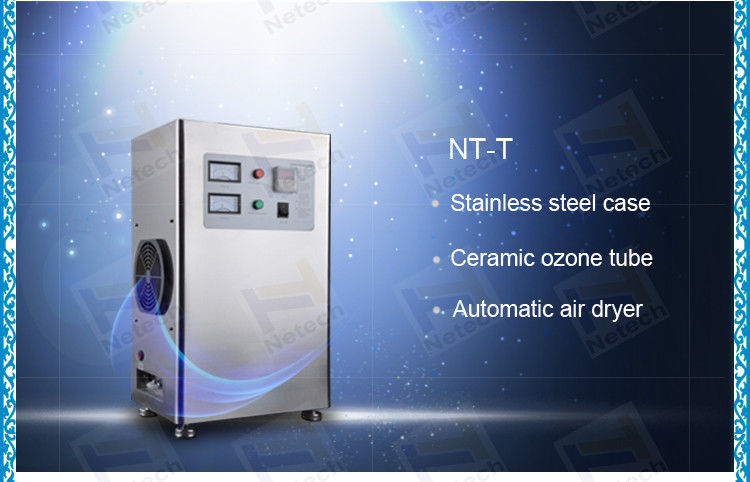

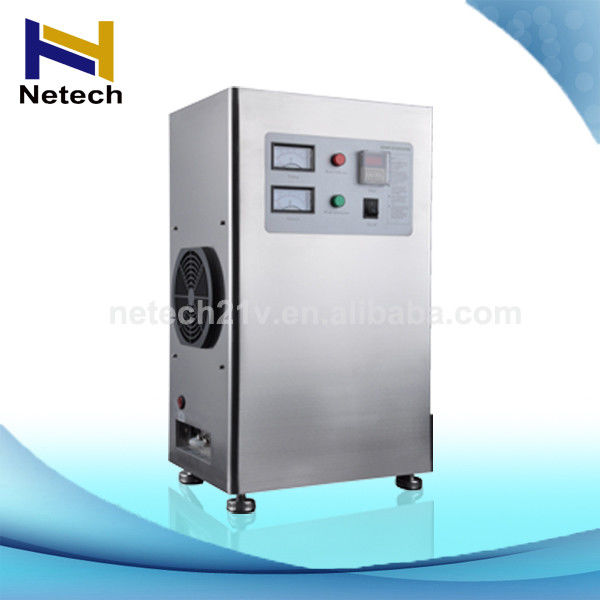

2-20g Ozone Generator Water Treatment Food Factory Water Treatment Equipment
Quick details
Brand Name: Netech
Model Number: NT-T-N
Certification: domestic
Ozone output way: air cooling
Warranty: one year warranty
Adjustable rate: 20-100% adjustable ozone
MOQ: 1 set
Description
Gas source | Oxygen |
Oxygen flow rate | 1-18LPM |
Material | Ceramic tube |
Cooling | Air cooling |
Power supply | 220V,50/60HZ |
Commodity | Ozone water system |
Ozone output | 2g/3g/5g/6g/10g/15g/20g |
Size | 360*260*610/400*300/770mm |
Control panel:
Voltmeter, Ampmeter, Switch, Timer, Working light, Power light etc.
Timer: One or Two recycle working time
Applications:
1. treatment industry: clean ward operating room, treatment equipment, aseptic room, etc
2. Fruits and vegetables: keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacterias , clean production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacteria, clean production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacteria ,clean water for poultry feeding.
6. Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.
Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Virus to fresh air.
Water purifier: clean production Water supply.
7. Bottle Water, Domestic Water, Well Water, Pool Water cleanion & clean
Features:
1. Built in Domestic ed Product -Air cooling ceramic ozone generator
2. Built in Automatic air dryer, Feed dry air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. No breakdown with easy operation and maintenance.
NT-T-N
Item | Unit | NT-T-N | ||||||
2G | 3G | 5G | 6G | 10G | 15G | 20G | ||
Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 |
Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 38.9~42 |
Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18.6~20 |
Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 |
Air flow rate (Suggested) | LPM | 40~60 | 50~75 | 50~90 | ||||
Compressed air pressure | Mpa | 0.025 | ||||||
Fuse of power supply | A | 3 | 5 | 5 | 5 | |||
Size | cm | 36×26×61 | 40×30×77 | |||||
Net Weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 |
Question and answer
♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dead reported caused by ozone poisoning.
♦ Does the ozone generator work efficiently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
