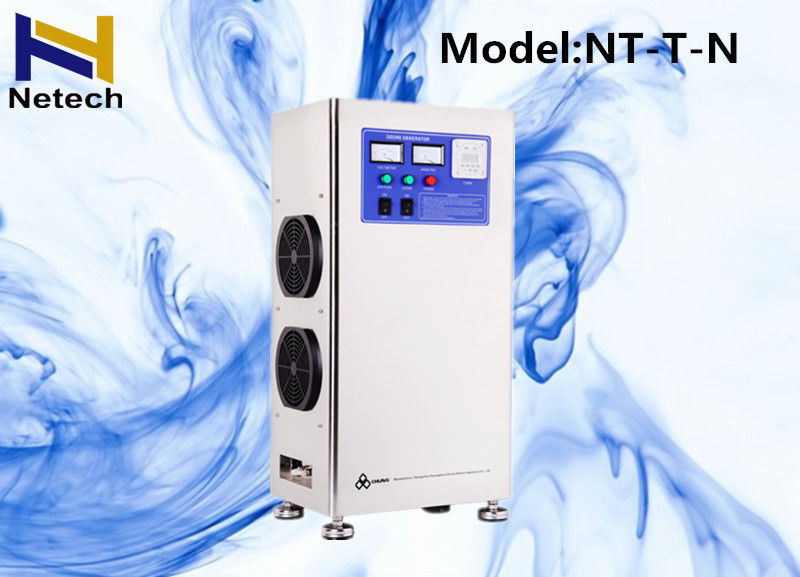

Ceramic Tube Ozone Generator For Air Purify And Washing ISO Certification 2G - 30G
Description:
| Gas source | Air source |
| Oxygen flow rate | 0.5-10 LPM |
| Material | Ceramic tube |
| Cooling | Air cooled |
| Power supply | 220V,50HZ |
| Ozone output | 2g/3g/5g/6g/10g/15g/20g/30g |
| Size | 360*260*610/400*300/770mm |
Timer: One or Two recycle working time
Features:
1. Builted in Domestic ed Product -Air cooling ceramic ozone generator
2. Builted in Automatic air dryer,Feed dryed air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. No breakdown with easy operation and maintenance.
Specification:
| Item | Unit | NT-T-N | |||||||
| 2G | 3G | 5G | 6G | 10G | 15G | 20G | 30G | ||
| Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 | 3-10 |
| Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 38.9~42 | 51~70 |
| Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18.6~20 | 12.6~30.6 |
| Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 | 1100 |
| Compressed air pressure | Mpa | 0.025 | 0.14 | ||||||
| Fuse of power supply | A | 3 | 5 | 5 | 5 | 10 | |||
| Size | cm | 36×26×61 | 40×30×77 | 40*28*101 | |||||
| Net Weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 | 33.5 | |
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
Applications:
1. treatment industry: clean sickroom, operating room, treatment equipment,aseptic room, etc
2. Fruits and vegetables:keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacterias ,clean production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacterias,clean production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacterias ,clean water for poultry feeding.
6. Commercial use in House,hotel,Office,KTV,Super Market,Fruit shop etc.
Air Purifier:Remove formaldehyde,benzene compounds,Smoke,Odors,Molds,Bactrias,Virus to fresh air.
Water purifier:clean production Water supply.
7. Bottle Water,Domestic Water,Well Water,Pool Water cleanion & clean
After sales service:
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
Our products are sold all over the world, you can rest assured.
