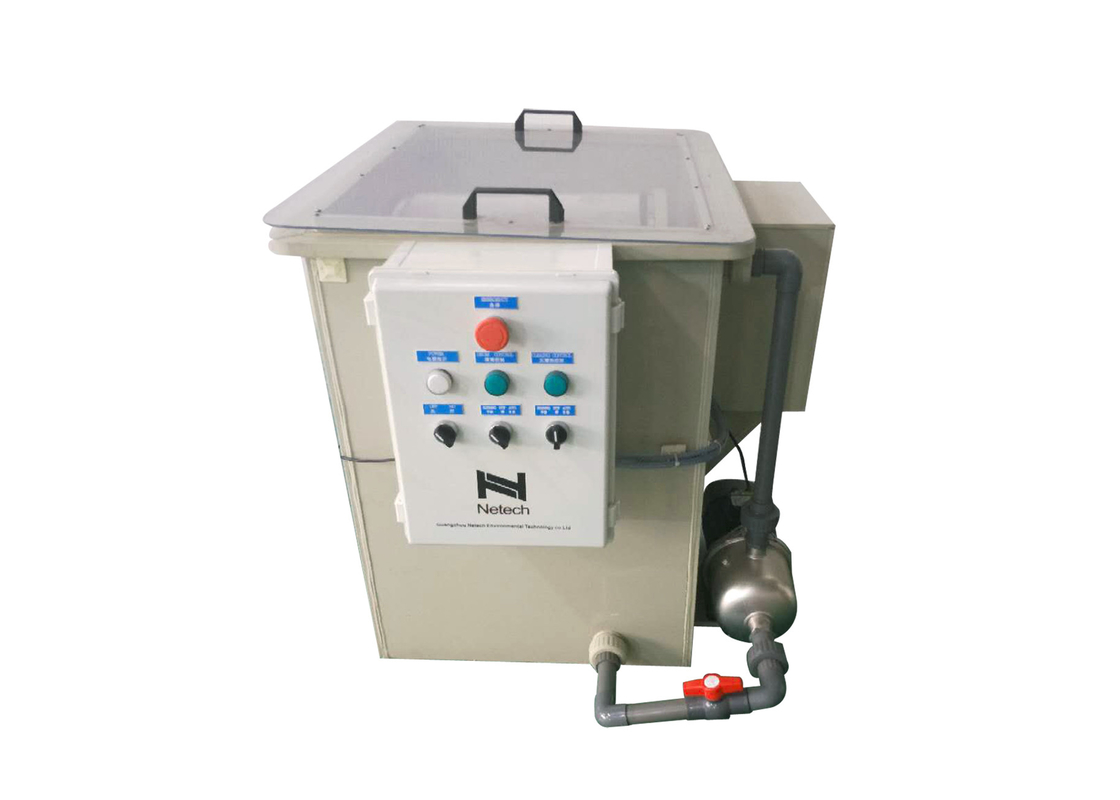

1.1KW Industrial Aquaculture Automatic Drum Filter For Raw Water Treatment

1.1KW Industrial Aquaculture Automatic Drum Filter For Raw Water Treatment

  • High Light

    molecular sieve zeolite

    ,

    aquarium protein skimmer

  • Products Name
    Automatic Drum Filter
  • Water Flow
    20-200T/Hr
  • Power
    0.55-1.1KW
  • Voltage
    380V
  • Capacity
    20 ~ 100M3/H (or Higher)
  • Warranty
    12 Months
  • Place of Origin
    China
  • Brand Name
    ozocenter
  • Model Number
    CH-PM
  • Minimum Order Quantity
    1 unit
  • Price
    For Further Discussion
  • Packaging Details
    with foam in carton or wooden case
  • Delivery Time
    3 to 8 working days
  • Payment Terms
    Paypal,T/T,Western union,credit card, D/P, D/A, L/C
  • Supply Ability
    1000 units per months

1.1KW Industrial Aquaculture Automatic Drum Filter For Raw Water Treatment

20T/H - 200T/H Industrial Aquaculture Automatic Drum Filter For Raw Water Treatment







Quick Detail



high efficiency drum filter

1. high efficiency

2. good quality

3. water output

4. Cheap price and high value





Product description:



NT-WLJ Series drum filter is composed by four parts: house, roller, back washing system, electric control system. Capacity: 20 ~ 100M3/H (or higher), use non-toxic seawater corrosion resistant high quality engineering plastic materials, and use 200 mesh (80 microns) stainless steel mesh to remove & separate suspended solids.



Working principle:

When the water containing particles of suspended solids enter into the drum, suspended solids are stainless steel filter retention, filtered water which does not contain suspended solids enter into water tank. When the suspended solids accumulate to a certain amount inside roller, it will reduce the filter permeable capacity, so increase the drum water level, when the water level reaches to the fixed high level, the water level auto-control system starts working, back washing pump and roller motor start working at the same time, and use high pressure water to wash running mesh. The suspended solids be washed into the dirt collection tank and then exhausted from outfall by high pressure water. When the mesh is clean, it will improve the filter permeable capacity and reduce the drum water level, when the water level reaches to the fixed low level, back washing pump and roller motor stop working, and drum filter will start the new working recycle.



Features:

1). Use with high quality plastic material and SS316L mesh, corrosion resistance and durable.

2). Use special made SS316L mesh with small size aperture, low resistance and high discharge capacity.

3). With auto back washing function to ensure system is working properly.

4). Low power consumption, high efficiency, easy operation and maintenance.



Product Appliance:

  1. Suitable used for pre-solid-liquid separation processing of aquaculture raw water treatment.
  2. Suitable used for pre-solid-liquid separation processing of aquaculture industrial water treatment.
  3. Widely used in various lines which required pre-solid-liquid separation. Such as urban sewage water, paper, textile, printing and dyeing, chemical and sewage etc.          Specifications:
Model Voltage Power Water flow (T/Hr) Water Input/Output Size
V Kw 75μm 38μm mm cm
CH-PM-20 380 0.55 20 10 Φ90Φ110 100×95×85
CH-PM-30 0.55 30 15 Φ90Φ110 115×95×85
CH-PM-40 0.55 40 20 Φ110Φ140 115×105×95
CH-PM-60 0.62 60 30 Φ140Φ160 140×105×95
CH-PM-80 0.62 80 40 Φ160Φ160 150×125×115
CH-PM-100 0.74 100 50 Φ160Φ200 170×125×125
CH-PM-150 1.1 150 75 Φ200Φ250 180×155×150
CH-PM-200 1.1 200 100 Φ250Φ250 195×165×165



It can be special made according to customer requirements.





Quality control



Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.





After sales service



We provide 12 month free maintenance.

The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
