0 - 5PPM Portable Other Ozone Generator Subsidiary Facilities / Ozone Detector

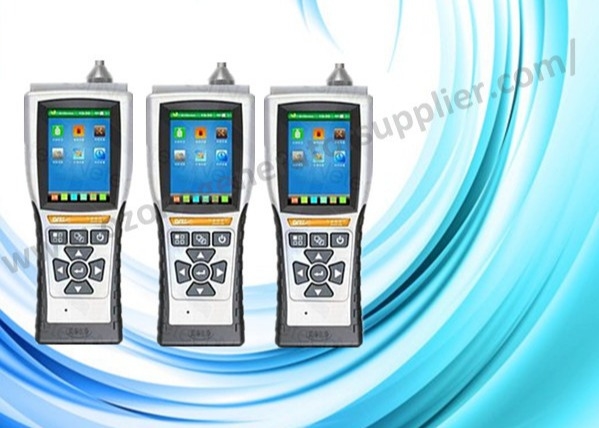

NT-8313 Pump-priming portable Ozone (O3) Gas Detector is detection device which can detect the ozone continuously. Instrumentation applies ARM with EFM of the 32 ultra-low-power. Sensor uses the world's most advanced imported electrochemical sensor O3 to keep the instrumentation fast, having accurate measurement, stable and well repeatable and to make instrument reaching the most international advanced and most stable gas detector and leak dector.
● Intelligent sensor platform is suitable for EC, PID and IR sensors.
●3.5 inch TFT screen, picture and text menu, support both English and Chinese
●Rechargeable lithium battery, can be used continuously for 12 hours
● Scrambling storage, can be stored for four months of testing data.
● Modular design, easy maintenance.
●Waterproof, shockproof, anti-corrosion, antimagnetic interference function
●To adjust the pump’ speed, clean the residual corrosive gas.
●Programmable modulation of high and low values, can be adapted to the detection of various environment.
●Dynamic prompt sensor, calibration expired and failure functions.
● Applicable of gas : O3(0—5 PPM)
●Sampling way : pump suction
●Indicate way: TFT color screen .
●Alarm: Audible alarm
●Keyboard: 8 keys
●Data records: 30 seconds interval can be stored for more than 4 months of records.
●Calibration: 2 point calibration, calibration value can be set.
●Operate environment: -20℃—55℃ .0%-95%RH(Non-condensing)
●Operate voltage: Built-in rechargeable lithium battery 3.7V, 3000mAh, non-replacement
●Charger: charger with USB interface
●Charge time: Less than 4 hours
●Continuous work hours: Full charge more than 12 hours

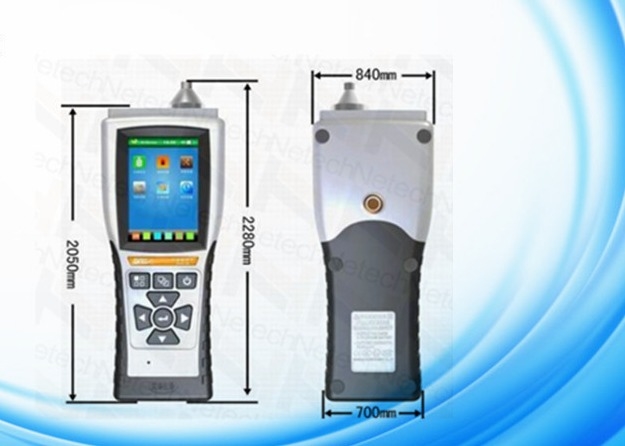

●Size: 228*84*50mm. Weight: 550G .Warranty:1year.
They are widely used in petroleum chemical industry, power industry, water treatment industry, the tobacco industry, pharmaceutical industry, food industry, coal, metallurgy, municipal gas, environmental monitoring and other occasions on-site testing.
Can be measured gas species (It need to option): CH2O, TVOC, CO, H2S, NO2, NO, SO2, CL2, NH3, H2, PH3, O3, F2, HF, HCL, HBR, C2H4O, COCL2, SIH4, CLO2, HCN, C2H4, SF6 and combustible gases.
