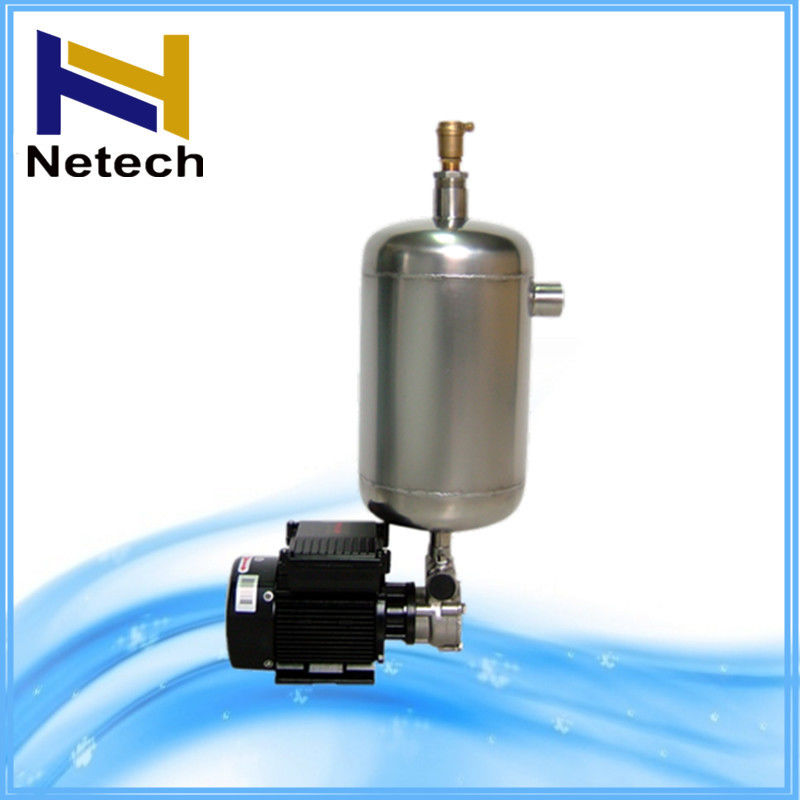

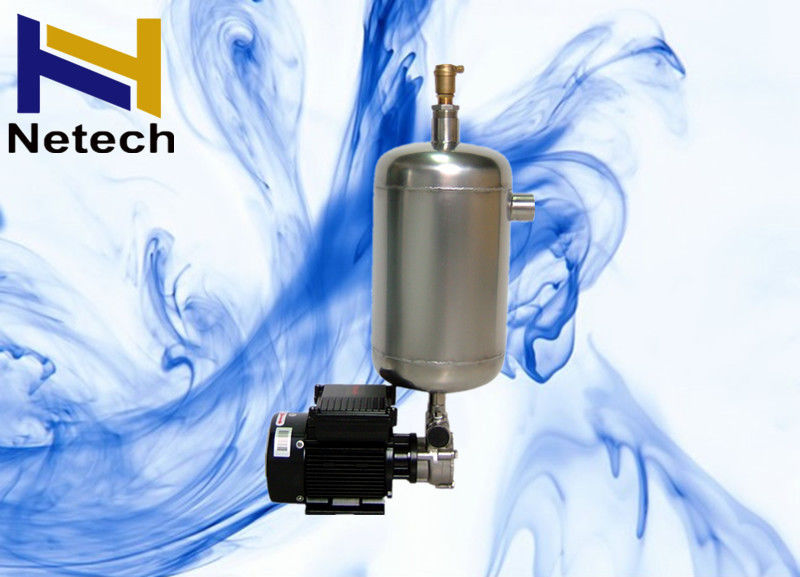

SS304 Negative Pressure Gas Liquid Mixing Pump For Wine Industry Water Treatment

SS304 Negative Pressure Gas Liquid Mixing Pump For Wine Industry Water Treatment

    • SS304 Negative Pressure Gas Liquid Mixing Pump For Wine Industry Water Treatment
    • SS304 Negative Pressure Gas Liquid Mixing Pump For Wine Industry Water Treatment
    • SS304 Negative Pressure Gas Liquid Mixing Pump For Wine Industry Water Treatment
  • SS304 Negative Pressure Gas Liquid Mixing Pump For Wine Industry Water Treatment

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: Netech
    Model Number: CH-P

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: It can be discussed
    Packaging Details: Safe double carton package with foam inside for protection
    Delivery Time: 3-5 working days after received your payment
    Payment Terms: D/A D/P T/T Western Union / Paypal
    Supply Ability: 300 units per month
    Contact Now
    Detailed Product Description
    Usage: Mixing Gas To The Water Voltage: 220V/380V
    Mixer Type: Static Mixers Tank Material: 304 SS
    Flow Rate: 1T/H 2T/H 6T/H 12T/H Mixing Efficiency: Up To 1PPM
    Mixing Type: Negative Pressure Additional Capabilities: Dissolve Ozone Into Water

    SS304 Negative Pressure Wine Industry Water Treatment Gas Liquid Mixing Pump



    Details:



    1. Mixing system is simple and it intakes Ozone gas to the pump and mix Ozone with liquid in the pump, while conventional system needs additional equipment like "ejector" and "static mixer" to make ozone water.



    2. Ozone dissolution ratio is more than 80~100% in case of out mixing system which is extremely high compared with conventional system. This dissolution ratio varies depending on water temperature, gas concentration, PH concentration etc.



    3. NT Mixng pump is most suitable to pressurize the air and liquid, and let the air dissolved into the liquid, compared with any other type of pumps and apparatus like atatic mixer.



    4. NT system does not use compressor, pressure dissolve tank, ejector and static mixer, which makes our system small in size and competitive in price. In case of conventional centrifugal pump method, the pump sucks the liquid and air, and mix them and transport them.



    5. Diameter for micro bubble: 20-30µ


    Working condition:

    PH: 3~9

    Highest environment temperature: 400C

    Liquid temperature:-150C--1200C





    Specifications:

    Item

    20NT-1SS

    20NT-1DS

    25NT-2SS

    25NT-2DS

    40NT-6SS

    50NT-12SS

    Head of delivery

    40M

    50M

    Flow rate

    1T/Hr

    2T/Hr

    6T/Hr

    12T/Hr

    Water input size

    0.75’’

    1’’

    1.5’’

    2’’

    Water output size

    0.5’’

    0.75’’

    1.2’’

    1.5’’

    Power

    0.55Kw

    1.1Kw

    3Kw

    5.5Kw

    Voltage

    380V

    220V

    380V

    220V

    380V

    380V

    Speed

    2900r/min

    Size of Tank

    Φ200×320mm (3mm thickness)

    Φ273×720mm (3mm thickness)


    SS304 Negative Pressure Gas Liquid Mixing Pump For Wine Industry Water Treatment

    SS304 Negative Pressure Gas Liquid Mixing Pump For Wine Industry Water Treatment





    Quality control

    Every procedure has personnel inspection.
    All the products must be tested and qualified before packaging.


    After sales service

    We provide 12 month free maintenance.
    The buyer should return the product in the original conditions to us and should
    bear the shipping costs for return.


    Question and answer

    1. Is ozone harmful to human body ?
    Once the ozone concentration fails to meet the hygiene and safety standard,
    we can notice with our sense of smell and dodge away or take actions to avoid
    further leakage.
    So far there is no one death reported caused by ozone poisoning.


    2. Does the ozone generator work efficently ?
    Undeniably, ozone can clean and remove odor and formaldehyde.
    It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
    bacteria efficently and resolve the harmful material in a short time.
