High Efficiency Micro Bubble Generator Pump For Gas - Liquid Mixing In Water Treatment

High Efficiency Micro Bubble Generator Pump For Gas - Liquid Mixing In Water Treatment

    • High Efficiency Micro Bubble Generator Pump For Gas - Liquid Mixing In Water Treatment
    • High Efficiency Micro Bubble Generator Pump For Gas - Liquid Mixing In Water Treatment
  • High Efficiency Micro Bubble Generator Pump For Gas - Liquid Mixing In Water Treatment

    Product Details:

    Place of Origin: China
    Brand Name: OzoCenter

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 520-7500 per set
    Packaging Details: Wooden Case
    Delivery Time: 5-8 working days
    Payment Terms: Western Union
    Supply Ability: 1500 Sets per month
    Contact Now
    Detailed Product Description
    Water Flow Rate: 1-50T/h OEM: Available
    Application: Swimming Pool;aquaculture;wastewater;drinking Water MOQ: 1 Set
    Keywords: Micro Bubble Pump;micro Bubble Generator Pump
    High Light:

    aquarium protein skimmer

    ,

    refrigerated air dryer

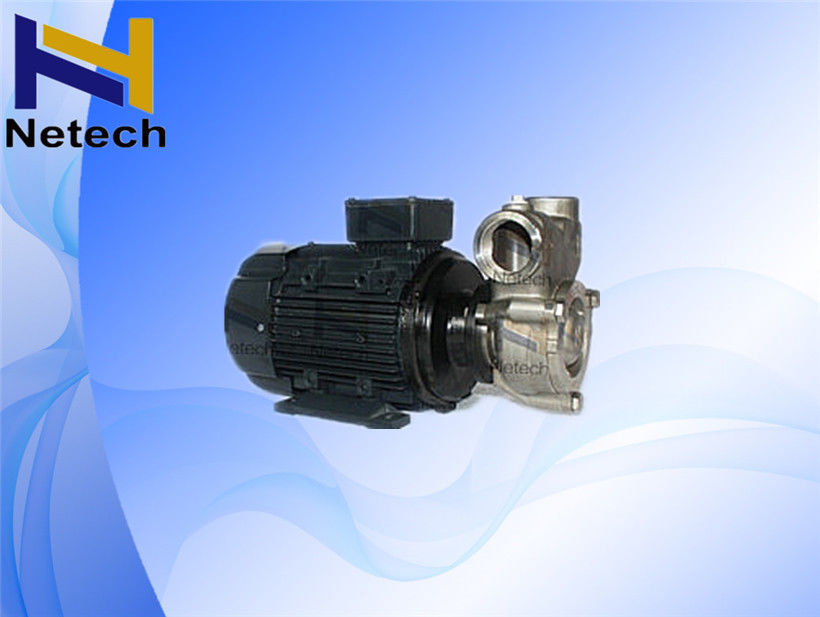

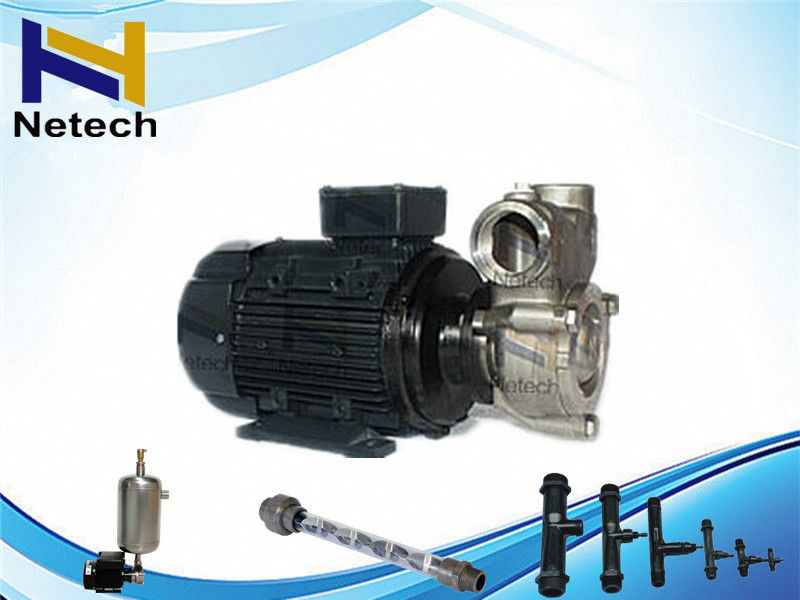

    High Efficiency Micro Bubble Generator Pump For Gas-Liquid Mixing In Water Treatment



    Micro bubble is a new kind of mixing technology. It can mix gas and water. The gas can be any gas, such as oxygen, ozone. The mixing efficiency is more than 90%


    The micro/nano bubble generator is using a simple method to solve micro bubbles in a liquid.
    This bubble generator uses the properties of the vortex pump turbine and effectively solves gas with a liquid or two liquids, and adding it under pressure into a process.

    A device that can be useful for efficient mixing and dissolving of the gaseous products in fluids. It is for this purpose equipped with a special impeller and can be used for continuous operation.





    Specification:

    Model Flow rate Specification The maximum head of delivery (m) flow rate (L/Min;M3/h) The flow rate of head delivery at 40M (L/min;m³/h) Maximum temperature resistance of material (℃)
    20WSS04 1T 380/50HZ; 0.37KW 45M

    12L/min

    0.72m³/h

    14L/min

    0.84m³/h

    120℃
    25WSS07 2T 380/50HZ; 0.75KW 50M

    17L/min

    1.02m³/h

    25L/min

    1.5m³/h

    32WSS15 3-4T

    380/50HZ

    1.5KW

    60m

    35L/min

    2.1m³/h

    52L/min

    3.12m³/h

    40WSS22 5-6T

    380/50HZ

    2.2KW

    50m

    82L/min

    4.92m³/h

    102L/min

    6.12m³/h

    50WSS75 10-15T

    380/50HZ

    7.5KW

    80m

    50L/min

    3.0m³/h

    150L/min

    9m³/h



    180℃

    65WSS110 25-30T

    380/50HZ

    11KW

    60m

    300L/min

    18m³/h

    500L/min

    30m³/h

    80WSS220 45-50T

    380/50HZ

    22KW

    60m

    650L/min

    39m³/h

    850L/min

    51m³/h



    Remark: 1T/2T voltage can custom made in 110V/60hz ,220V/50hz or 220V/60hz.
