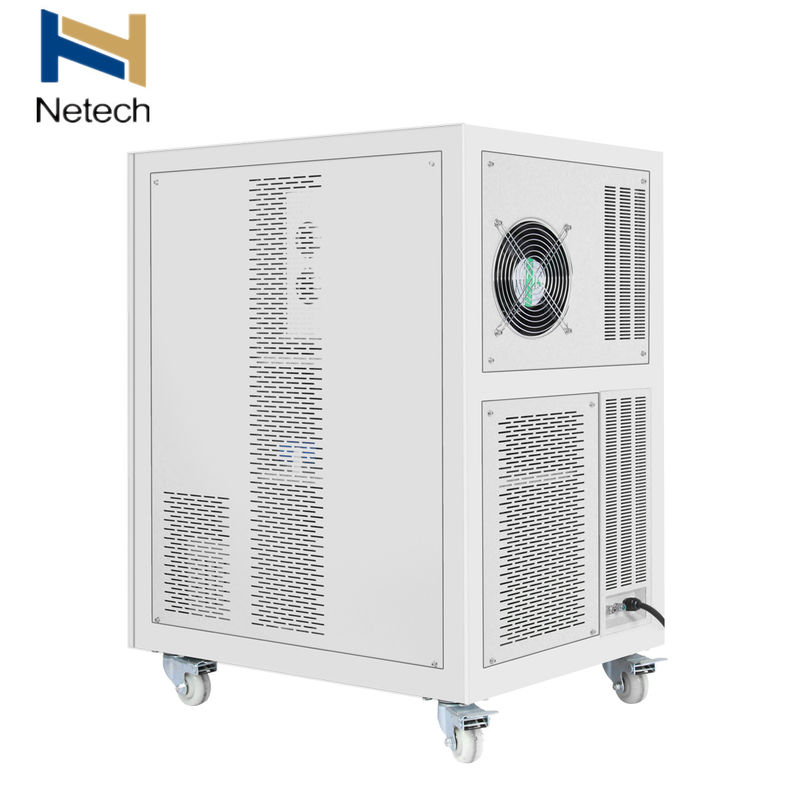

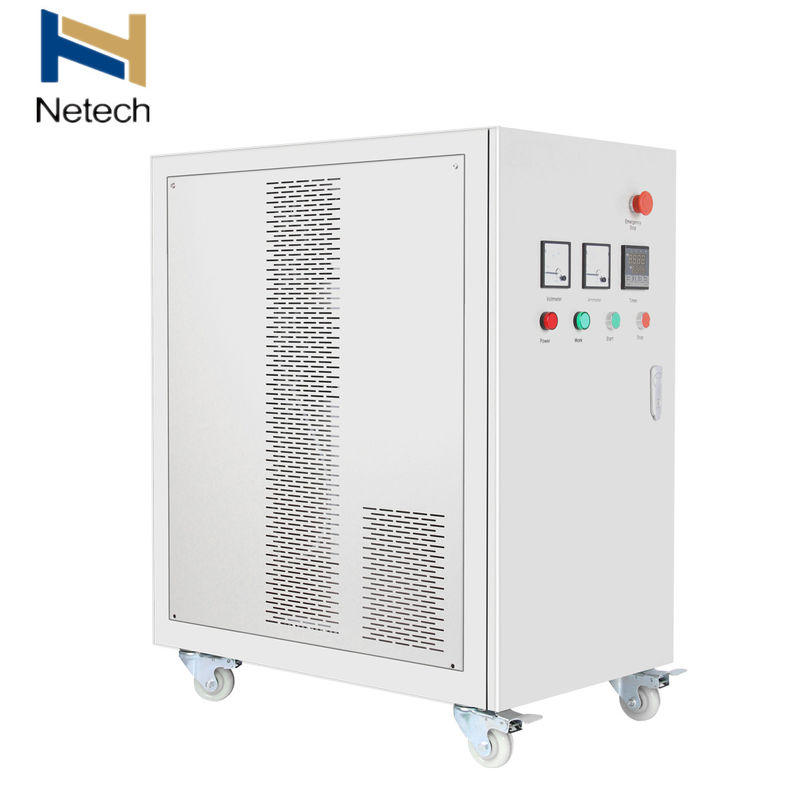

5g/Hr - 30g/Hr High Concentration Ozone Generator For Water Treatment

5g/Hr - 30g/Hr High Concentration Ozone Generator For Water Treatment

    • 5g/Hr - 30g/Hr High Concentration Ozone Generator For Water Treatment
    • 5g/Hr - 30g/Hr High Concentration Ozone Generator For Water Treatment
  • 5g/Hr - 30g/Hr High Concentration Ozone Generator For Water Treatment

    Product Details:

    Place of Origin: CHINA
    Brand Name: Netech
    Model Number: NT-YFC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: 500 to 3000USD
    Packaging Details: Pack with wooden case
    Payment Terms: D/A, L/C, T/T, D/P, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000 piece per month
    Contact Now
    Detailed Product Description
    Materia: Carbon Steel Ozone Tube: Air Cooling Ozone Ceramic Tube
    Ozone Output: 5g 10g 15g 20g 30g Ozone Adjuster: 20% To 100%
    Usage: Water Treatment Voltage: 220 110v
    Oxygen Flow Rate: 3LPM To10LPM Warranty: 12 Month
    High Light:

    spa necessities ozone generator


    ozone generator for fish farm

    5g/hr to 30g/hr very high concentration ozone generator for shrimp and fish farming



    Detailed Product Description
    Gas Flow Rate: 10-17 Ozone Output: 5g 10g 15g 20g 30g
    Power: 480-1230W Source: Internal Oxygen System
    Voltage: 220V/50HZ Oxygen Flow Rate: 3-10LPM
    Power Source:: Electrical


    5g/h - 30g/h Oxygen Feed Inside Swimming Pool Ozone Generator / Water Purifier

    1. Quick details


    Model Number: NT-YFC

    Ozone output way: air cooling

    Warranty: one year warranty
    Adjustable ozone rate: 20-100% adjustable ozone

    Control panel:


    Voltmeter, Ammeter, Switch, Timer, Working light, Power light etc.



    Timer: One or Two recycle working time


    1. Medical treatment industry: clean sick room, operating room, medical treatment equipment, aseptic room, etc
    2. Fruits and vegetables: keep fruits and vegetables fresh and store them
    3. Sea food factory: Remove smell of sea food factory and kill bacteria, clean production water supply.
    4. Slaughtering: Remove smell of slaughtering and kill bacteria, clean production water supply.
    5. Poultry factory: Remove smell of poultry factory and kill bacteria, clean water for poultry feeding.
    6. Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.


    1. Carbon steel sprayed with plastic housing;
    2. Built-in PSA high purity twelve tower oxygen sieve;
    3. Built-in of product - Air cooling Ceramic ozone tube with high frequency electric board, high ozone concentration and stable ozone capacity, long life time;
    4. Built-in Oil-free air compressor;
    5. Built-in Air dryer and filters. To supply cool, dry, clean air source for air compressor and PSA oxygen concentrator;
    6. Manual control, easy operation and maintenance.


    1. Built in Domestic ed Product -Air cooling ceramic ozone generator
    2. Built in Automatic air dryer, Feed dry air or outside oxygen source
    3. Connect with external ozone injector for water treatment
    4. It can be Movable with wheels & Handles or Wall mounted.
    5. No breakdown with easy operation and maintenance.



    Oxygen flow rate LPM 3 3.5 5 8 10
    Ozone concentration Mg/L 48.5~52.3 48.5~52.3 49.5~51.2 38.9~41.7 53.2~56.1
    Ozone output G/Hr 5 10~11 14.8~15.4 18.6~20 32~34
    Power KW ≤0.48 ≤0.81 ≤0.924 ≤1.00 ≤1.23
    Current A 2.2 3.6 4.2 4.5~4.7 5.6±5%
    Voltage V 220V/50HZ
    NW KG 64 86 89 92 97
    Size cm 45x50x84 50×66×95 45*93*118


    Question and answer

    ♦ Is ozone harmful to human body?

    Once the ozone concentration fails to meet the hygiene and safety standard,
    we can notice with our sense of smell and dodge away or take actions to avoid
    further leakage.
    So far there is no one dead reported caused by ozone poisoning.

    Quality control
    Every procedure has personnel inspection.
    All the products must be tested and qualified before packaging.

    After sales service
    We provide 12 month free maintenance.
    The buyer should return the product in the original conditions to us and should
    bear the shipping costs for return.
