    Product Details:

    Place of Origin: China(Guangzhou)
    Brand Name: Netech
    Model Number: A12057,

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 10-77/Piece
    Packaging Details: Carton
    Delivery Time: 5-8 working days
    Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 2000 piece/month
    Contact Now
    Detailed Product Description
    Product Name: 0.05-50T Ozone Generator Parts Used For Water Treatment Jet Ozone Parts Venturi Water Flow Rate: 0.05-0.25 T/Hr
    MOQ: 1 Packing: Box Packing
    Quality Control: Products Must Be Tested And Qualified Before Packaging After Sales Service: 12 Month Free Maintenance
    Size: 1" Material: PVDF
    High Light:

    ozone accessories

    ,

    ozone generator tube

    0.05-50T ozone generator parts used for water treatment jet ozone parts venturi



    Quick Detail



    water treatment Venturi

    1. Material:PVD

    2. Connect with ozone generator

    3. flexible hose is 1/4'';

    4. Length: 57 mm





    Description:



    Material                                 PVDF

    Color                                     black

    Water flow rate                      0.05-0.25 T/Hr

    MOQ                                      1 piece

    flexible hose                           1/4'';

    Length:                                  152 mm

    Packing                                   box packing

    Connection                             connect with ozone generator

    Delivery Application                3-7days swimming pool system,agriculture,water treatment



    Venturi is designed to be used with an ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucking the ozone gases into the water flow







    Various Applications:



    1. Air purification, removing odors, smoke, mold, etc.

    2. Water clean for home, commercial, industrial used.

    3. ozone for drinking water treatment and bottling clean.

    4. ozone for aquaculture water purification.

    5. ozone for removing iron and manganese.

    6. ozone for reduce BOD, COD, wastewater, sewage, effluent treatment.

    7. ozone for food storage, keep fruit, vegetable, products longer shelf life.

    8. ozone for laundry system.

    9. ozone for industrial polution control, removing odors, harmful gas.

    10. ozone for food processing, factory, workshop clean.

    11. ozone for milling.

    12. ozone for fire or flood restoration.

    13. ozone for agriculture

    14. ozone for medical used




    Specification:

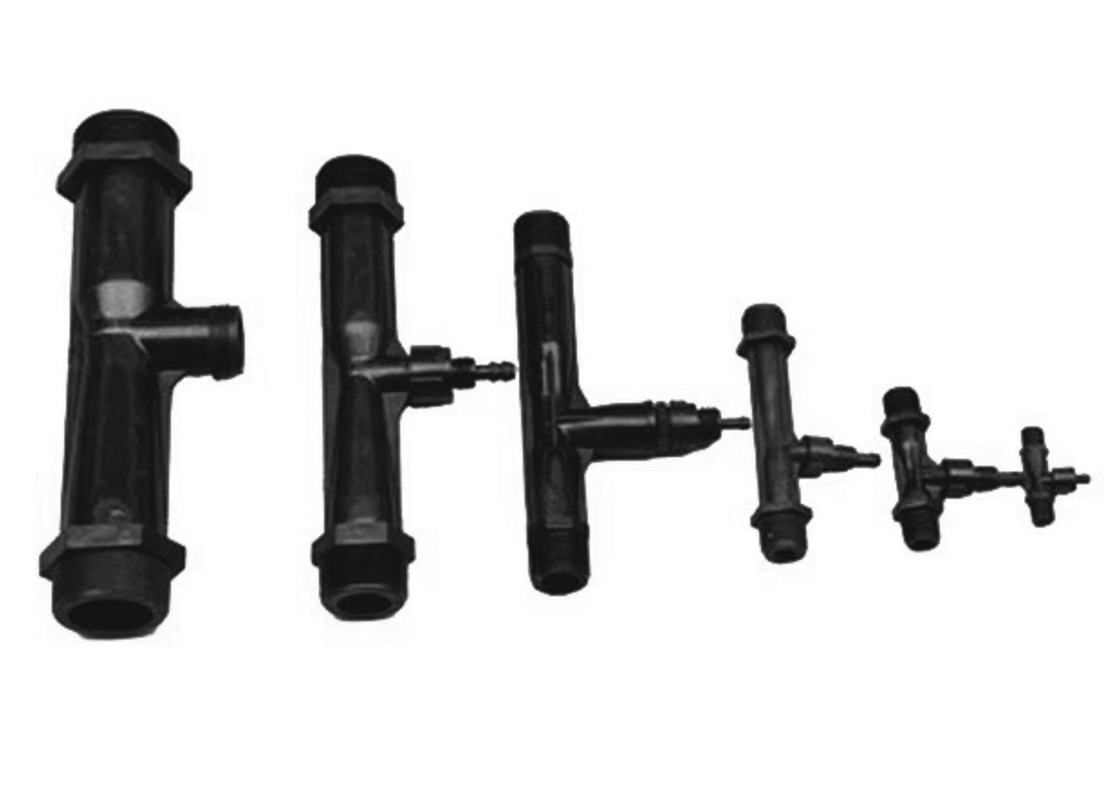

    Marks Model

    Quantity

    (PC)

    Size

    (mm)


    1 A12057 1 57
    2 A25100 1 100
    3 A32235 1 235
    5 A48275 1 275
    6 A58295 1 295



    Specifications


    Model: A12057
    Material:PVD
    Water flow rate:0.05-0.25 T/Hr
    Specification:

    1. Inlet & Outlet diameter 1/5'' external screw thread

    2. Valve bonnet of Gas Inlet is 1/8’;

    3. flexible hose is 1/4’’;

    4. Length: 57 mm

    Model: A25100
    Material:PVDF
    Water flow rate: 0.1-1 T/Hr
    Specification:

    1. Inlet & Outlet diameter 1/2’'external screw thread

    2. Valve bonnet of Gas Inlet is 1/4’;

    3. flexible hose is 1/4’’;

    4. Length: 100 mm

    Model : A32235
    Material: PVDF
    Water flow rate:3-10 T/Hr
    Specification:

    1. Inlet & Outlet diameter 1’'external screw thread.

    2. Valve bonnet of Gas Inlet is 1/2’;

    3. flexible hose is 3/8’

    4. Length: 230 mm

    Model: A25152
    Material: PVDF
    Water flow rate: 1~3 T/Hr
    Specification:

    1. Inlet & Outlet diameter3/4’'external screw thread

    2. Valve bonnet of Gas Inlet is 1/4’;

    3. flexible hose is 1/4’’;

    4. Length: 152 mm

    Model: A48275
    Material: PVDF
    Water flow rate:10~25 T/Hr
    Specification:

    1. Inlet & Outlet diameter 1.5’' screw thread
    2. Valve bonnet of Gas Inlet is 1/2’;
    3. flexible hose is 1/2’’;
    4. Length: 275mm

    Model: A58295
    Material: PVDF
    Water flow rate: 25~50T/Hr
    Specification:

    1. Inlet & Outlet diameter 2’' screw thread

    2. Valve bonnet of Gas Inlet is 1.25’;

    3. flexible hose is 1/2’’;

    4. Length: 295mm








    Quality control



    Every procedure has personnel inspection.

    All the products must be tested and qualified before packaging.





    After sales service



    We provide 12month free maintenance.

    The buyer should return the product in the original conditions to us and should

    bear the shipping costs for return.



    Different length  0.05-0.25 T/Hr water treatment  PVDF Venturi for ozone machine
