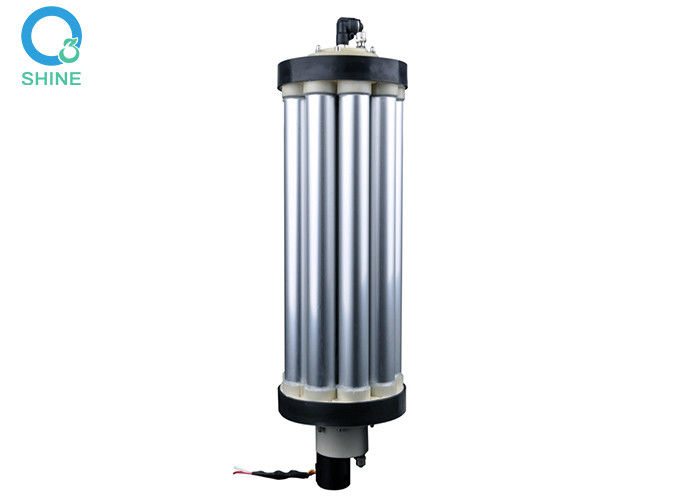

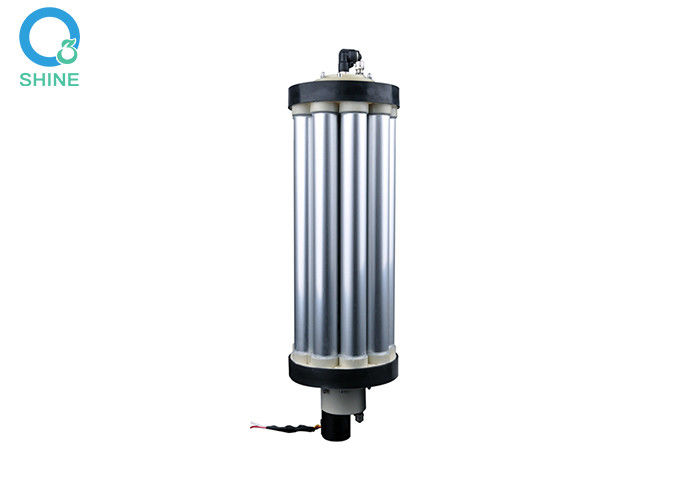

3LPM - 15LPM PSA Molecular Sieve Oxygen Concentrator Stable Oxygen Output
Features:
Twelve towers oxygen concentrator is unique design, advanced technology, excellent service support
1. Rational construction
Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
2. Easy to control
Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
3. The oxygen output is stable and continuously
4. Low-pressure oxygen production working pressure 1.5-2 Bar.
5. Working Voltage 110V/220V is available
Description
Warranty 1 year
Noise ≤ 60Db
Application oxygen increasing
Output 3L 5L 7L 10L 15L
outlet pressure 0.06~0.08Mpa
oxygen purity 3% + - 3%
technology pressure swing absorbtion (PSA)
oxygen to water with extra air compressor to increase the pressure
Specifications
Item | Unit | CHOX3AL | CHOX5AL | CHOX7AL | CHOX10AL | CHOX15AL |
Oxygen output | LPM | 3 | 5 | 7.5 | 10 | 15 |
Oxygen concentration | % | 90%±3% | 90%±3% | 90%±3% | 90%±3% | 90%±3% |
Air flow rate | LPM | 36-45 | 60-75 | 90-115 | 90-115 | 180-200 |
Pressure(inlet) | Mpa | 0.14-0.18 | 0.14-0.2 | 0.15-0.21 | 0.18-0.25 | 0.35 |
Pressure(outlet) | Mpa | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 |
Temperature | ℃ | indoor temperature | ||||
Relative humidity | % | ≤ 70%±10% | ||||
Noise | Db | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
Dimension | mm | Ф200×310 | Ф200×430 | Ф200×500 | Ф200×560 | Ф200×880 |
Net weight | kg | 5.5 | 7 | 8 | 11 | 12.5 |
Appliance of oxygen machine:
• Welding / Brazing Furnace Enrichment
• Fermentation Glass Industry
• Fish Farming Ozone Generator
• Sewage Treatment Pulp & Paper
• Chemical Oxidation Rough Cutting
• Battery Manufacture Melting
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
