3L - 15L PSA Oxygen Concentrator Parts Oxygen Sieve For Aquaculture

3L - 15L PSA Oxygen Concentrator Parts Oxygen Sieve For Aquaculture

    • 3L - 15L PSA Oxygen Concentrator Parts Oxygen Sieve For Aquaculture
  • 3L - 15L PSA Oxygen Concentrator Parts Oxygen Sieve For Aquaculture

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: Netech
    Model Number: NT-OX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $ 600 - $ 1200 / set
    Packaging Details: Safe double carton package with foam inside for protection
    Delivery Time: 3-5 working days after payment confirmed
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Guarantee: One Year Oxygen Output: 3LPM,5LPM,7LPM,10LPM,15LPM
    Oxygen Concentration: 90%±3% Pressure(inlet): 0.14-0.35
    Pressure(outlet): 0.06-0.08 Output Type: Stable And Continuously
    High Light:

    oxygen concentrator repair

    ,

    molecular sieve unit

    3L -15L PSA Oxygen Concentrator Oxygen Sieve Oxygen Increase For Aquaculture



    Quick Detail



    oxygen concentration 90%±3%
    Output 3L 5L 7L 10L 15L
    Noise ≤ 60Db
    technology pressure swing absorbtion (PSA)
    usage increase oxygen in the air or fish farm water,etc.
    Warranty 1 year


    * 12 Towers Oxygen Concentrator:

    1. ed products
    NT-OX series molecular sieve is an air separation plant which has already obtained domestic .

    2. Rational construction
    Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.

    3.Easy to control
    Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.

    4.Low-pressure oxygen production working pressure 1.5-2 Bar.

    5. Working Voltage 110V/220V is available


    Sepcifications:



    Item Unit NTOX3AL NTOX5AL NTOX7AL NTOX10AL NTOX15AL
    Oxygen output LPM 3 5 7.5 10 15
    Oxygen concentration % 90%±3% 90%±3% 90%±3% 90%±3% 90%±3%
    Air flow rate LPM 36-45 60-75 90-115 90-115 180-200
    Pressure(inlet) Mpa 0.14-0.18 0.14-0.2 0.15-0.21 0.18-0.25 0.35
    Pressure(outlet) Mpa 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08
    Temperature indoor temperature
    Relative humidity % ≤ 70%±10%
    Noise Db ≤60 ≤60 ≤60 ≤60 ≤60
    Dimension mm Ф200×310 Ф200×430 Ф200×500 Ф200×560 Ф200×880
    Net weight kg 5.5 7 8 11 12.5


    Remark:

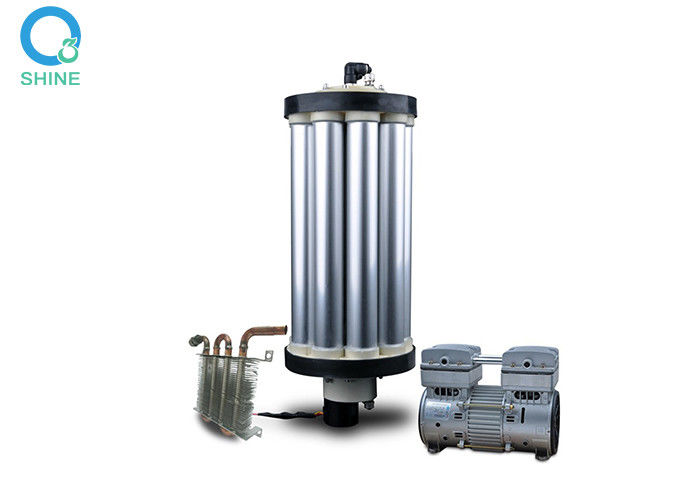

    1. One set including oxygen generating unit, air compressor, and chiller. (It also can be sold separately)
    2. NTOX15AL-2 comes with 2 units air compressors,2 chiller.


    Other Types of oxygen concentrator:

    * Two Towers Oxygen Concentrator



    Item Unit NT03L NT05L NT08L NT10L
    Oxygen output LPM 3 5 8 10
    Oxygen concentration % 90%±3%
    Power W 280 450 / 650
    Pressure(inlet) Mpa 0.18-0.2 0.2 0.2 0.2
    Pressure(outlet) Mpa 0.06-0.08
    Temperature indoor temperature
    Relative humidity % ≤85%
    Noise Db ≤ 55 ≤60 ≤70 ≤70
    Dimension mm 550×160×80 550×180×80 610×290×120 610×310×120
    Weight kg 9.25 16.70 18.50 19.10



    Appliance of oxygen machine:


    • Welding / Brazing Furnace Enrichment
    • Fermentation Glass Industry
    • Fish Farming Ozone Generator
    • Sewage Treatment Pulp & Paper
    • Mini-Steel Mills Cement & Lime Kilns
    • Metal Spraying Copper Smelting
