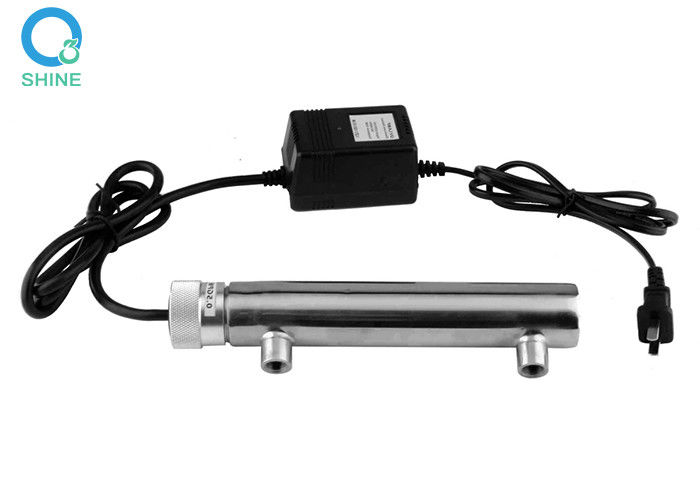

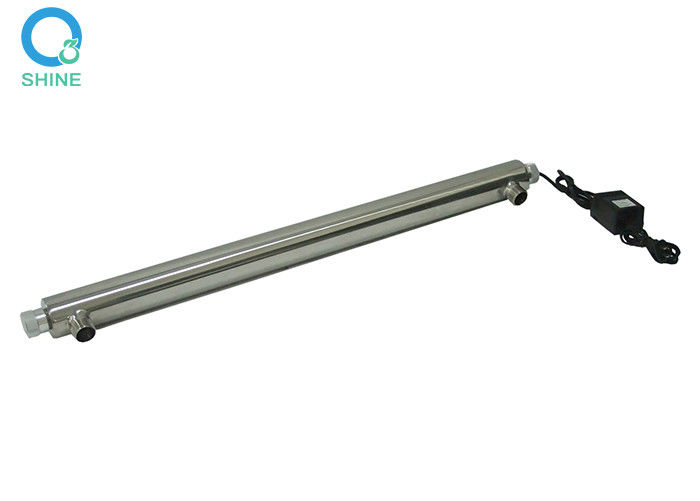

Low Pressure UV Sterilizer / Ultraviolet Sterilizer Microbial Water Treatment Equipment
Product Details
Name | Ozone Generator Parts | Ozone Output | 3g/hr To 7g/hr |
---|---|---|---|
Discharge Way | Corona Discharge | Ozone Adjustable | 20-100% |
Power | 85w | Warranty | 1 Year |
Life Time | 20000 Hours | ODM/OEM | Applicable |
High Light | ceramic ozone tube,ozone generator tube |
Product Description
Features:
- Water flow rate: 0.1-500 ton/hr which can meet with different water capacities.
- Warranty: 10 years warranty for stainless steel housing, other components are 1 year.
- Material: Use SS304 or SS316L material for reaction chamber, combined with full-automatic welding. All connections are smoothly without any corner;
- Chamber: Internal & external polishing mirror chamber with high brightness for greatly improved UV intensity and sterilize effect.
- Thickness: The thickening design of chamber which is strictly tested air & water pressure before shipping. It can withstand 0.8 Mpa, and fully prevents from water leakage.
- Lamp: Use imported low-pressure but high-strength mercury lamp, which has 9000-13000 hrs service life(Max); assorted with high-efficiency electron ballast, it improves product service life and effect, so that the sterilizing rate up to 99.99%.
- The whole system adopts America NSF55 standard of “Ultraviolet microbial water treatment equipment” and domestic Ultraviolet sterilizer industry standard for living and drinking water of CJ/T204-2000.
- Use America Hanovia lamp tube.
Specifications
Model |
Water flow (T/Hr) |
Power (W) |
Size (mm) |
Water Input & Ouput Size |
Max Pressure (Mpa) |
|
CH-UV005G | 0.1 | 8 | 250×48×65 | 1/4″ | 0.8 | |
CH -UV01G | 0.2 | 10 | 295×60×80 | 1/4″ | ||
CH -UV02G | 0.5 | 14 | 370×60×80 | 1/2″ | ||
CH -UV04G | 1 | 17 | 450×73×110 | 1/2″ | ||
CH -UV06G | 1.3 | 23 | 520×73×110 | 3/4″ | ||
CH -UV08G | 1.8 | 28 | 650×73×110 | 3/4″ | ||
CH -UV12G | 2.7 | 40 | 950×73×110 | 1″ |
CH-UV3~30T
Model |
Water flow (T/Hr) |
Power (W) |
Size (mm) |
Water Input & Ouput Size |
Max Pressure (Mpa) |
|
CH -UV3T | 3 | 40×1 | 950×125×250 | 1″ | 0.8 | |
CH -UV5T | 5 | 40×2 | 950×138×280 | 1.2″ | ||
CH -UV8T | 8 | 40×3 | 950×170×310 | 1.5″ | ||
CH-UV12T | 12 | 40×4 | 950×195×335 | 2″ | ||
CH-UV15T | 15 | 40×5 | 950×195×335 | 2″ | ||
CH-UV20T | 20 | 80×3 | 950×205×405 | 2.5″ | ||
CH-UV25T | 25 | 80×4 | 950×275×465 | 2.5″ | ||
CH-UV30T | 30 | 120×3 | 1250×275×545 | 3″ |
