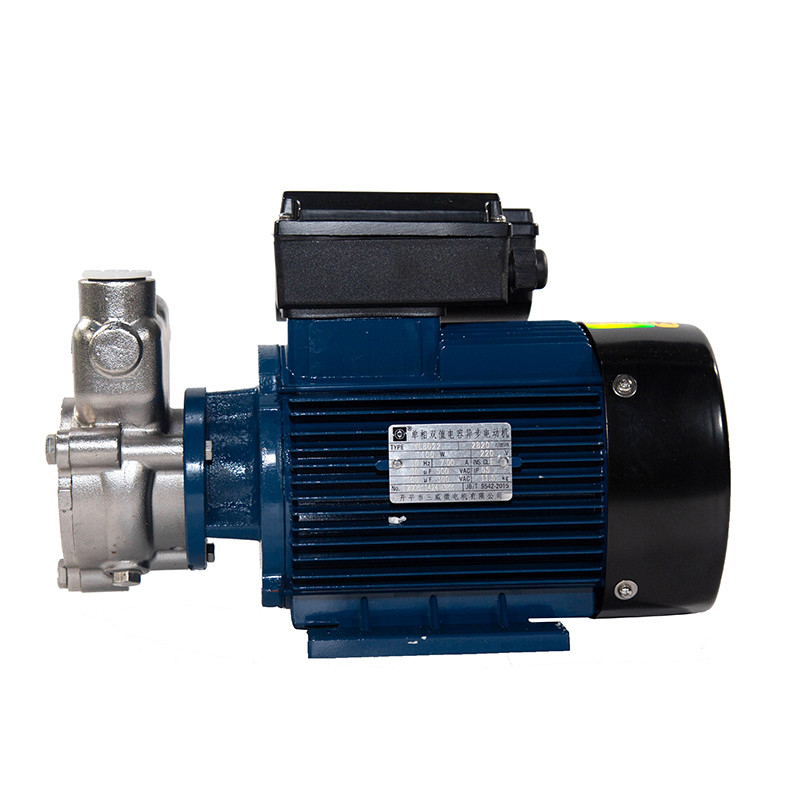

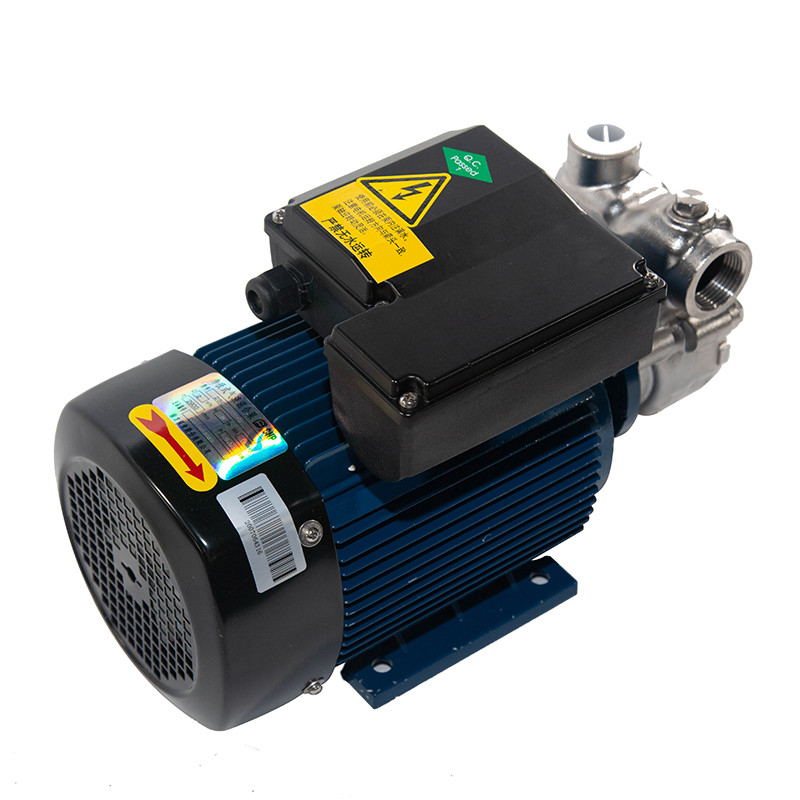

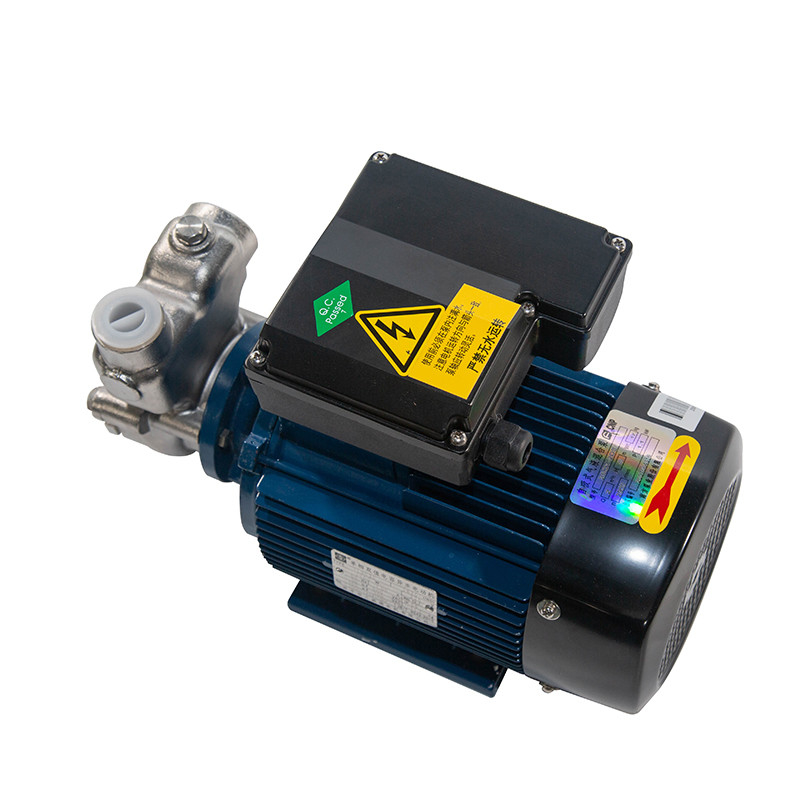

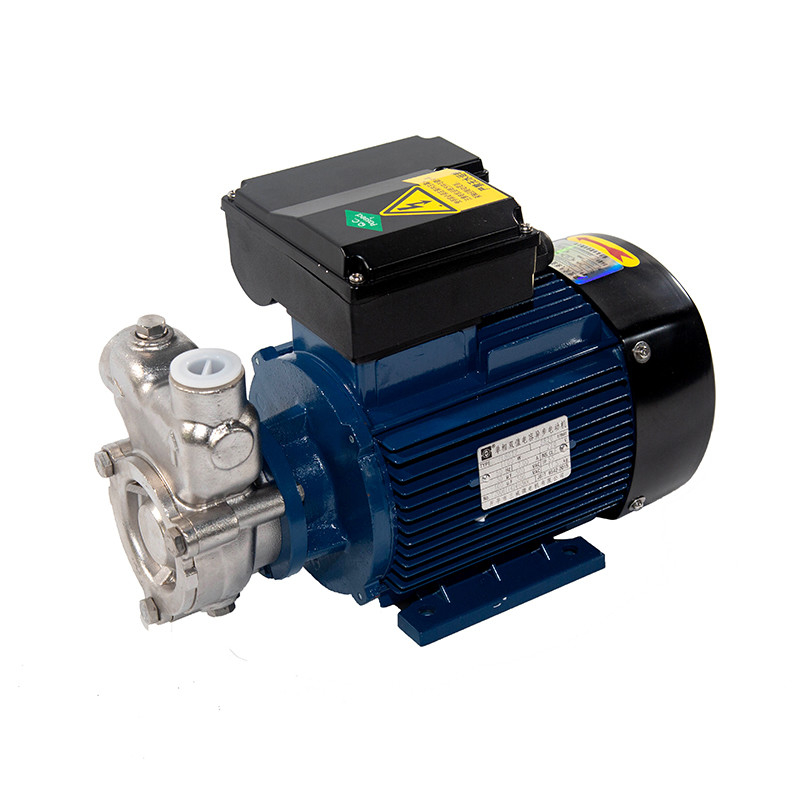

Hot selling micro bubble pump/nano bubble generator in water treatment equipment
-
Water Flow Rate1-50T/Hr
-
Product NameMicro Bubble Pump
-
ApplicationSwimming Pool;aquaculture;wastewater;drinking Water
-
MOQ1 Set
-
KeywordsMixer, Ozone Mixer
-
TypeMix Water And Gas
-
Warranty1 Year
-
Voltage380V/50Hz
-
PackageCarton Package
-
Power0.37KW~22KW
-
FeatureHigh Efficiency
-
Place of OriginChina
-
Brand NameOzoCenter
-
Minimum Order Quantity1 set
-
Price602/set
-
Packaging DetailsWooden Case
-
Delivery Time5-8 working days
-
Payment TermsWestern Union
-
Supply Ability1500 Sets per month
Hot selling micro bubble pump/nano bubble generator in water treatment equipment
Hot selling micro bubble pump/nano bubble generator in water treatment equipment
Micro bubble is a new kind of mixing technology. It can mix gas and water. The gas can be any gas, such as oxygen, ozone.
High gas liquid mixing efficiency with micro bubble 20-30 microns. It is three times more efficient than venturi .
Features:
Product Featrues:
1. Water flow rate:1T/Hr to 50T/Hr
2. Micro bubbles size 20~30microns for gas water mixing
3. Used with SS304 or 316L material mixing tank for impoving mixing efficiency(OEM)
4. 220V/380V are available, when you make order pls kindly note us the voltage you need, thanks.
Applications:
1. Aeration systems
2. Oxygen injection
3. Ozone injection
4. Aquaculture - fish farming
5. Spa bath systems
6. Microbubble
7. Waste water treatment plants
8. Paper mill process water recycling etc.
9. DAF System
Product Featrues:
1. Water flow rate:1T/Hr to 50T/Hr
2. Micro bubbles size 20~30microns for gas water mixing
3. Used with SS304 or 316L material mixing tank for impoving mixing efficiency(OEM)
4. 220V/380V are available, when you make order pls kindly note us the voltage you need, thanks.
Applications:
1. Aeration systems
2. Oxygen injection
3. Ozone injection
4. Aquaculture - fish farming
5. Spa bath systems
6. Microbubble
7. Waste water treatment plants
8. Paper mill process water recycling etc.
9. DAF System
Specification:
| Model | Water flow rate | Motor parameters |
Max.lift head(m)/
Flow rate
(L/min；m³/h)
|
The flow rate of
40 meters lift head(L/min；m³/h)
|
Resistant material maximum surface temperature(℃) |
| 20WSCO4 | 1T |
220/50HZ
0.37KW
2 level IP55
|
45m
12L/min
0.72m³/h
|
14L/min
0.84m³/h
|
120℃ |
| 25WSCO7 | 2T |
220/50HZ
0.75KW
2 level IP55
|
50m
17L/min
1.02m³/h
|
25L/min
1.5m³/h
|
120℃ |
| 32WSC15 | 3-4T |
380/50HZ
1.5KW
2 level IP55
|
60m
35L/min
2.1m³/h
|
52L/min
3.12m³/h
|
120℃ |
| 40WSC22 | 5-6T |
380/50HZ
2.2KW
2 level IP55
|
50m
82L/min
4.92m³/h
|
102L/min
6.12m³/h
|
120℃ |
| 50WSP2-75 | 10-15T |
380/50HZ
7.5KW
4 level IP55
|
80m
50L/min
3.0m³/h
|
150L/min
9m³/h
|
180℃ |
| 65WSP11 | 25-30T |
380/50HZ
11KW
4 level IP55
|
60m
300L/min
18m³/h
|
500L/min
30m³/h
|
180℃ |
| 80WSP22 | 45-50T |
380/50HZ
22KW
4 level IP55
|
60m
650L/min
39m³/h
|
850L/min
51m³/h
|
180℃ |
| esistant material maximum surface temperature(℃) |
