30g Large Ozone Machine For Air Purify And Water Treatment With PSA twelve tower oxygen

30g Large Ozone Machine For Air Purify And Water Treatment With PSA twelve tower oxygen



Quick details

Brand Name: Netech

Model Number: NT-YFC

Certification: domestic
Ozone output way: air cooling

Warranty: one year warranty
Adjustable rate:20-100% adjustable ozone

Description











how to use ?


1. Before use this machine, put it in a stable flat place which can hold its weight.

2. Use the power equipped with the machine;

3. The machine use for air purification, firstly attach the silicone tube into the

ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5. When use for room air purification, it requires nobody is present , after 30

minutes people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone

tube and put into the water.

  7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.


Features:

1. Carbon steel sprayed with plastic housing;
2. Built-in PSA high purity twelve tower oxygen sieve;
3. Built-in of product –Air cooling Ceramic ozone tube with high frequency electric board, high ozone concentration and stable ozone capacity, long life time;
4. Built-in Oil-free air compressor;
5. Built-in Air dryer and filters. To supply cool, dry, clean air source for air compressor and PSA oxygen concentrator;
6. Manual control, easy operation and maintenance.

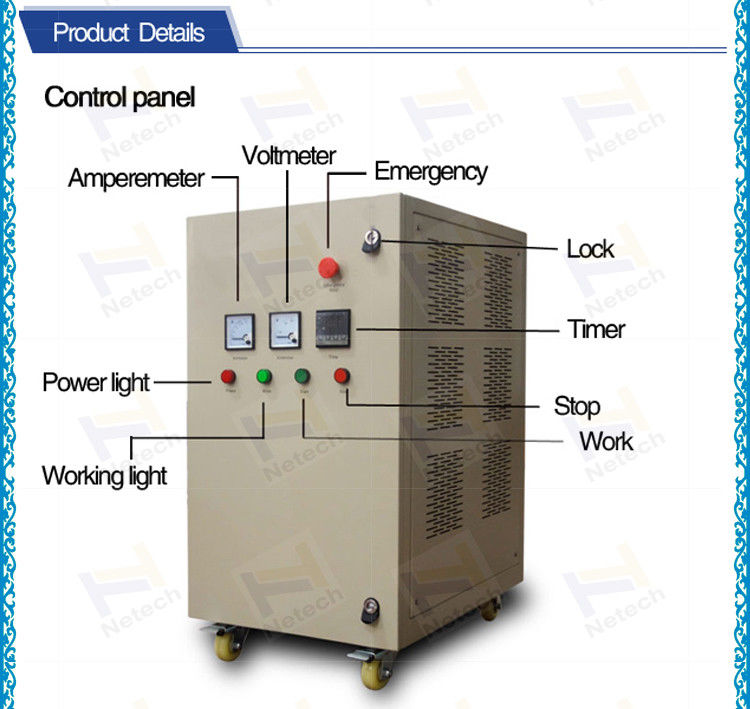

Control panel:

Voltmeter, Ampere meter, Timer, Ozone Ampere meter, Main switch, Power supply switch, Emergency stop, working light, Power light, Alarm


Control protection:

Over current protection
Electric leakage protection
Short circuit protection
Over heat of air compressor protection
Time delay system protection


Application


1. treatment industry: clean ward, operating room, treatment equipment, aseptic room, etc;

2. Laboratory: industrial oxidation of flavor and pharmaceutical intermediate;

3. Food processing industry: keep fruits and vegetables fresh and cold storage; rice & wheat storage;   or storage room air clean.
      4. Sea food factory: Remove smell of sea food factory and kill bacteria;
      5. Slaughtering: Remove smell of slaughtering and kill bacteria;
      6. Poultry factory: Remove smell of poultry factory and kill bacteria;
      7. Green house: air clean and kill bacteria.
      8. Agricultural: fish farm water treatment
      9. Swimming pool water treatment
     10. Drinking water treatment


Specifications



Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug


Question and answer

♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dead reported caused by ozone poisoning.
♦ Does the ozone generator work efficiently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short time.


QUALITY CONTROL

In order to ensure the best quality , every ozone generator has been strictly tested before delivery.
We promise the good performance and all parts completely
according to your needs


ABOUT US

Gold supplier--Guangzhou Netech Environmental Technology Co., Ltd ,15 years of experience in Water Treatment and Environment R&D and Engineering,
we are able to solve all your solutions in Environmental Protection and Water Treatment.
High quality guarantee
Good after-sale service


AFTER SERVICE

We provide 12 month free maintenance. The buyer should return the product in the original conditions to us and should bear
the shipping costs for return.
If any part is required to be replaced,the buyer should also pay for th costs of the parts to be replaced.
