Air Cooling Ceramic Ozone Generator Water Purification / O3 Machine 50 / 60HZ

Place of Origin Guangdong China
Brand Name Netech
Model Number NT-KTY
Minimum Order Quantity 1 set
Price $ 350 - $ 450
Packaging Details Safe double carton package with foam inside for protection
Delivery Time 1-7 working days after received your payment
Payment Terms L/C D/A D/P T/T Western Union Credit Card/ Paypal
Supply Ability 2000 sets per month
Product Details
High Light

ozone generator water treatment


ozone generator wastewater treatment

Leave a Message
Product Description

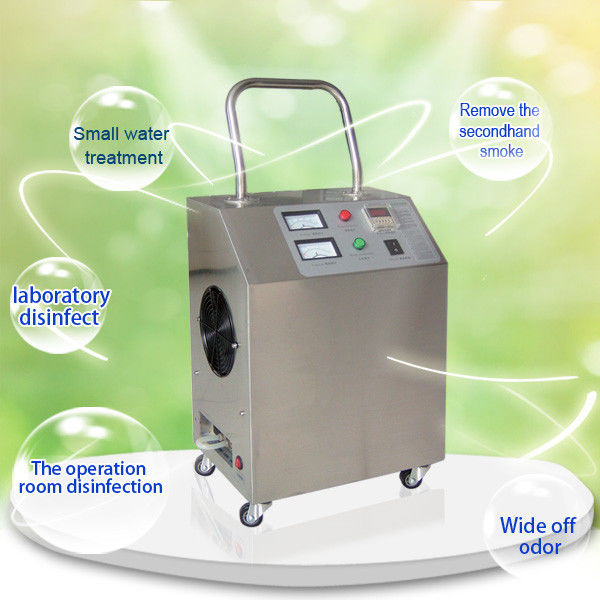

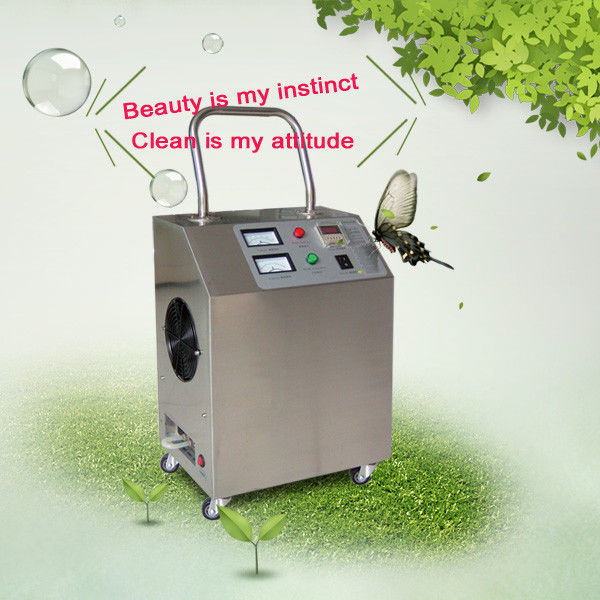

Air Cooling Ceramic Ozone Generator Water Purification / O3 Machine 50 / 60HZ
Quick details

Brand Name: Netech

Model Number: NT-KTY

Certification: domestic
Ozone output way: corona discharge

Warranty: one year warranty
Adjustable rate:20-100% adjustable ozone


Gas source Oxygen
Oxygen flow rate 1-18LPM
Material Enamel tube
Cooling Air cooling
Power supply 220V,50/60HZ
Commodity Ozone water system
Ozone output 2g 3g 5g 6g
Size 360*260*610mm

How to use ?


1. Before use this machine, put it in a stable flat place which can hold its weight.

2. Use the power equipped with the machine;
3. The machine use for air purification, firstly attach the silicone tube into the
         ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5. When use for room air purification, it requires nobody is present , after 30
         minutes people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone

     tube and put into the water.

7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.
1. treatment industry: clean sick room, operating room, treatment equipment, aseptic room, etc
2. Fruits and vegetables: keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacteria, clean production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacteria, clean production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacteria, clean water for poultry feeding.
6. Commercial use in House, hotel,Office, KTV, Super Market, Fruit shop etc.
Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Virus to fresh air.
Water purifier: clean production Water supply.
7. Bottle Water, Domestic Water, Well Water, Pool Water cleanion & clean
Control panel:
Voltmeter, Ammeter, Switch, Timer,
Working light, Power light etc.
Timer: One or Two recycle working time
1. Built in Domestic ed Product -Air cooling ceramic ozone generator
2. Built in Automatic air dryer, Feed dry air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. No breakdown with easy operation and maintenance.

Oxygen flow rate LPM 0.5~2 1~3 1.2~3 1.5~3.5
Ozone concentration Mg/L 28~50 28~65 32~60 28~56
Ozone output G/Hr 1.5~3.0 4~5.0 4.3~5.7 5.0~5.8
Power W 115 135 160 185
Air flow rate LPM 40~60
Compressed air pressure Mpa 0.025
Fuse of power supply A 3
Size mm 360×260×610
Net Weight kg 11.25 11.30 11.50

Question and answer
1. Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one died reported caused by ozone poisoning.
2. Does the ozone generator work efficiently?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short time.
In order to ensure the best quality, every ozone generator has been strictly tested before delivery.
We promise the good performance and all parts completely
according to you
Gold supplier--Guangzhou Netech Environmental Technology Co., Ltd ,15 years of experience in Water Treatment and Environment R&D and Engineering,
we are able to solve all your solutions in Environmental Protection and Water Treatment.
Every procedure has personnel inspection. All the products must be tested and qualified before packaging.
We provide 12 month free maintenance. The buyer should return the product in the original conditions to us and should bear
the shipping costs for return.
If any part is required to be replaced,the buyer should also pay for the costs of the parts to be replaced.
1. 3 -7 days for portable ozone generator/ozone generator spare parts order;
2. 10-30 days for industrial/middle size ozone generator order;
3. Shipping could be courier, airline or sea

A) Inner layer: plastic bag
B) Middle layer: EPE(Expandable Polyethylene)
C) Outer Layer: carton/composite wooden
