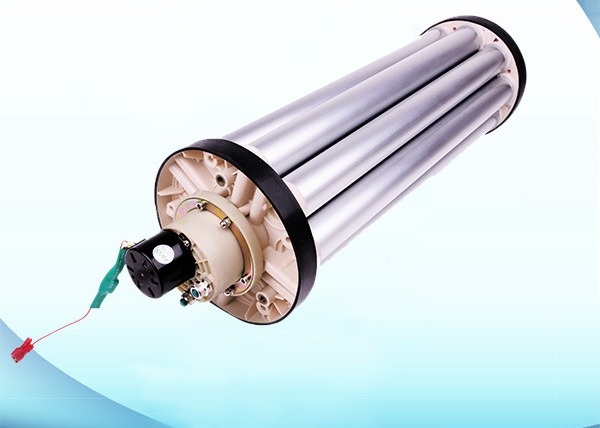

15Apm Oxygen Oxygen Concentrator Parts With Pressure Swing Absorbtion
-
High Light
oxygen concentrator repair
,oxygen molecular sieve
-
Place of OriginGuangdong China
-
Brand NameNetech
-
Model NumberNT-OX
-
Minimum Order Quantity1 set
-
PriceFor futher discussion
-
Packaging DetailsSafe double carton package with foam inside for protection
-
Delivery Time5-10 days after payment confirmed
-
Payment TermsL/C D/A D/P T/T Western Union Credit Card/ Paypal
-
Supply Ability1000 sets per month
15Apm Oxygen Oxygen Concentrator Parts With Pressure Swing Absorbtion
15Apm Oxygen Oxygen Concentrator Parts With Pressure Swing Absorbtion
| Oxygen output (L) | 3 5 710 15 | Relative humidity | ≤ 70% ± 10% |
| Oxygen concentration | 90% ± 3% | Noise | ≤ 60 |
| Air flow rate | 36 - 45 | Dimension | Ф200*310 |
| Pressure | 0.14 - 0.18 | Net weight | 15.70 |
Quick Detail
oxygen generator concentrator
1. About 95% concentration
2. Stable oxygen output
3. Each tower working independently
4. Durable
Description
Warranty 1 year
Noise ≤60Db
Application oxygen increasing
outlet pressure 0.06~0.08Mpa
oxygen purity 93%+-3%
technology pressure swing absorbtion (PSA)
usage increase oxygen in the air or water
humidity environment no problem ,with refrigerating dryer
oxygen to water with extra air compressor to increase the pressure
12 Towers Oxygen Concentrator
1. ed products NT-OT series molecular sieve is an air separation plant which has already obtained domestic .
2. Rational construction Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
3. Easy to control Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
4. The oxygen output is stable and continuously
5. Low-pressure oxygen production working pressure less than 3 KG.
Appliance of oxygen machine:
• Welding / Brazing Furnace Enrichment
• Fermentation Glass Industry
• Fish Farming Ozone Generator
• Sewage Treatment Pulp & Paper
• Chemical Oxidation Rough Cutting
• Battery Manufacture Melting
• Mini-Steel Mills Cement & Lime Kilns
• Metal Spraying Copper Smelting
Specifications
| Item | Unit | NTOX3AL | NTOX5AL | NTOX7AL | NTOX10AL | NTOX15AL |
| Oxygen output | LPM | 3 | 5 | 7.5 | 10 | 15 |
| Oxygen concentration | % | 90%±3% | 90%±3% | 90%±3% | 90%±3% | 90%±3% |
| Air flow rate | LPM | 36-45 | 60-75 | 90-115 | 90-115 | 180-200 |
| Pressure(inlet) | Mpa | 0.14-0.18 | 0.14-0.2 | 0.15-0.21 | 0.18-0.25 | 0.35 |
| Pressure(outlet) | Mpa | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 |
| Temperature | ℃ | indoor temperature | ||||
| Relative humidity | % | ≤ 70% ± 10% | ||||
| Noise | Db | ≤ 60 | ≤ 60 | ≤ 60 | ≤ 60 | ≤ 60 |
| Dimension | mm | Ф200 * 310 | Ф200 * 430 | Ф200 * 500 | Ф200 * 560 | Ф200 * 880 |
| Net weight | kg | 15.70 | 18.30 | 19.30 | 30.60 | 32.5 |
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 months free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Our products are sold all over the world, you can rest assured.
