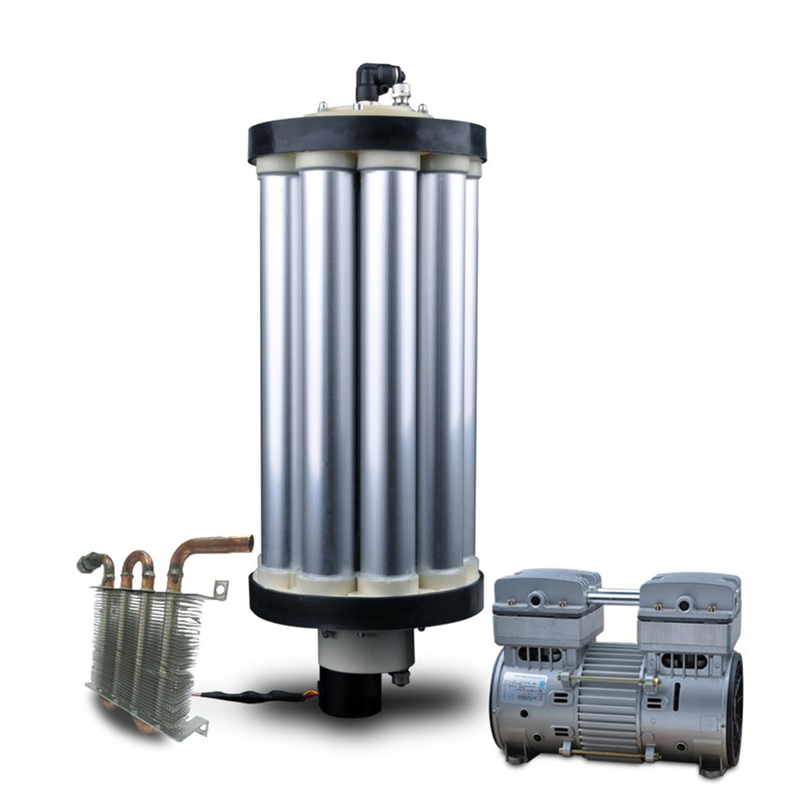

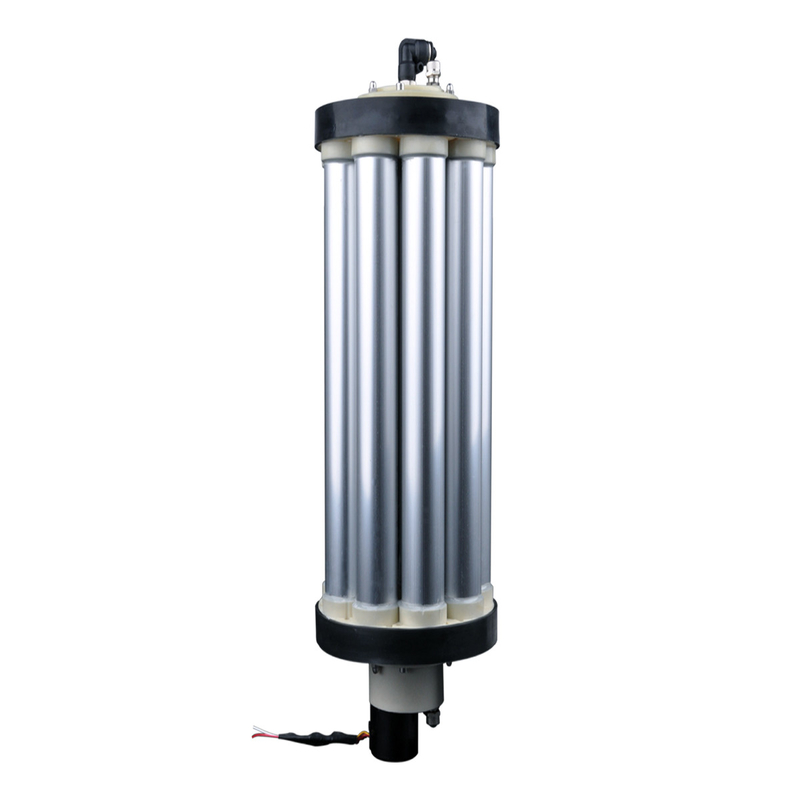

High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM

High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM

Products - Oxygen Concentrator Parts
  • High Light

    oxygen concentrator repair

    ,

    oxygen molecular sieve

  • Item
    12 Tower O2 Generator Molecular Sieve
  • Oxgen Flow
    3L5L7.5L10L15L
  • Voltage
    220V/110V
  • Pressure(outlet)
    0.06-0.08 Mpa
  • Oxygen Purity
    90%±3%
  • Place of Origin
    Guangdong China
  • Brand Name
    Ozocenter
  • Model Number
    CH-OX
  • Minimum Order Quantity
    1 set
  • Price
    $ 408 - $ 745
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    1-5 days after payment confirmed
  • Payment Terms
    L/C D/A D/P T/T Western Union Credit Card/ Paypal
  • Supply Ability
    100 sets per month

High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM

  • High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM
  • High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM
  • High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM
  • High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM
  • High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM
  • High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM
Get Price Contact Now

High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM





 Features:
Twelve towers oxygen concentrator is unique design, advanced technology, excellent service support
1. Rational construction
Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
2. Easy to control
Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit
combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more
convenient.
3. The oxygen output is stable and continuously
4. Low-pressure oxygen production working pressure 1.5-2 Bar.
5. Working Voltage 110V/220V is available.



Item Unit CHOX3AL CHOX5AL CHOX7AL CHOX10AL CHOX15AL
Oxygen output LPM 3 5 7.5 10 15
Oxygen concentration % 90%±3% 90%±3% 90%±3% 90%±3% 90%±3%
Air flow rate LPM 36-45 60-75 90-115 90-115 180-200
Pressure(inlet) Mpa 0.14-0.18 0.14-0.2 0.15-0.21 0.18-0.25 0.35
Pressure(outlet) Mpa 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08
Temperature ℃ indoor temperature
Relative humidity % ≤ 70%±10%
Noise Db ≤60 ≤60 ≤60 ≤60 ≤60
Dimension mm Ф200×310 Ф200×430 Ф200×500 Ф200×560 Ф200×880
Net weight kg 15.70 18.30 19.30 30.60 32.5


High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM 0High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM 1

High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM 2

High Purifier 12 Tower O2 Generator Molecular Sieve With PSA 10LPM 3
