Air purification Venturi mixing ozone and water PVDF water treatment removing odors

Air purification Venturi mixing ozone and water PVDF water treatment removing odors

  • High Light

    molecular sieve zeolite

    ,

    aquarium protein skimmer

  • Place of Origin
    China
  • Brand Name
    Netech
  • Model Number
    NT-Venturi
  • Minimum Order Quantity
    1 set
  • Packaging Details
    with froth in carton or wooden case
  • Delivery Time
    3 to 5days
  • Payment Terms
    Paypal,T/T,Western union,credit card
  • Supply Ability
    1000 per weeks

Air purification Venturi mixing ozone and water PVDF water treatment removing odors

Air purification Venturi mixing ozone and water PVDF water treatment removing odors







Quick Detail

water treatment Venturi

1. Material:PVD

2. Connect with ozone generator

3. flexible hose is 1/4'';

4. Length: 57 mm



Description

Material                                 PVDF

Color                                     black

Water flow rate                      0.05-0.25 T/Hr

MOQ                                      1 piece

flexible hose                           1/4'';

Length:                                  152 mm

Packing                                   box packing

Connection                             connect with ozone generator

Delivery Application                3-7 days swimming pool system,agriculture,water treatment



Venturi is designed to be used with an ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucking the ozone gases into the water flow



Various Applications:

1. Air purification, removing odors, smoke, mold, etc.

2. Water clean for home, commercial, industrial used.

3. ozone for drinking water treatment and bottling clean.

4. ozone for aquaculture water purification.

5. ozone for removing iron and manganese.

6. ozone for reduce BOD, COD, wastewater, sewage, effluent treatment.

7. ozone for food storage, keep fruit, vegetable, products longer shelf life.

8. ozone for laundry system.

9. ozone for industrial polution control, removing odors, harmful gas.

10. ozone for food processing, factory, workshop clean.

11. ozone for milling.

12. ozone for fire or flood restoration.

13. ozone for agriculture

14. ozone for used


Specification:

Marks Model

Quantity

(PC)

Size

(mm)

Air purification Venturi mixing ozone and water PVDF water treatment removing odors 0
1 A12057 1 57
2 A25100 1 100
3 A32235 1 235
5 A48275 1 275
6 A58295 1 295

Specifications


Model: A12057
Material:PVD
Water flow rate:0.05-0.25 T/Hr
Specification:

1. Inlet & Outlet diameter 1/5'' external screw thread

2. Valve bonnet of Gas Inlet is 1/8’;

3. flexible hose is 1/4’’;

4. Length: 57 mm

Model: A25100
Material:PVDF
Water flow rate: 0.1-1 T/Hr
Specification:

1. Inlet & Outlet diameter 1/2’'external screw thread

2. Valve bonnet of Gas Inlet is 1/4’;

3. flexible hose is 1/4’’;

4. Length: 100 mm

Model : A32235
Material: PVDF
Water flow rate:3-10 T/Hr
Specification:

1. Inlet & Outlet diameter 1’'external screw thread.

2. Valve bonnet of Gas Inlet is 1/2’;

3. flexible hose is 3/8’

4. Length: 230 mm

Model: A25152
Material: PVDF
Water flow rate: 1~3 T/Hr
Specification:

1. Inlet & Outlet diameter3/4’'external screw thread

2. Valve bonnet of Gas Inlet is 1/4’;

3. flexible hose is 1/4’’;

4. Length: 152 mm

Model: A48275
Material: PVDF
Water flow rate:10~25 T/Hr
Specification:

  1. Inlet & Outlet diameter 1.5’' screw thread
  2. Valve bonnet of Gas Inlet is 1/2’;
  3. flexible hose is 1/2’’;
  4. Length: 275mm

Model: A58295
Material: PVDF
Water flow rate: 25~50T/Hr
Specification:

1. Inlet & Outlet diameter 2’' screw thread

2. Valve bonnet of Gas Inlet is 1.25’;

3. flexible hose is 1/2’’;

4. Length: 295mm







Quality control



Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.



After sales service



We provide 12 month free maintenance.

The buyer should return the product in the original conditions to us and should

bear the shipping costs for return.

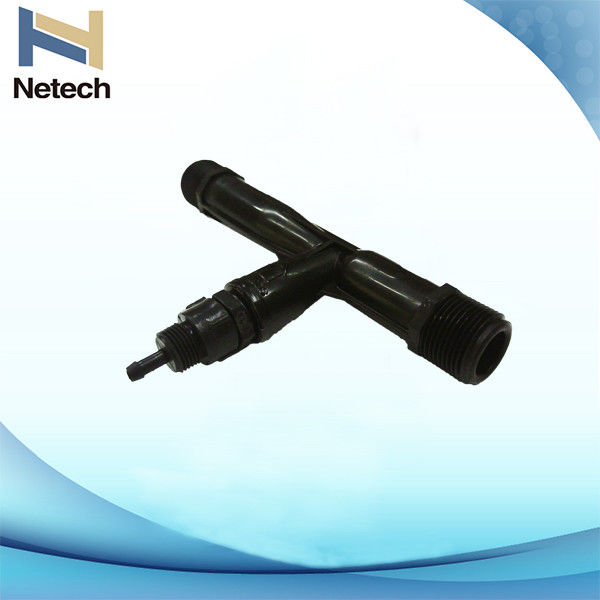

 Air purification Venturi mixing ozone and water PVDF water treatment removing odors 1

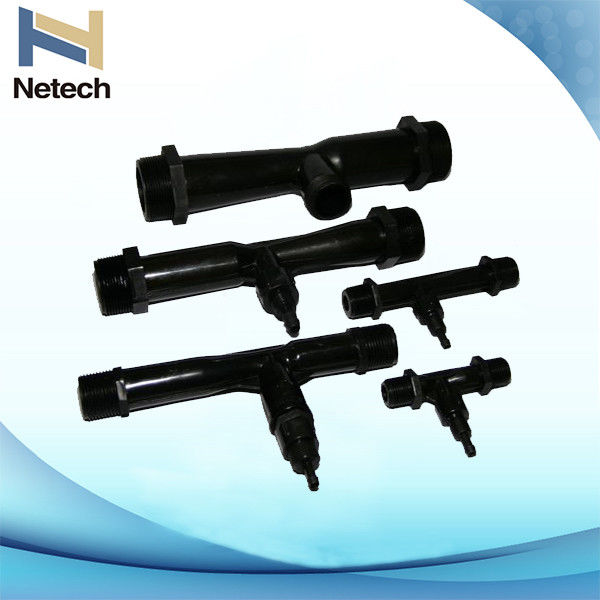

 Air purification Venturi mixing ozone and water PVDF water treatment removing odors 2

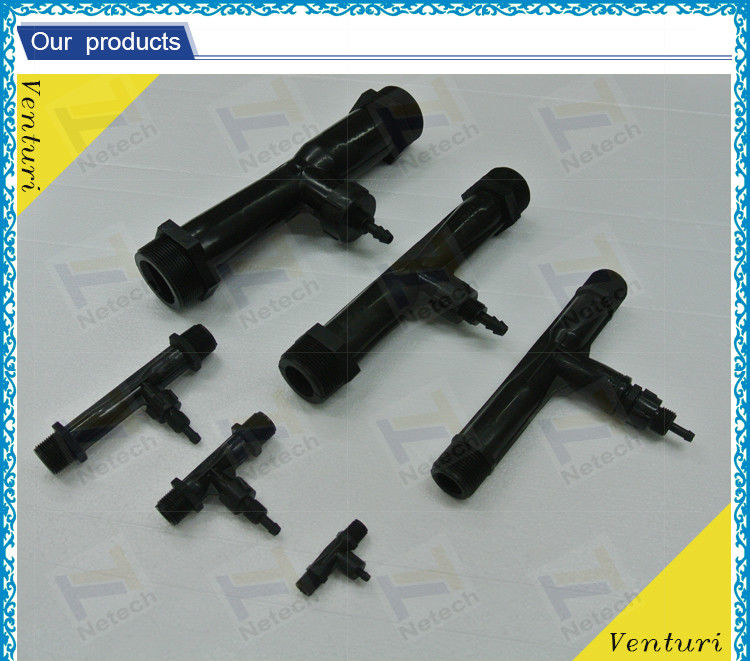

Air purification Venturi mixing ozone and water PVDF water treatment removing odors 3

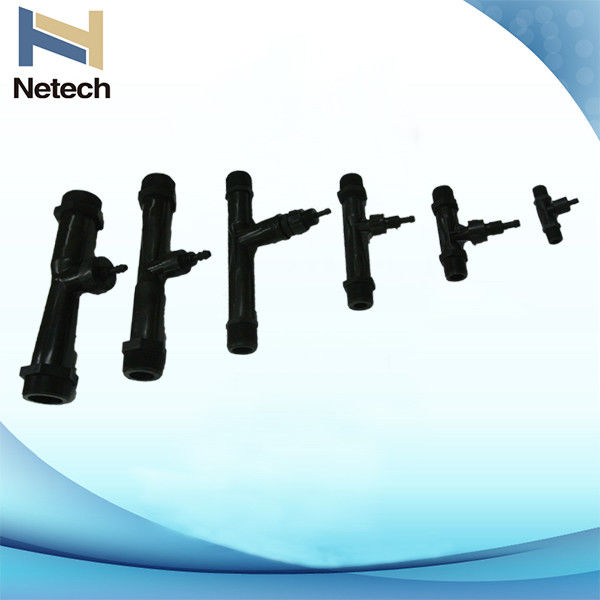

Air purification Venturi mixing ozone and water PVDF water treatment removing odors 4
