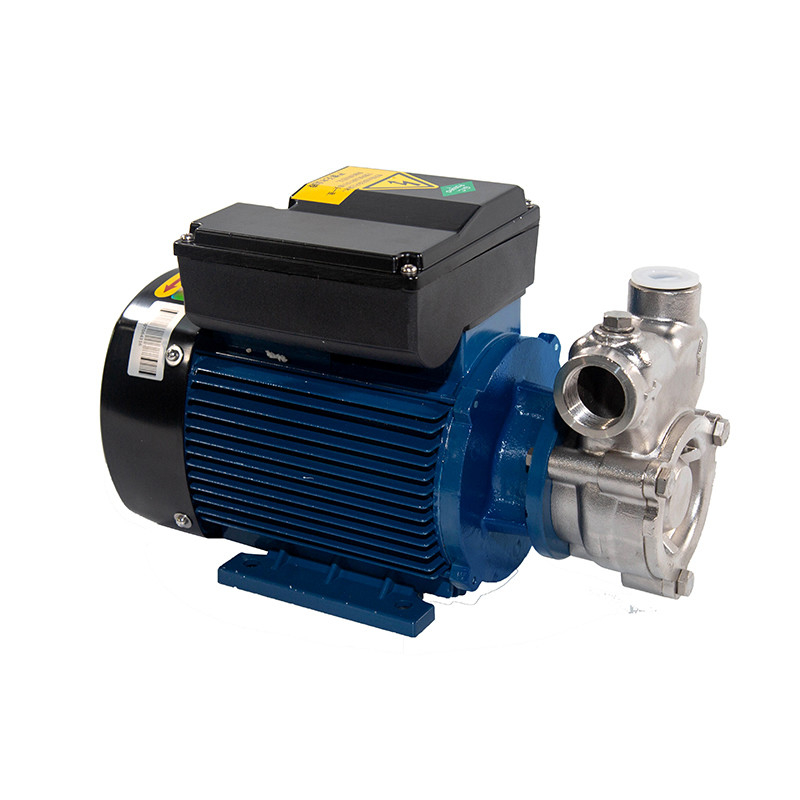

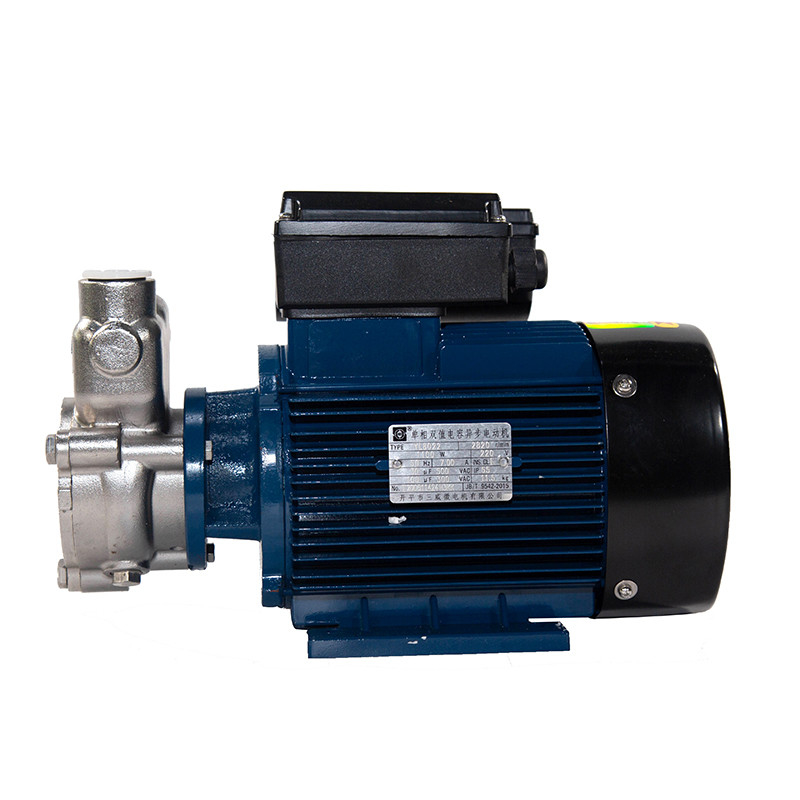

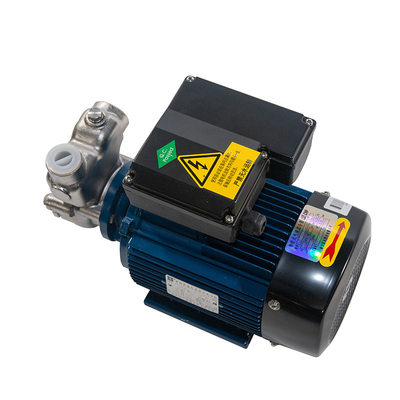

1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment

1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment

  • Water Flow Rate
    1-50T/h
  • OEM
    Available
  • Application
    Swimming Pool;aquaculture;wastewater;drinking Water
  • MOQ
    1 Set
  • Keywords
    Micro Bubble Pump;micro Bubble Generator Pump
  • Place of Origin
    China
  • Brand Name
    OzoCenter
  • Minimum Order Quantity
    1 set
  • Price
    USD 520-7500 per set
  • Packaging Details
    Wooden Case
  • Delivery Time
    5-8 working days
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    100 Sets per month

1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment

304ss mixed flow pump nano bubble liquid mixing pump
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 0
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 1
Micro bubble is a new kind of mixing technology. It can mix gas and water. The gas can be any gas, such as oxygen, ozone.
High gas liquid mixing efficiency with micro bubble 20-30 microns. It is three times more efficient than venturi .

Features:
Product Featrues:
1. Water flow rate:1T/Hr to 50T/Hr
2. Micro bubbles size 20~30microns for gas water mixing
3. Used with SS304 or 316L material mixing tank for impoving mixing efficiency(OEM)
4. 220V/380V are available, when you make order pls kindly note us the voltage you need, thanks.

Applications:
1. Aeration systems
2. Oxygen injection
3. Ozone injection
4. Aquaculture - fish farming
5. Spa bath systems
6. Microbubble
7. Waste water treatment plants
8. Paper mill process water recycling etc.
9. DAF System


Model No.
Water flow rate
(T/Hr)
Motor parameters
Max.lift head(m)/
Flow rate
(L/min;m³/h)
The flow rate of
40 meters lift head(L/min;m³/h)
Resistant material maximum surface temperature(℃)

20WSCO4

1T
220/50HZ
0.37KW
2 level IP55
45m
12L/min
0.72m³/h
14L/min
0.84m³/h
120

25WSCO7

2T
220/50HZ
0.75KW
2 level IP55
50m
17L/min
1.02m³/h
25L/min
1.5m³/h
120

32WSC15
3-4T
380/50HZ
1.5KW
2 level IP55
60m
35L/min
2.1m³/h
52L/min
3.12m³/h
120

40WSC22

5-6T
380/50HZ
2.2KW
2 level IP55
50m
82L/min
4.92m³/h
102L/min
6.12m³/h
120

50WSP2-75

10-15T
380/50HZ
7.5KW
4 level IP55
80m
50L/min
3.0m³/h
150L/min
9m³/h
180

65WSP11

25-30T
380/50HZ
11KW
4 level IP55
60m
300L/min
18m³/h
500L/min
30m³/h
180

80WSP22

45-50T
380/50HZ
22KW
4 level IP55
60m
650L/min
39m³/h
850L/min
51m³/h
180
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 2
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 3
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 4
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 5
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 6
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 7
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 8
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 9
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 10
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 11
Guangzhou OSUNSHINE Environmental Technology Co., Ltd., based on the parent company of Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on Ozone generator, Oxygen machine, Sodidum Hypochlorite generator, Ozone tube, Titanium anode plate, accessories production, development and application of products etc.
With the development for several years, the company has been in 16 aspects of the ozone generator. Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories.
The core types of ozone generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe, North and South America, Southeast Asia, Middle East, Africa and dozens of countries.

Our Services & Strength
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
2,Our company with rich experience about ozone generator and oxygen machine use for air purification and water treatment, gets ISO certification every year.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material,the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 12
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 13
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 14
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 15
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 16
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 17
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 18
Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 19
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 20
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 21
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 22
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 23
Q1: Are you trading company or manufacturer ?
Re:We are a company integrating factory and trade

Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C

Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
1-50T/Hr 304ss mixed flow pump nano bubble mixing pump for water treatment 24
