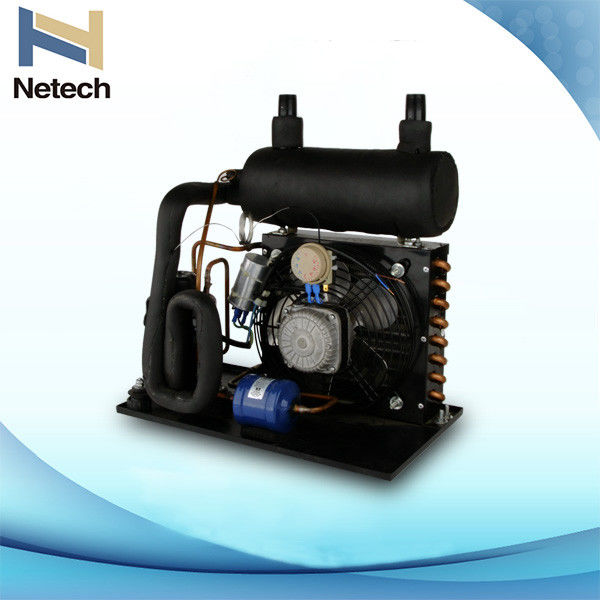

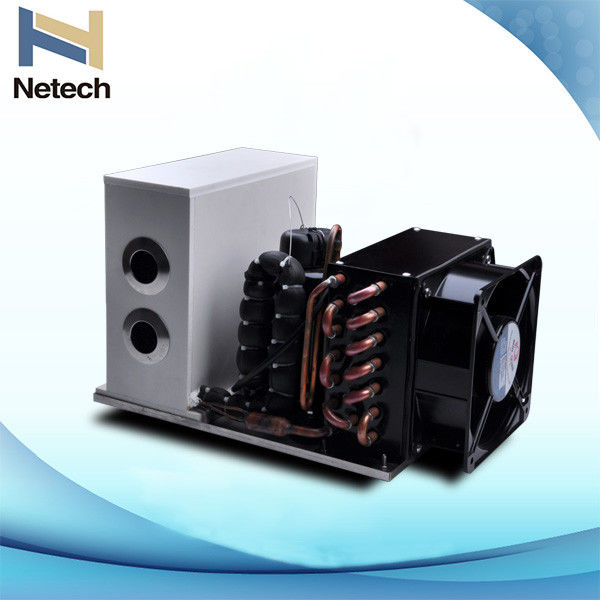

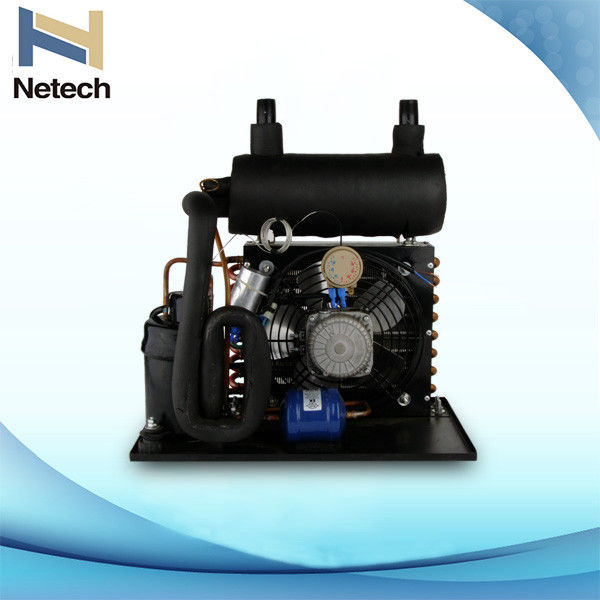

220V Air cooling refrigerated compressed air dryer for ozonator air purifier water treatment

220V Air cooling refrigerated compressed air dryer for ozonator air purifier water treatment

  • High Light

    molecular sieve zeolite

    ,

    refrigerated air dryer

  • Place of Origin
    China
  • Brand Name
    Netech
  • Model Number
    NT-5SG
  • Minimum Order Quantity
    1 set
  • Packaging Details
    with froth in carton or wooden case
  • Delivery Time
    3 to 5 days
  • Payment Terms
    Paypal,T/T,Western union,credit card
  • Supply Ability
    1000 per weeks

220V Air cooling refrigerated compressed air dryer for ozonator air purifier water treatment

220V Air cooling refrigerated air dryer for ozonator air purifier water treatment







Quick Detail

Refrigerant dryer

1.C apacity: 0.5Nm 3 / min

2. air cooling system

3. Inlet & Outlet Diameter: R1/2

4. cheap price



Description

Warranty                          1year

Type                                  factory

Diameter                            R1/2

Net Weight (KG)                20

cooling method                 air cooling

name Inlet &Outlet            Refrigerant dryer

application                        2 Indoor air control ozone generator

Size (MM):                        530*350*450

Voltage                             220V/ 50Hz or 110V/60Hz

New Technology               Refrigerating dryer before air compressor to prolong compressor life



OPERATION INSTRUCTION

1. Before use this machine,put it in a stable flat place which can hold its weight.

2. Use the power equipped with the machine;

3. The machine use for air purification,fisrtly attach the silicone tube into the

ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5.When use for room air purification, it requires nobody is present,after 30 minutes

people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone tube

and put into the water.

7. Attention, the machine should be placed higher than the water,in case that the

water reflux occur.



Product Specification
Automatic air dryer

Working time:0~12 hours

Drain hot water time: 2 hours

Rest time:30 Min

CH-5SG Refrigerant dryer

Cooled type: Air Cooling

Treatment Capacity: 0.5Nm3/ min

V/Hz :1ph22050

Compressor Power (KW): 0.2

Fan motor (W): 40

Inlet &Outlet Diameter: R1/2

Size (MM): 530*350*450

Net Weight (KG):20

CH-5SG Refrigerant dryer

Cooled type: Air Cooling

Treatment Capacity: 0.5Nm3/ min

V/Hz :1ph22050

Compressor Power (KW): 0.2

Fan motor (W): 40

Inlet &Outlet Diameter: R1/2

Size (MM): 530*350*450

Net Weight (KG):20

Refrigerant dryer

Cooled type: Air Cooling

Treatment Capacity: 50~200L/ min










Quality control



Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.



After sales service



We provide 12 months free maintenance.

The buyer should return the product in the original conditions to us and should

bear the shipping costs for return.
