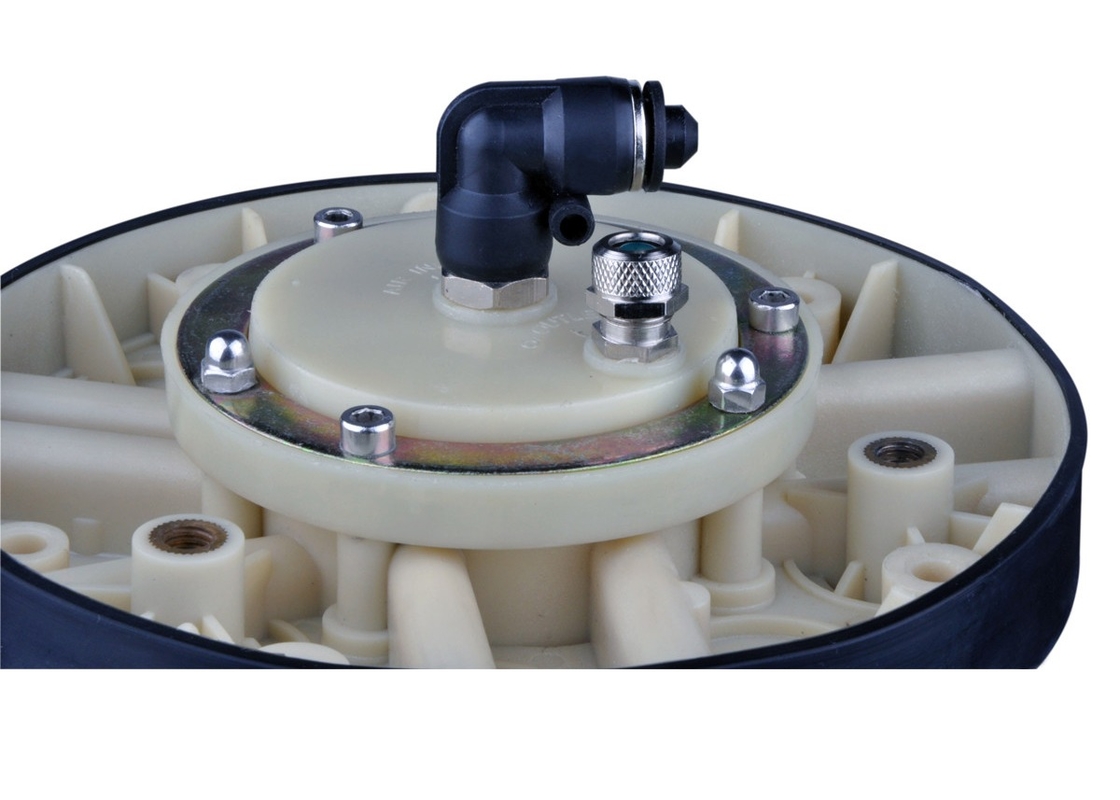

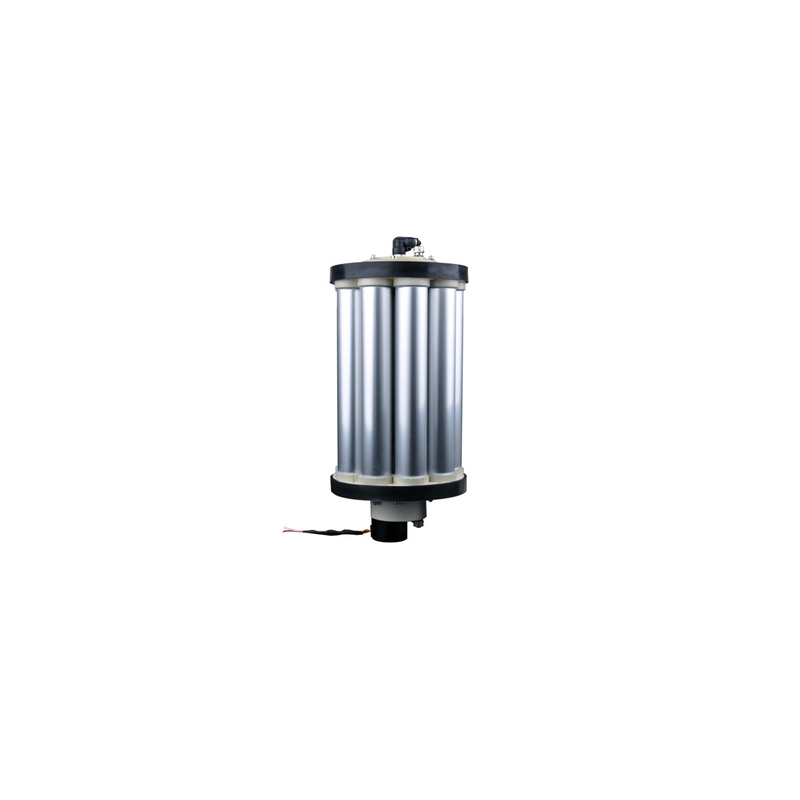

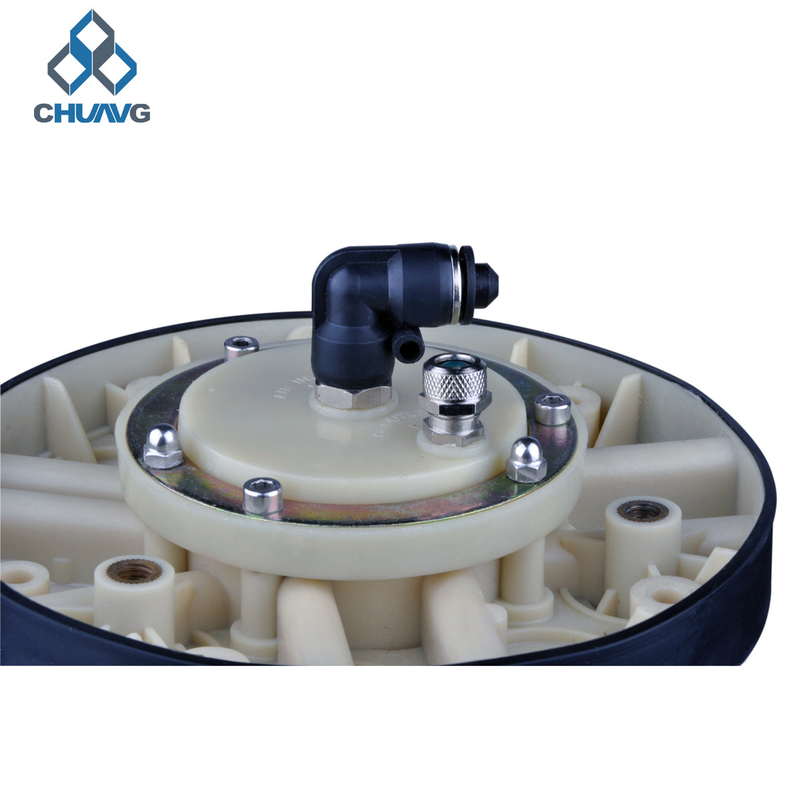

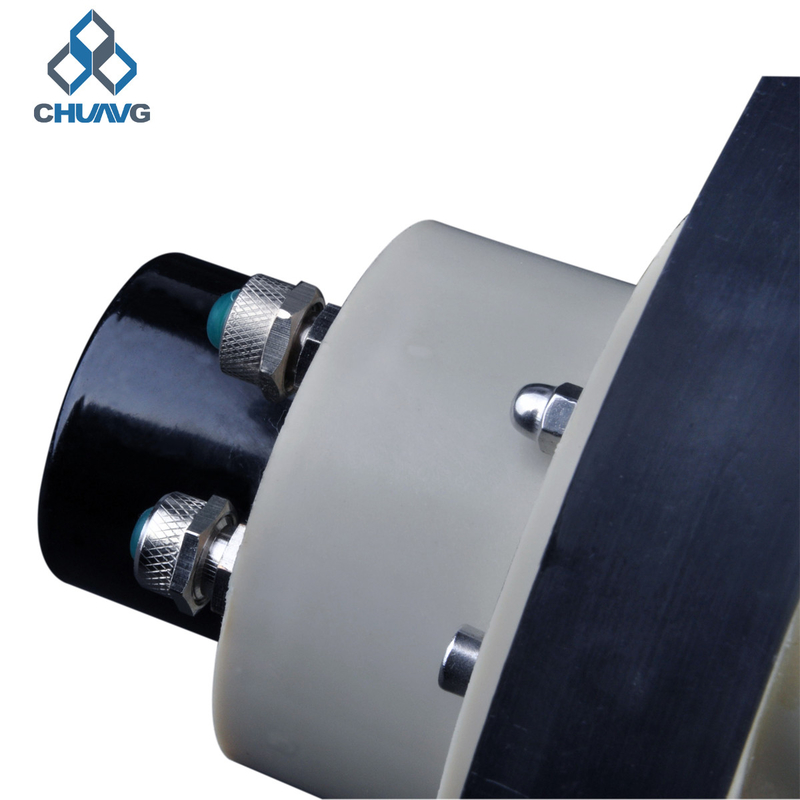

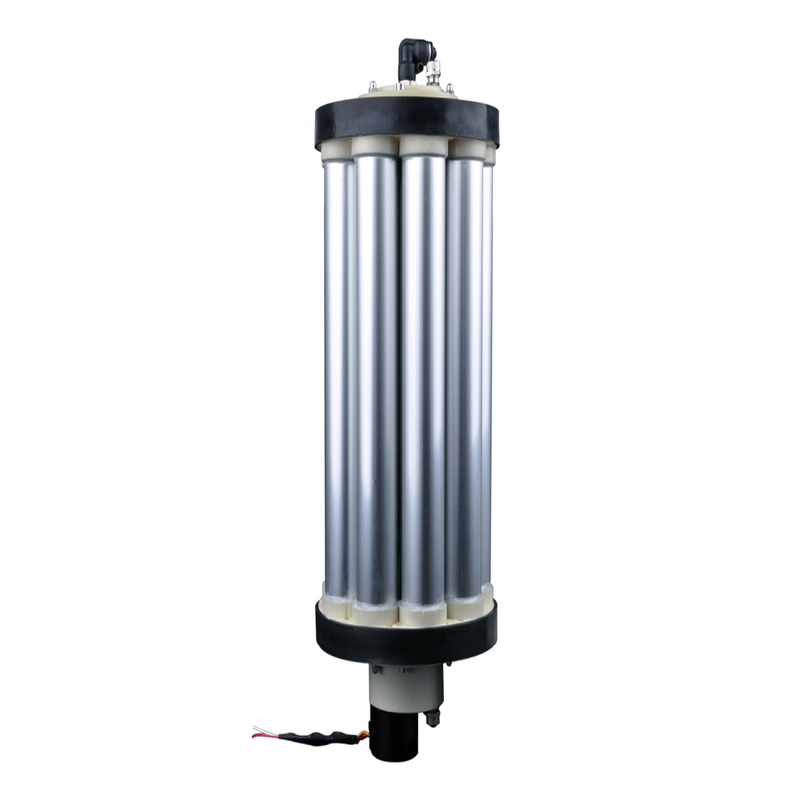

Tower molecular sieve for oxygen machine
Features:
Twelve towers oxygen concentrator is unique design, advanced technology, excellent service support
1. Rational construction
Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
2. Easy to control
Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit
combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more
convenient.
3. The oxygen output is stable and continuously
4. Low-pressure oxygen production working pressure 1.5-2 Bar.
5. Working Voltage 110V/220V is available.
Item | Unit | CHOX3AL | CHOX5AL | CHOX7AL | CHOX10AL | CHOX15AL |
Oxygen output | LPM | 3 | 5 | 7.5 | 10 | 15 |
Oxygen concentration | % | 90%±3% | 90%±3% | 90%±3% | 90%±3% | 90%±3% |
Air flow rate | LPM | 36-45 | 60-75 | 90-115 | 90-115 | 180-200 |
Pressure(inlet) | Mpa | 0.14-0.18 | 0.14-0.2 | 0.15-0.21 | 0.18-0.25 | 0.35 |
Pressure(outlet) | Mpa | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 |
Temperature | ℃ | indoor temperature | ||||
Relative humidity | % | ≤ 70%±10% | ||||
Noise | Db | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
Dimension | mm | Ф200×310 | Ф200×430 | Ф200×500 | Ф200×560 | Ф200×880 |
Net weight | kg | 15.70 | 18.30 | 19.30 | 30.60 | 32.5 |
