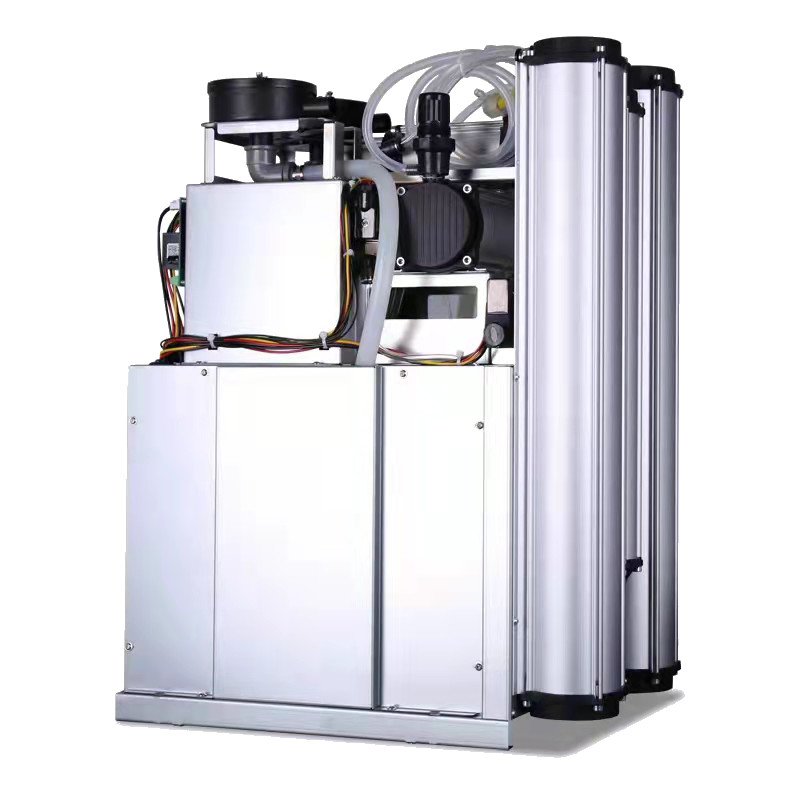

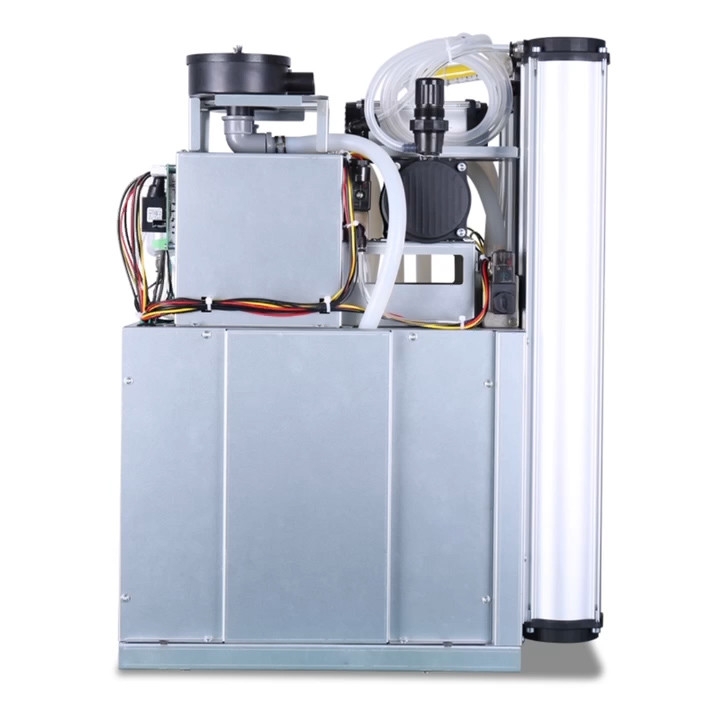

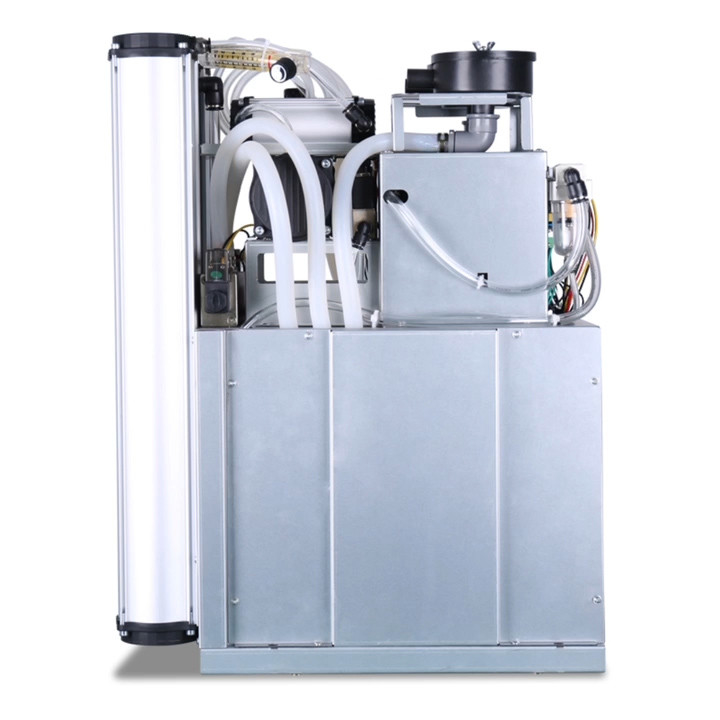

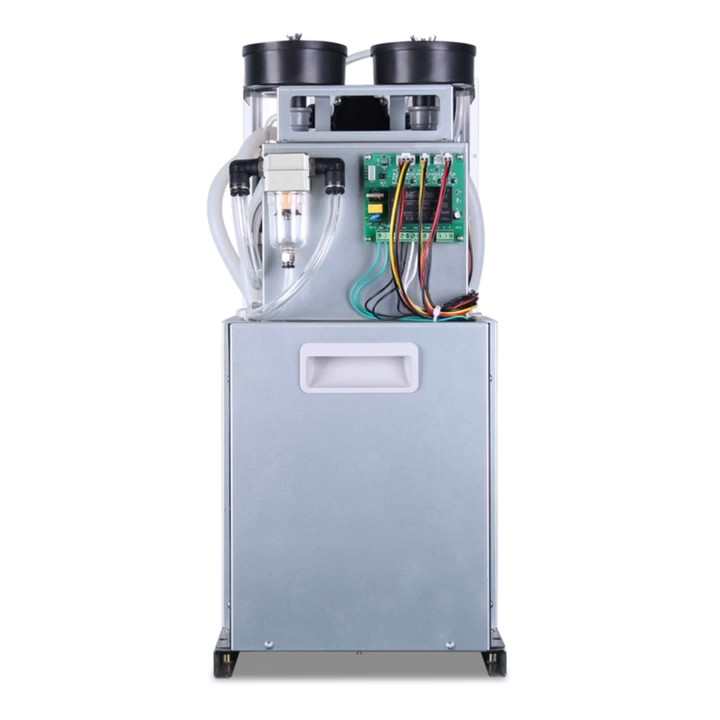

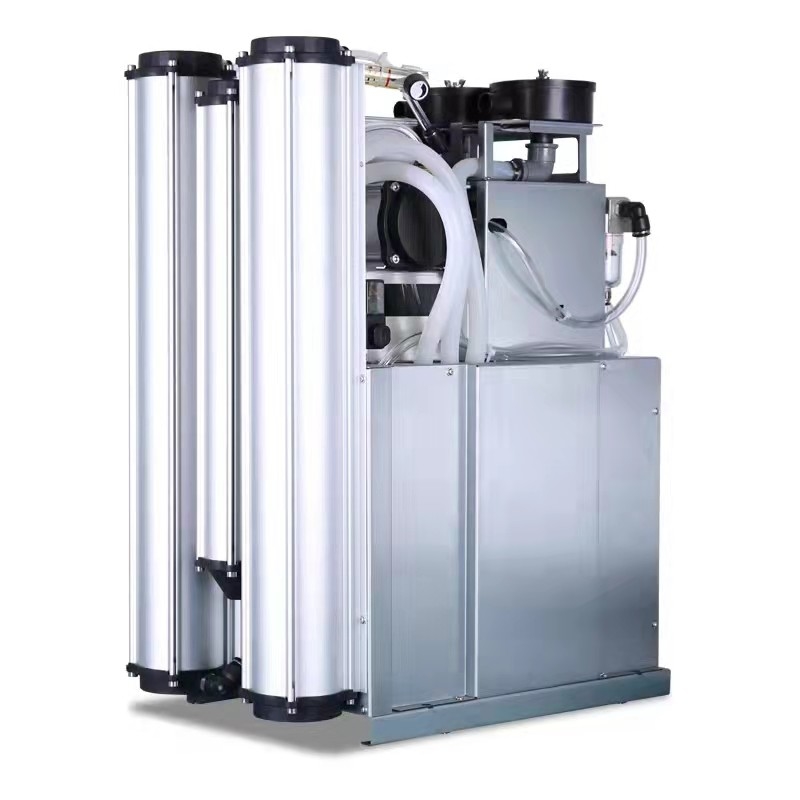

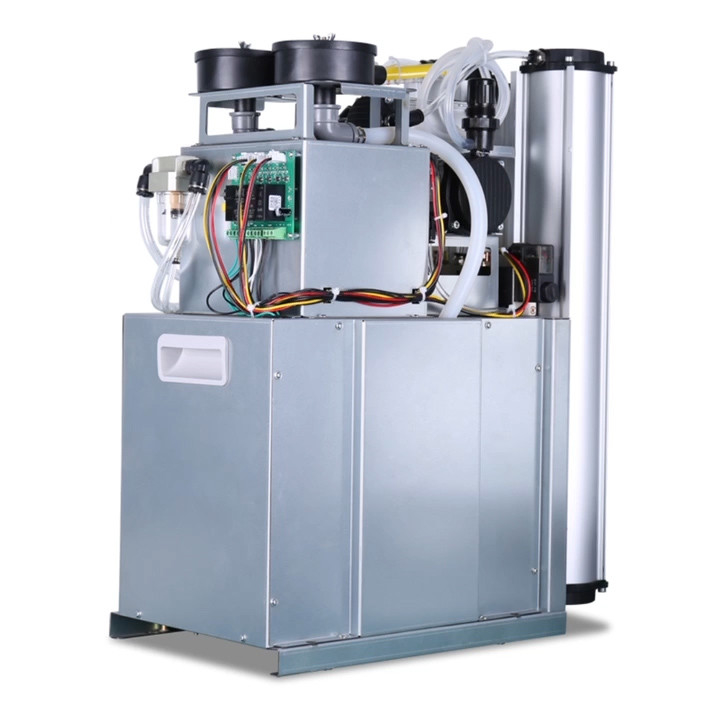

8-10LPM psa oxygen gas generator with air compressor and chiller
Introduction:
* The model of HY-GOX ( Integrated 2 tower oxygen molecular sieve concentrator) is specially used for equipment to supply oxygen source.
* It is prepared by the principle of high-efficiency molecular sieve PSA.
* It uses air as raw material, molecular sieve as adsorbent, and uses the principle of pressure swing adsorption to separate oxygen and nitrogen in the air. .
* Stable and reliable work, low working noise,
* It can be used independently or built into the ozone equipment system.
Features:
* Adopting double-row condensing radiator and powerful cooling fan, so that the high-temperature gas from the compressor can quickly form condensate droplets and be discharged.
* The multi-stage automatic water filtering function of the water filter and the dryer can fully filter the water in the compressed gas and greatly extend the service life of the molecular sieve.
* Powerful heat dissipation at the bottom and condensation technology at the top of the air compressor ensure that the air compressor can run for a long time without getting hot.
* High-efficiency molecular sieve material, which is stable and durable in operation.
* This parts is manufactured according to the standard of medical oxygen generator, with high oxygen concentration, low machine vibration and low noise.
Product name | / |
Integrated 2 tower oxygen molecular sieve concentrator |
Oxygen output |
LPM |
3LPM, 5LPM, 8LPM, 10LPM |
Working Voltage | V/Hz | 110V/60Hz or 220V/50Hz |
Operating Power | W |
≤820 |
Oxygen output pressure |
KPa |
≥40 |
Net weight |
Kg | 16.5-30 |
Dimension | mm |
460*260*586 mm |
