Air Compressor Ozone Generator For Swimming Pool , cleanor PSA Oxygen Plant

Air Compressor Ozone Generator For Swimming Pool , cleanor PSA Oxygen Plant

Quick details

Brand Name:              Netech

Model Number:           NT-YFC

Certification:               domestic
Ozone output way:      air cooling

Warranty:                    one year warranty
Adjustable rate:           20-100% adjustable ozone

how to use ?

2. Use the power equipped with the machine;

3. The machine use for air purification, firstly attach the silicone tube into the

ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5. When use for room air purification, it requires nobody is present , after 30

minutes people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone

tube and put into the water.

 7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.

Features:

1. Carbon steel sprayed with plastic housing;

2. Built-in PSA high purity twelve tower oxygen sieve;

3. Built-in of product –Air cooling Ceramic ozone tube with high frequency electric board, high ozone concentration and stable ozone capacity, long life time;

4. Built-in Oil-free air compressor;

5. Built-in Air dryer and filters. To supply cool, dry, clean air source for air compressor and PSA oxygen concentrator;

6. Manual control, easy operation and maintenance.

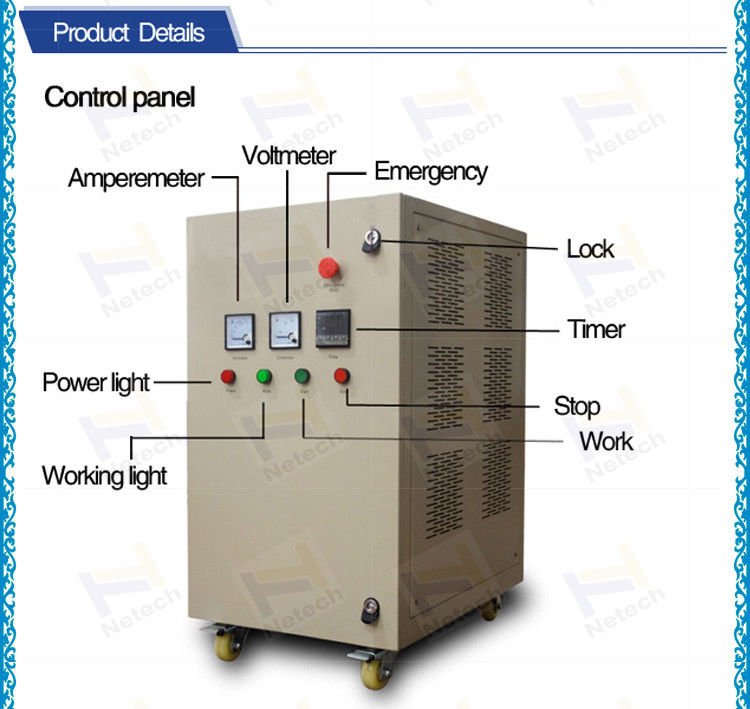

Control panel:

Voltmeter, Ammeter, Timer, Ozone Ammeter, Main switch, Power supply switch, Emergency stop, working light, Power light, Alarm

Control protection:

Over current protection

Electric leakage protection

Short circuit protection

Over heat of air compressor protection

Time delay system protection

Application

1. treatment industry: clean sick room, operating room, treatment equipment, aseptic room, etc;

2. Laboratory: industrial oxidation of flavor and pharmaceutical intermediate;

3. Food processing industry: keep fruits and vegetables fresh and cold storage; rice & wheat storage; or storage room air clean.

4. Sea food factory: Remove smell of sea food factory and kill bacteria;

5. Slaughtering: Remove smell of slaughtering and kill bacteria;

6. Poultry factory: Remove smell of poultry factory and kill bacteria;

7. Green house: air clean and kill bacteria.

8. Agricultural: fish farm water treatment

9. Swimming pool water treatment

10. Drinking water treatment

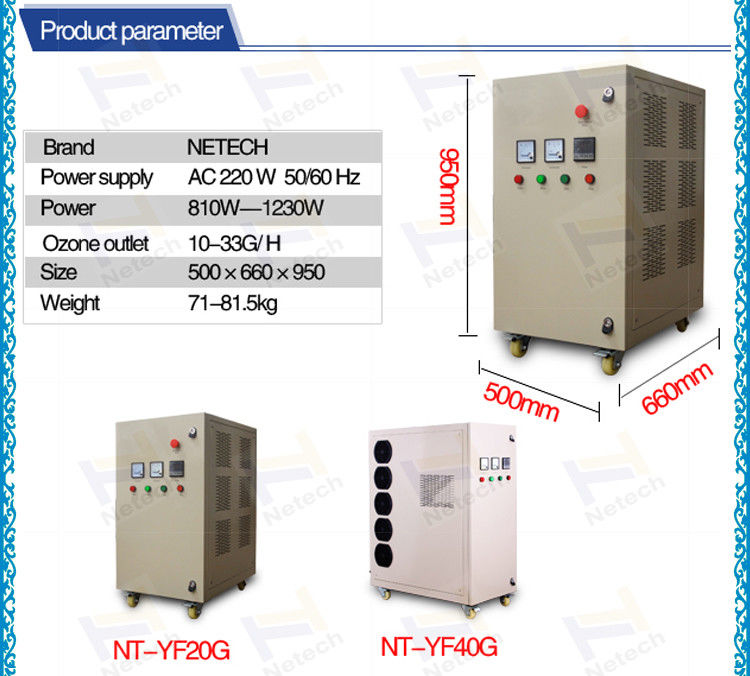

Specifications

Noted:

1. Above ozone capacity were tested under oxygen source

2. Net weight will be 10% different for different plug

Quality control

Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.

After sales service

We provide 12 month free maintenance.

The buyer should return the product in the original conditions to us and should

bear the shipping costs for return.
