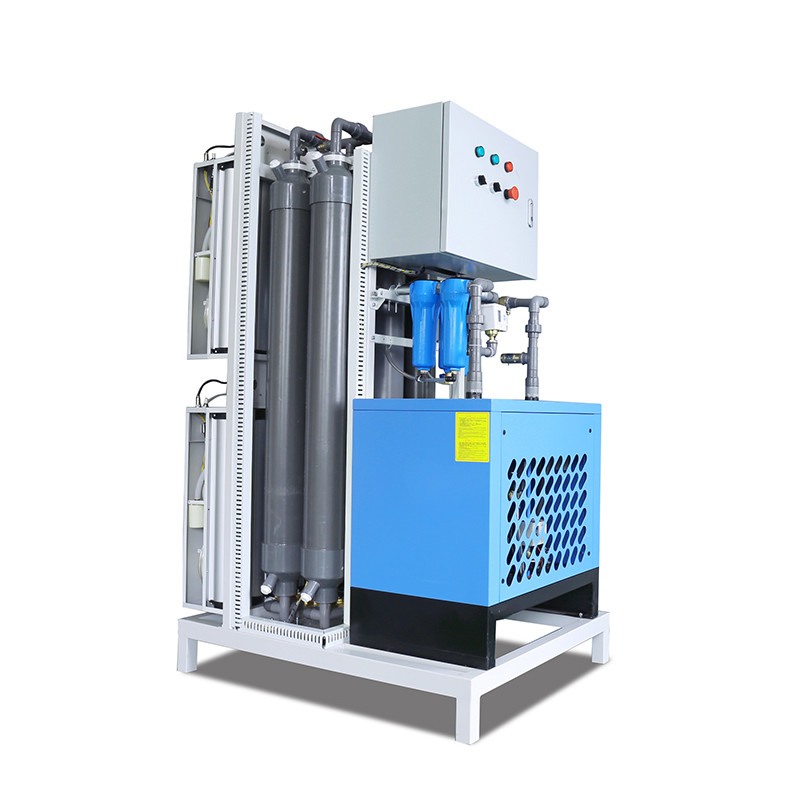

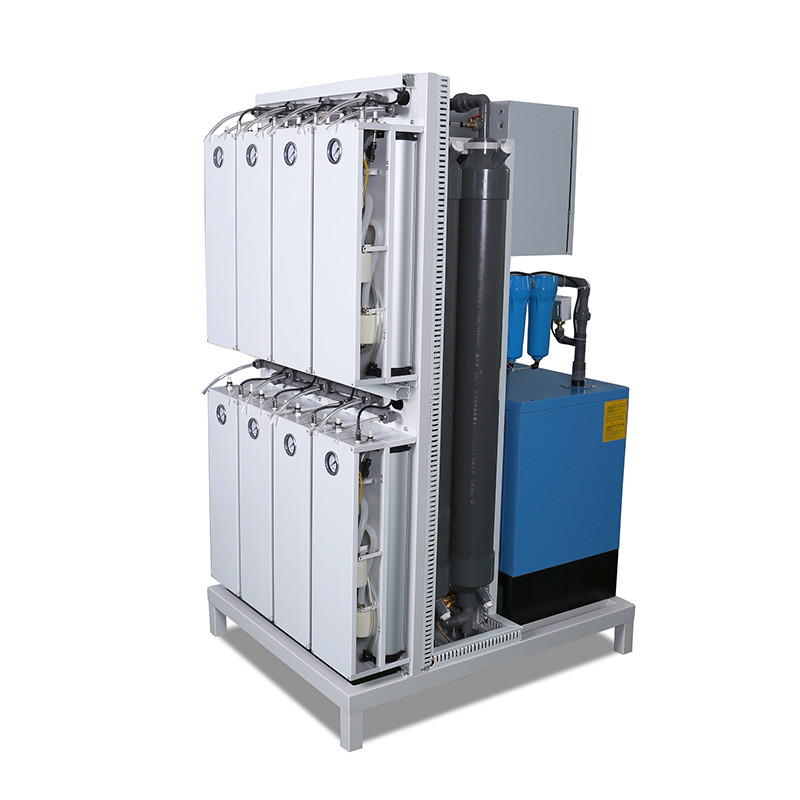

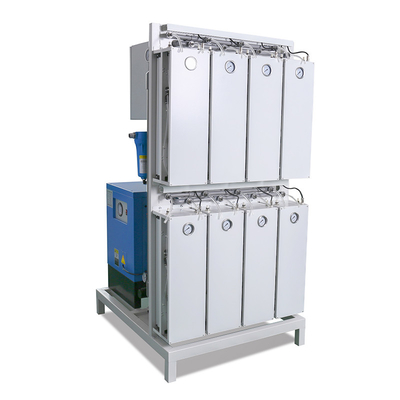

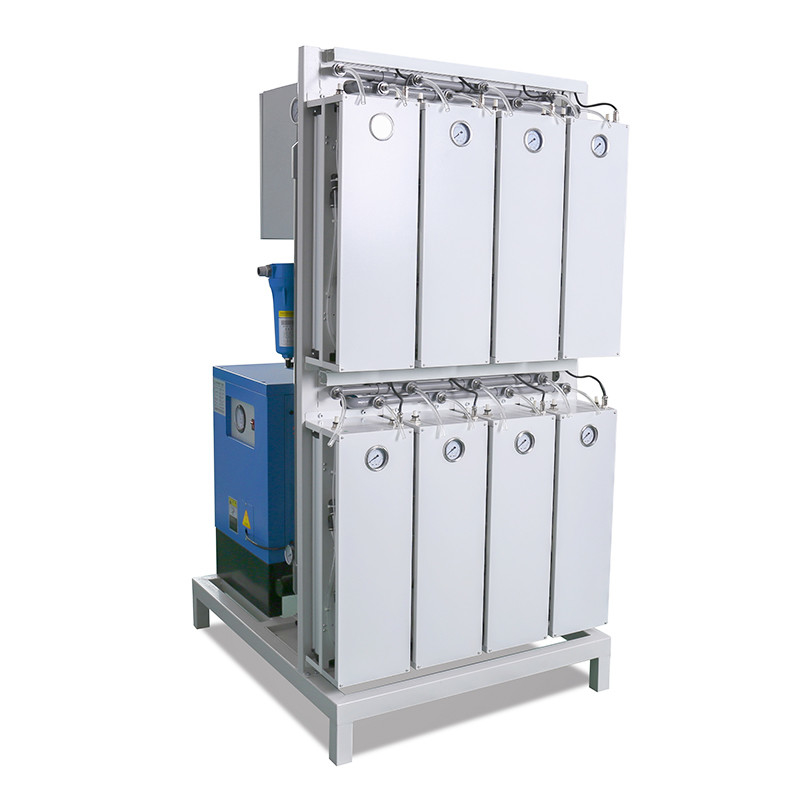

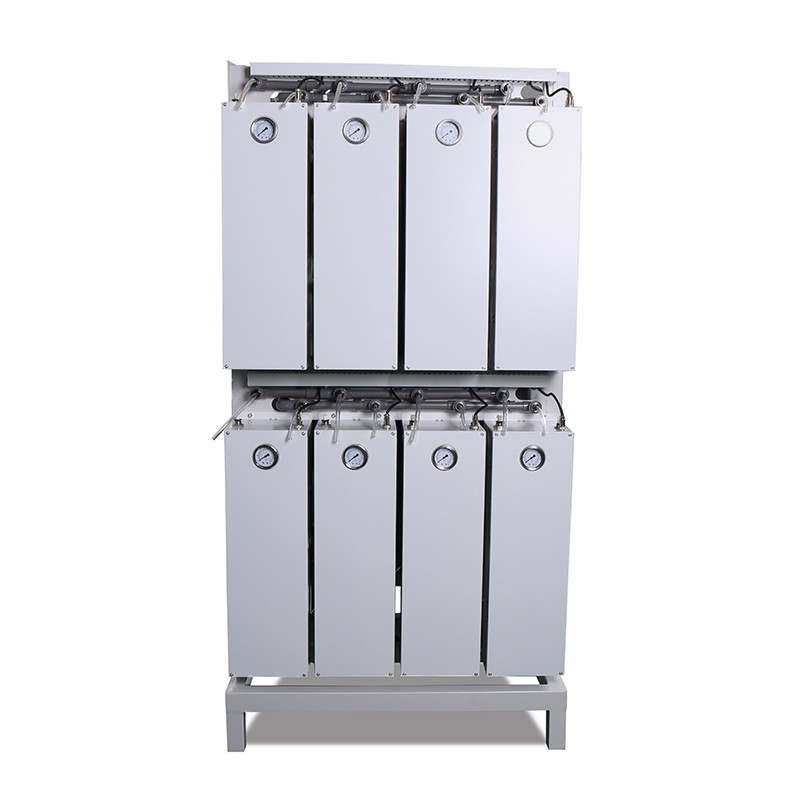

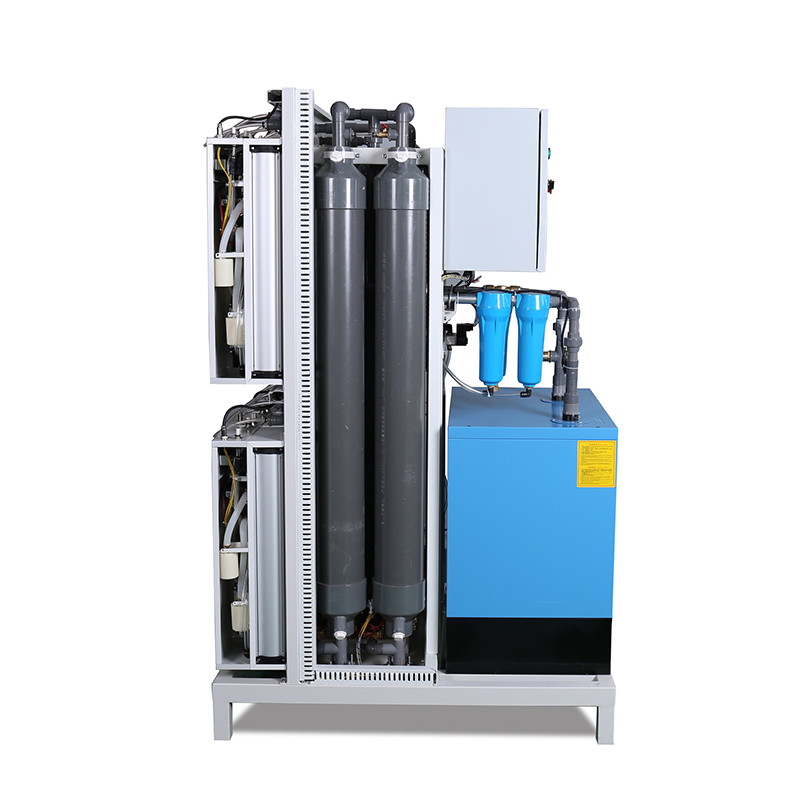

100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower

100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower

  • High Light

    Molecular Purity Oxygen Concentrator

    ,

    100Lpm Purity Oxygen Concentrator

    ,

    100Lpm Oxygen gas generator

  • Product Name
    Oxygen Gas Generator
  • Output
    40-100lpm
  • Voltage
    220v
  • Application
    Water Treatment / Ozone System
  • Material
    Carbon Steel
  • Place of Origin
    Guangzhou
  • Brand Name
    ozocenter
  • Certification
    ISO
  • Minimum Order Quantity
    1
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1 unit per week

100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower

Industrial Oxygen Molecular Sieve Adsorption Tower Oxygen Gas Generator
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 0
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 1

Introduction: 1. Built-in oil free air compressor 2. Built-in refrigerated air dryers 3. High efficiency PSA oxygen

generate unit 4. Oxygen concentration: 90%±3% 5. Pressure of oxygen outlet: ≤0.1 MPA 6. Control: Door lock,

Amp-meter, Working indicator, Power indicator, On/Off, Oxygen flow meter, Voltmeter, Oxygen outlet, Fuse, Power

input Advantage of Oxygen concentrator: 1. Low working temperature of air compressor ,thus extending service life

of air compressor 2. Built in Small refrigerated air dryer ,thus oxygen concentrator is compact . 3. Oxygen concentrator

feed dry, cool ,clean air ,thus extending service life 4. stable oxygen output ,high oxygen purity.



Item
Oxygen machine
Oxygen concentration
90%±3%
90%±3%
90%±3%
90%±3%
Oxygen flow rate
≥30L/min
≥40L/Min
≥50L/min or
60L/min
≥70L/min or 80L/min
Input voltage
AC220V/50Hz
AC220V/50Hz
AC220V/50Hz
AC220V/50Hz
Power
≤2900W
≤3800W
≤800W
≤800W
Oxygen outlet pressure
≥40Kpa
≥40Kpa
≥40KPa
≥40KPa
Working noise
≤48dB(A)
≤48dB(A)
≤48dB(A)
≤48dB(A)
Ambient temperature
5-45℃
5-45℃
5-45℃
5-45℃
Ambient humidity
≤80%RH
≤80%RH
≤80%RH
≤80%RH
Size
600x450x1350mm

650x1000x1600mm
800x1100x1600mm
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 2
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 3
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 4
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 5
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 6
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 7
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 8
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 9

Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on Ozone

generator, Oxygen machine , Ozone tube, accessories production, development and application of products.

With the development for several years, the company has been in 16 aspects of the ozone generator.
Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and
foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone
generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe,
North and South America, Southeast Asia, Middle East, Africa and dozens of countries.
Our Services & Strength
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
2,Our company with rich experience about ozone generator and oxygen machine use for air purification and water treatment,
gets ISO certification every year.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode,
which are best anti-oxidation material,the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 10
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 11
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 12
Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing
and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 13
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 14
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 15
100lpm Purity Oxygen Concentrator Gas Generator With Molecular Sieve Adsorption Tower 16
Q1: Are you trading company or manufacturer ?
Re:We are a company integrating factory and trade

Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C

Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
