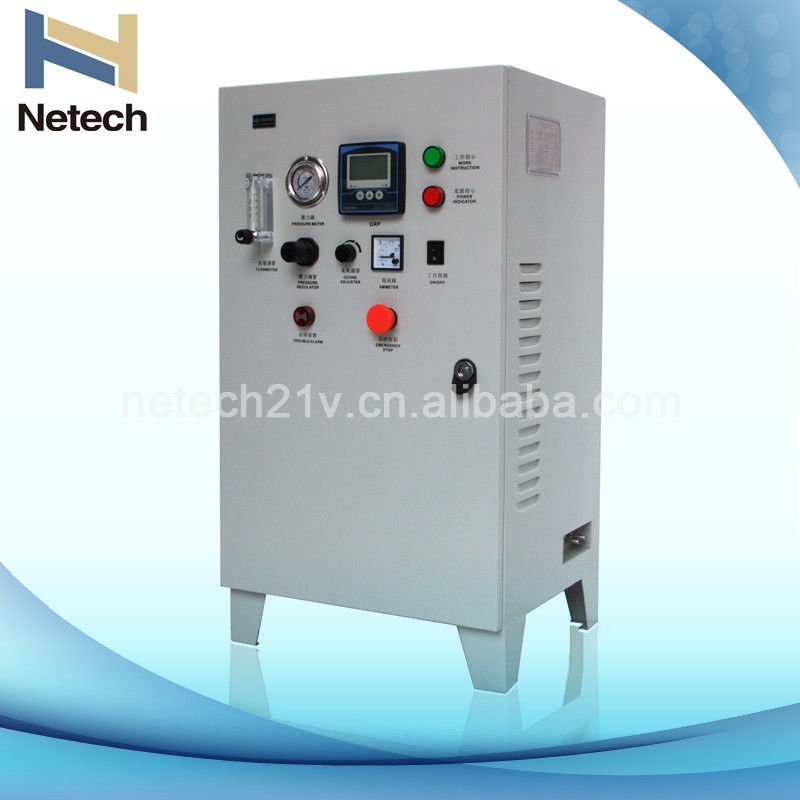

Double Water Cooling System Stable Ozone Machine for Aquaculture

Place of Origin Guangdong China
Brand Name Netech
Model Number NT-WZQP
Minimum Order Quantity 1 set
Price $ 1643 - $ 2630
Packaging Details Safe double carton package with foam inside for protection
Delivery Time 1-7 working days after received your payment
Payment Terms L/C D/A D/P T/T Western Union Credit Card/ Paypal
Supply Ability 1000 sets per month
Product Details
Adjustable Range 20%-100% Cooling Way Water Cooling
Ozone Output 10g 20g 30g 40g 50g/hr Material Enamel
Commodity Ozone Water Purifier Size 460*390*840mm
Timer 0-30 Mins Or Working Continuously Functions Clean, Detoxication, Remove Odor...
High Light

ozone generator for fish farm

,

ozone generator water purifier

Leave a Message
Product Description

Double Water Cooling System Stable Ozone Machine for Aquaculture









         Quick Details



Brand NameNetech
Model NumberNT-WZQP
CertificationDomestic
Ozone Output WayWater Cooling
WarrantyOne Year Warranty
Ozone ConcentrationHigh Concentration





    How To Use ?



1. Before use this machine, put it in a stable flat place which can hold its weight.

2. Use the power equipped with the machine;

3. The machine use for air purification, firstly attach the silicone tube into the

ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5. When use for room air purification, it requires nobody is present , after 30

minutes people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone

tube and put into the water.

7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.



  Applications:



Drinking water treatment, Spring water treatment ozone generator, Vegetable and fruits wash machine, Chemical oxidation, Decolour and bleach ozone machine, Ocean Ranch equipment, Ocean Ranch ozone generator, Aquaculture water clean ozone generator, Aquaculture equipment, Remove alga equipment, Aquaculture ozone generator, Aquaculture recycle water treatment equipment, Raw water aquaculture equipment, Connect with outside gas feeding ozone generator, Nursery aquaculture equipment





     Features:



1. SS housing / carbon steel sprayed with plastic housing

2. It must connect with outside oxygen generator or oxygen tank

3. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time

4. Small in size, adjustable ozone range: 20%--100%

5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety


  Control Panel:



Ozone output adjuster, Flow meter , Pressure regulator, Voltmeter, Ammeter, Switch, Emergency stop, Working light, Power light, Alarm,ORP




  NT-WZQP
  Specifications


ItemUnitNT-WZQP
10G20G30G40G50G
Oxygen flow rateLPM1~32~73~105~108~18
Ozone concentrationMg/L69~8852~10456~9385~11660~90
Ozone outputG/Hr5~1212~2216~3334~5143~64
PowerW2202504005101300
FuseA33356
Cooling water flow rateLPM3048
Sizemm460×390×840





    Question And Answer

♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dead reported caused by ozone poisoning.
♦ Does the ozone generator work efficiently?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short time.


Quality Control



In order to ensure the best quality, every ozone generator has been strictly tested

before delivery.

We promise the good performance and all parts completely

according to your


  ABOUT US



Gold supplier--Guangzhou Netech Environmental Technology Co., Ltd ,15 years of experience in Water Treatment and Environment R&D and Engineering,

we are able to solve all your solutions in Environmental Protection and Water Treatment.


  QUALITY CONTROL

Every procedure has personnel inspection. All the products must be tested and qualified before packaging. AFTER SERVICE

We provide 12 month free maintenance. The buyer should return

the product in the original conditions to us and should bear

the shipping costs for return.

If any part is required to be replaced,the buyer should also pay for the costs of the parts to be replaced.



  PROMPT DELIVERY

1. 3-7 days for portable ozone generator/ozone generator spare parts order;

2. 10-30 days for industrial/middle size ozone generator order;

3. Shipping could be courier, airline or sea


   Package


A) Inner layer: plastic bag
B) Middle layer: EPE(Expandable Polyethylene)
C) Outer Layer: carton/composite wooden
